NEW Bandit 12XC Chipper-Hand Fed-12 Drum-Hyd Cyl-74 hp Mitsi Eng

Chipper-Hand Fed-12 Drum-Hyd Cyl-74 hp Mitsi Eng

Bandit 12XC Chipper – Specs

• Capacity: 12 in material diameter

• Drum Size: 20 in diameter × 13.25 in wide

• Knives: 2-knife drum

• Feed Wheel: 15.75 in diameter × 15.875 in wide

• Feed Rate: Approx. 100 ft/min

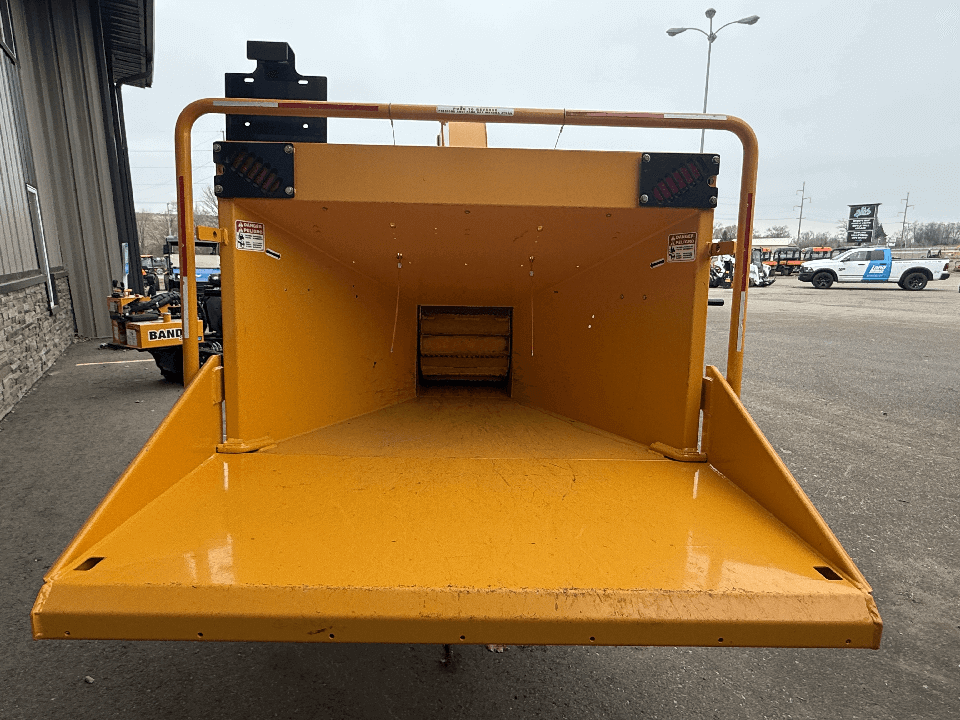

• Throat Opening: 12.5 in × 16.25 in

• Infeed Hopper: 30.75 in high × 54 in wide (with folding tray)

Engine & Fluids

• Horsepower Options: 49.4 – 74 hp (gas or diesel)

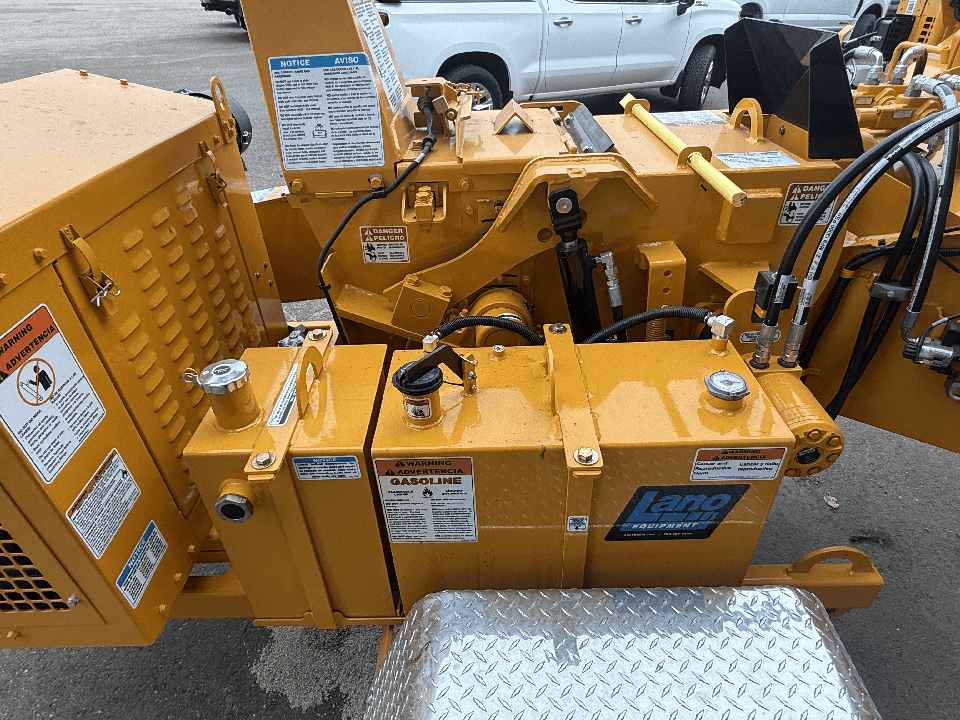

• Fuel Tank: 18 gal

• Hydraulic Tank: 8 gal

Dimensions & Weight

• Overall Length: 191 in

• Overall Width: 79 in

• Overall Height: 100 in

• Weight: 4,400 – 4,800 lbs (depending on configuration)

Discharge & Feed System

• Discharge Chute: 360° manual rotation with adjustable deflector

• Feed System: Single top feed wheel with adjustable down-pressure springs

• Optional: Hydraulic lift cylinder for added feed pressure

Tow & Running Gear

• Axle: Single 7,000 lb axle

• Tires: 235/80R16

• Towable: Yes — standard pintle-style tow setup
