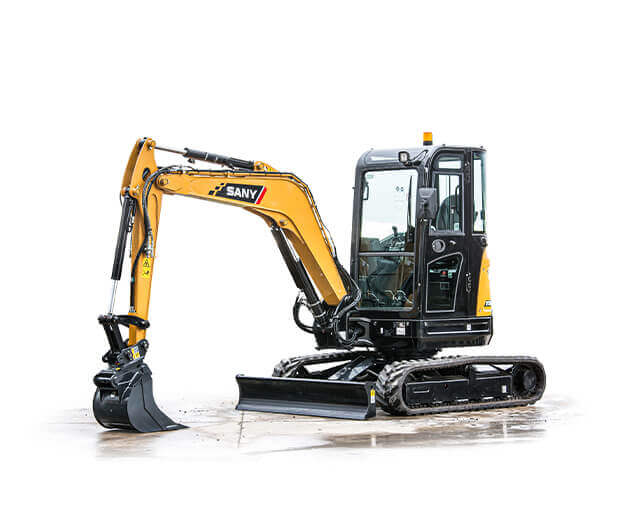

NEW Sany SY35U SANY EXCAVATOR, 24.4 HP, 8499LBS, RBBR TRK

SANY EXCAVATOR,ROPS, 24.4 HP,8499LBS,RBBR TRK

• Engine: Yanmar 3TNV88F diesel

• Emissions: Tier 4 Final

• Gross Horsepower: 24.4 HP

• Net Horsepower: approx. 23.3 HP

• Engine Displacement: 1.6 L

• Operating Weight: approx. 8,367 – 8,499 lbs (canopy vs cab)

• Tail Swing: Zero tail swing design

• Bucket Capacity: approx. 0.12 m³

• Bucket Breakout Force: approx. 6,385 lbs

• Stick Digging Force: approx. 4,114 lbs

• Maximum Digging Depth: 10 ft 2 in

• Maximum Dump Height: approx. 11 ft 4 in

• Maximum Reach at Ground Level: approx. 17 ft 11 in

• Minimum Swing Radius: approx. 8 ft 1 in

• Hydraulic System: Load-sensing with pilot controls

• Max Hydraulic Flow: approx. 23.2 GPM

• Auxiliary Hydraulic Flow: approx. 18.5 GPM

• Max Hydraulic Pressure: approx. 3,553 psi

• Travel Speed (Low): approx. 1.5 mph

• Travel Speed (High): approx. 2.7 mph

• Swing Speed: approx. 9 RPM

• Overall Length: approx. 16 ft 2 in

• Overall Width: approx. 5 ft 8 in

• Overall Height: approx. 8 ft 3 in

• Ground Clearance: approx. 11.6 in

• Fuel Tank Capacity: approx. 10.6 gallons

• Track Width: 12 in (300 mm)

• Standard Features

  • Zero tail swing

  • Swing boom

  • Angle blade / dozer blade

  • Rubber tracks

  • Pilot joystick controls

  • Load-sensing hydraulics
