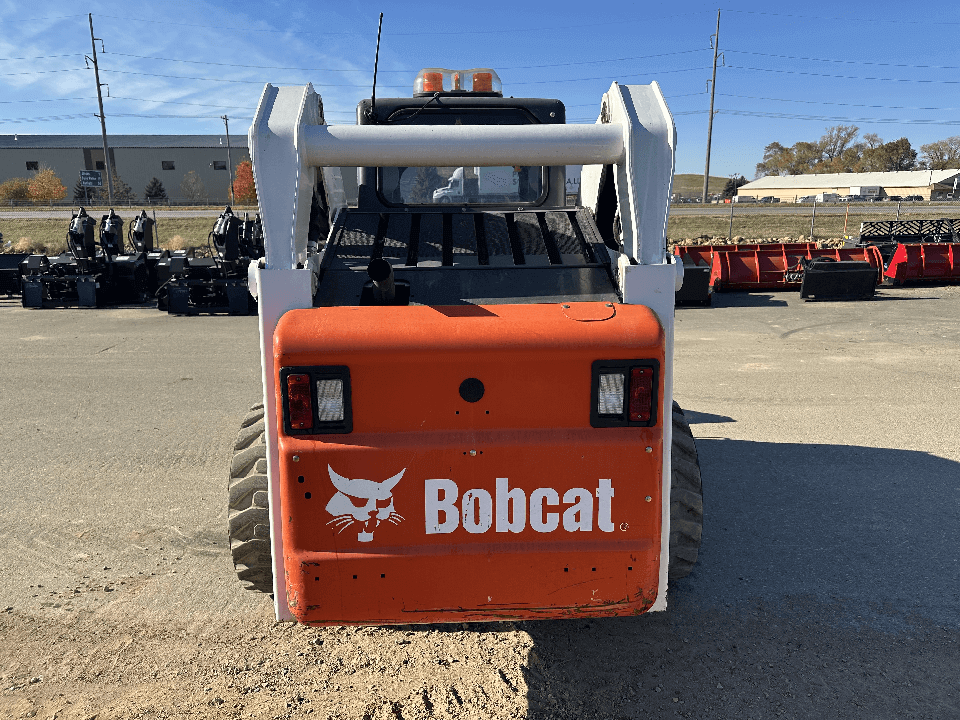

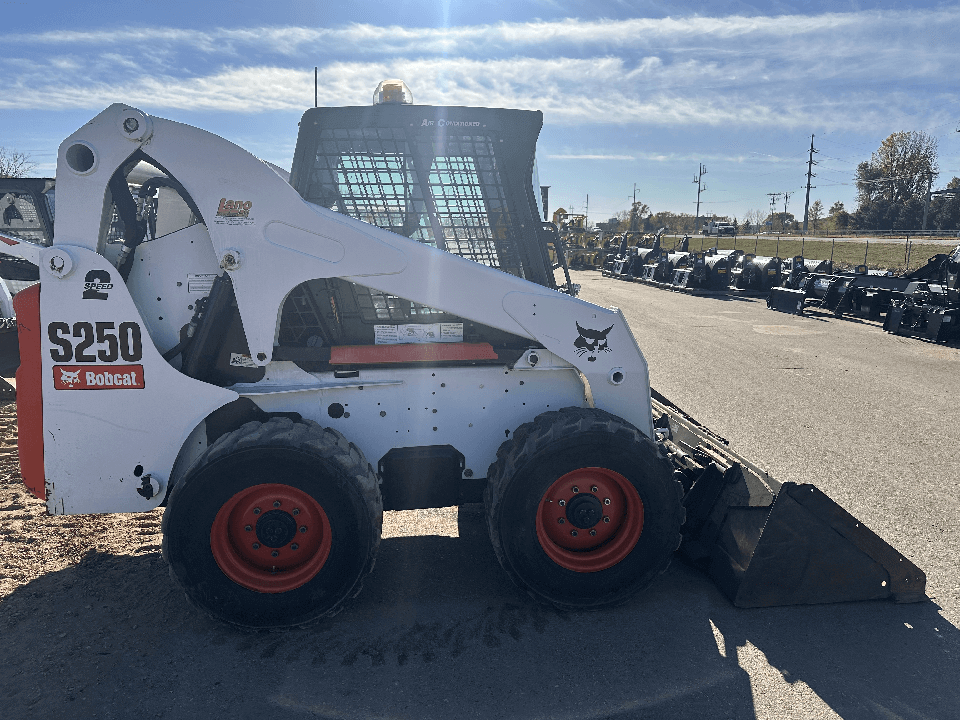

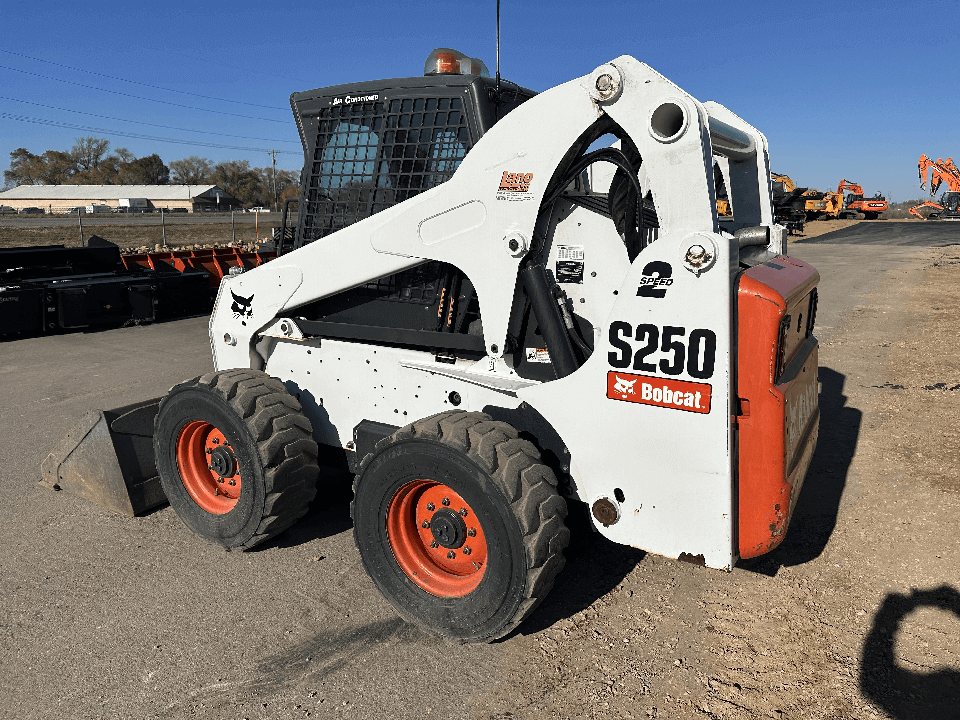

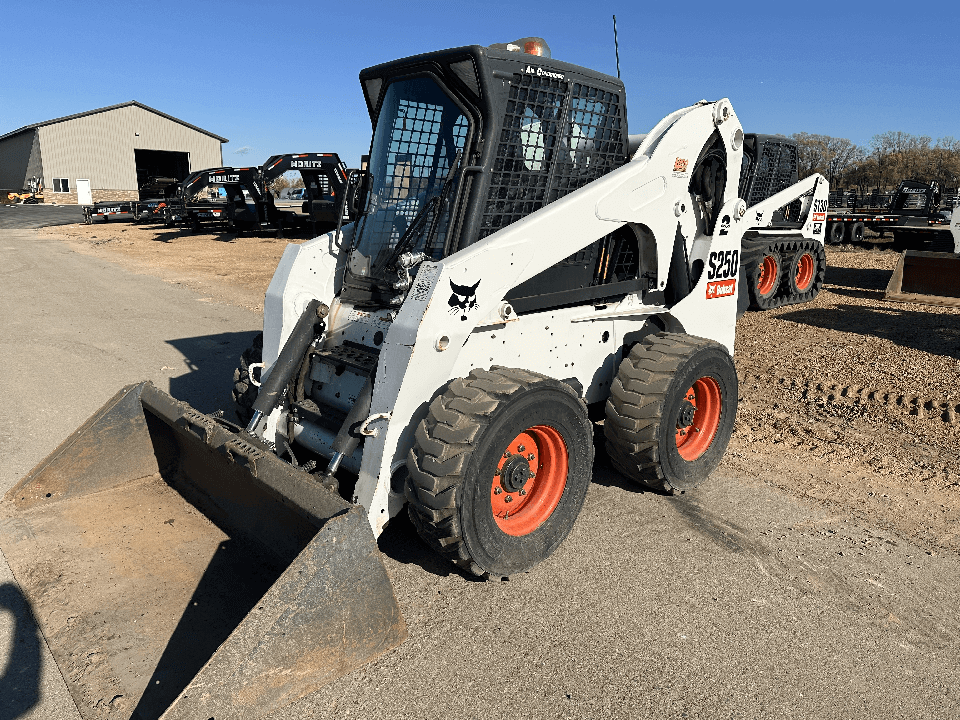

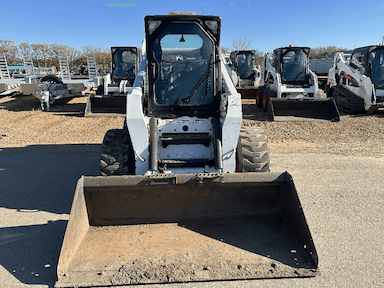

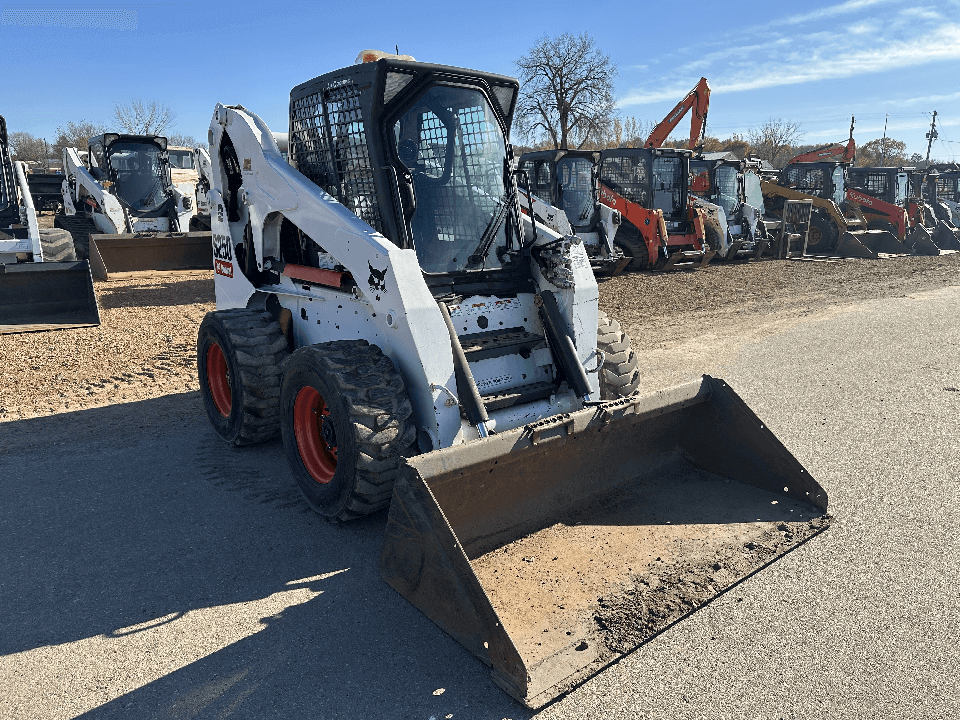

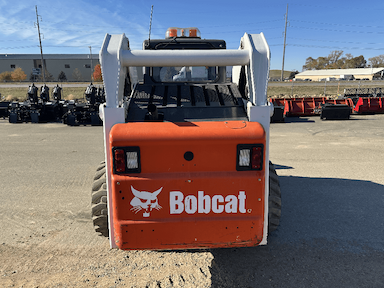

2008 Bobcat S250 Skid Steer Loaders 12421

SSL Loader- A71 pkg- High Flow- Bucket

• Rated Operating Capacity (SAE): 2,500 lb (1,134 kg)

• Tipping Load: 5,661 lb (2,564 kg)

• Operating Weight: 7,825 lb (3,549 kg)

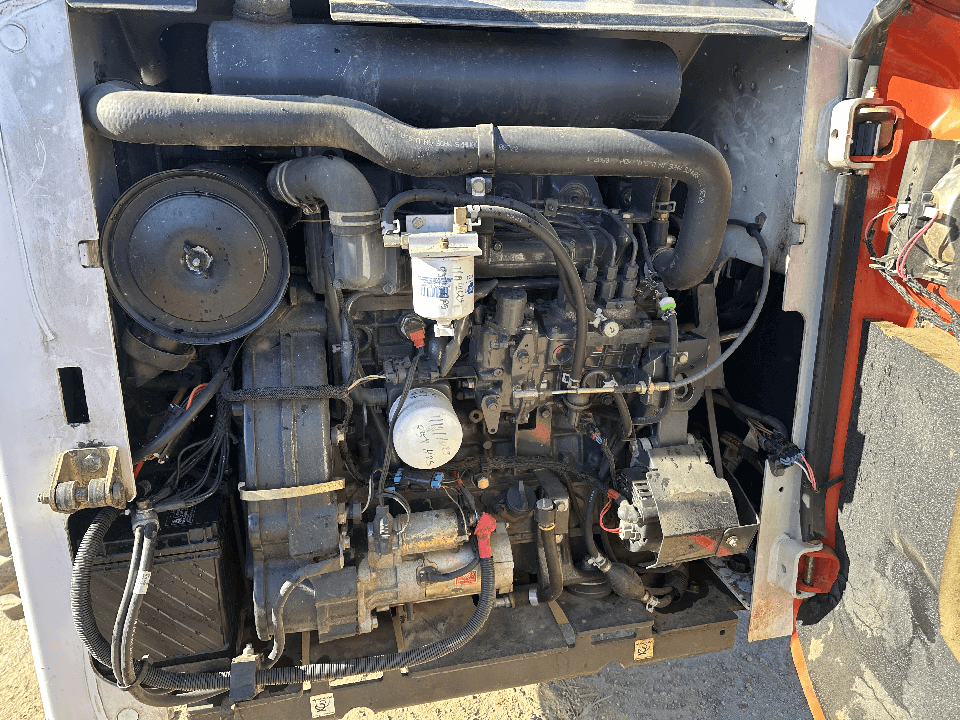

• Engine Model: Kubota V3300-DI-T, 4-cylinder diesel

• Displacement: 201.4 cu in (3.3 L)

• Gross Engine Power: 75 hp @ 2,800 rpm

Dimensions

• Length with Bucket: 11.91 ft

• Length without Bucket: 9.54 ft

• Width Over Tires: 6.00 ft (72 in)

• Height to Top of Cab: 6.74 ft (80.9 in)

• Wheelbase: 4.02 ft

• Turning Radius (from machine rear): 84.2 in

• Clearance at Max Lift & Dump: 8.29 ft

Hydraulic System

• Standard Flow: 20.7 gal/min (78 L/min)

• High Flow (optional): 30.9 gal/min

• System Pressure: 3,300 psi (approx.)

Performance

• Travel Speed (Standard): 6.9 mph (11.1 km/h)

• Travel Speed (Two-Speed Option): 12.0 mph (19.3 km/h)

• Lift Height to Hinge Pin: 128.8 in (3.27 m)

• Dump Reach at Max Lift: 33.8 in (0.86 m)

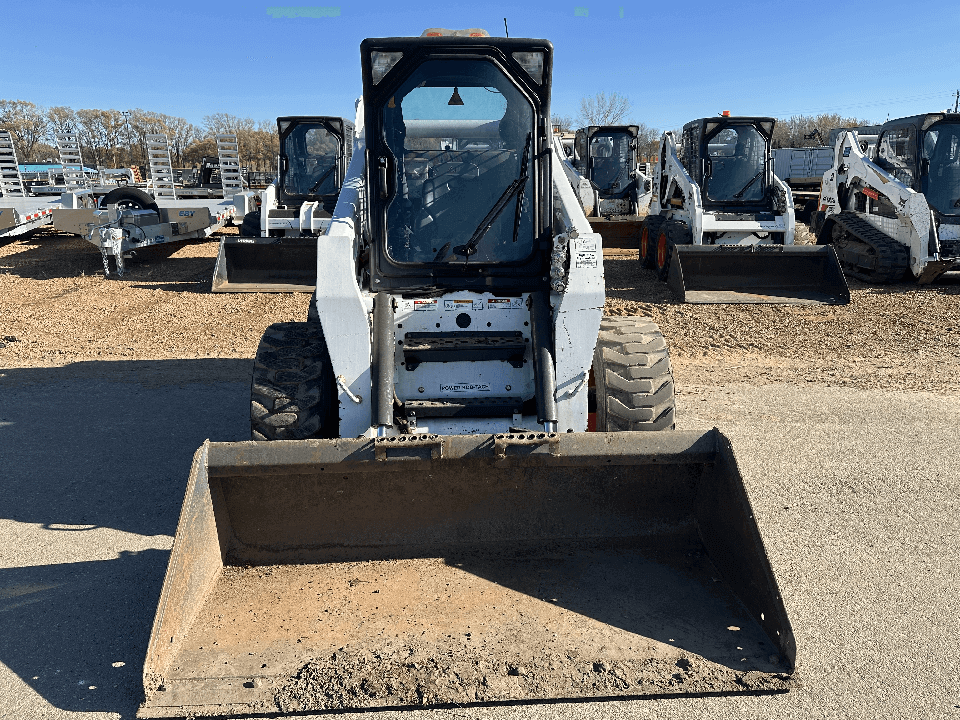

• Bucket Capacity (Standard): 0.6 yd³ (0.46 m³)

• Breakout Force (Tilt): ~5,000 lb

Operational Features

• Drive System: Hydrostatic, four-wheel drive

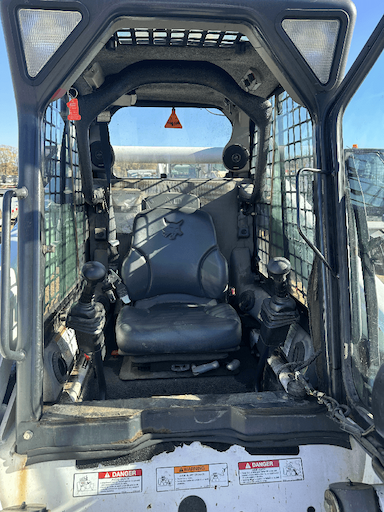

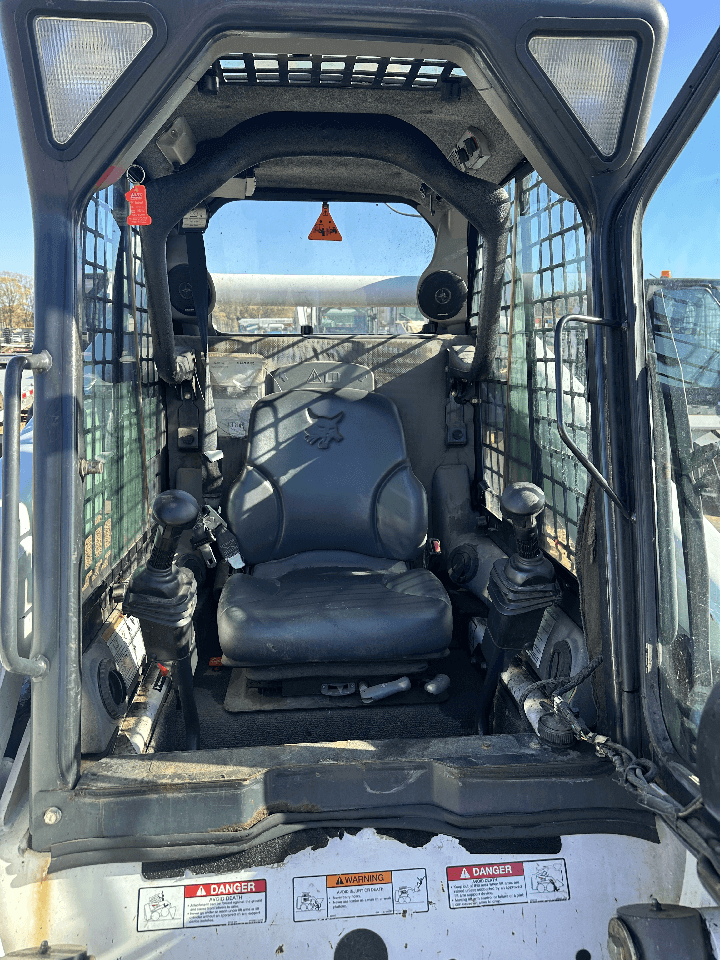

• Control Type: Hand and foot controls (optional joystick controls available)

• Fuel Tank Capacity: 27 gal (102 L)

• Tire Size: 12 x 16.5 standard

• Auxiliary Hydraulics: Standard quick couplers

Additional Information

• Lift Path: Vertical lift

• Cooling System: Liquid-cooled

• Cab: ROPS/FOPS certified

• Attachment Compatibility: Bob-Tach quick attach system
