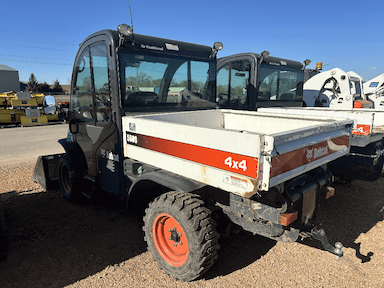

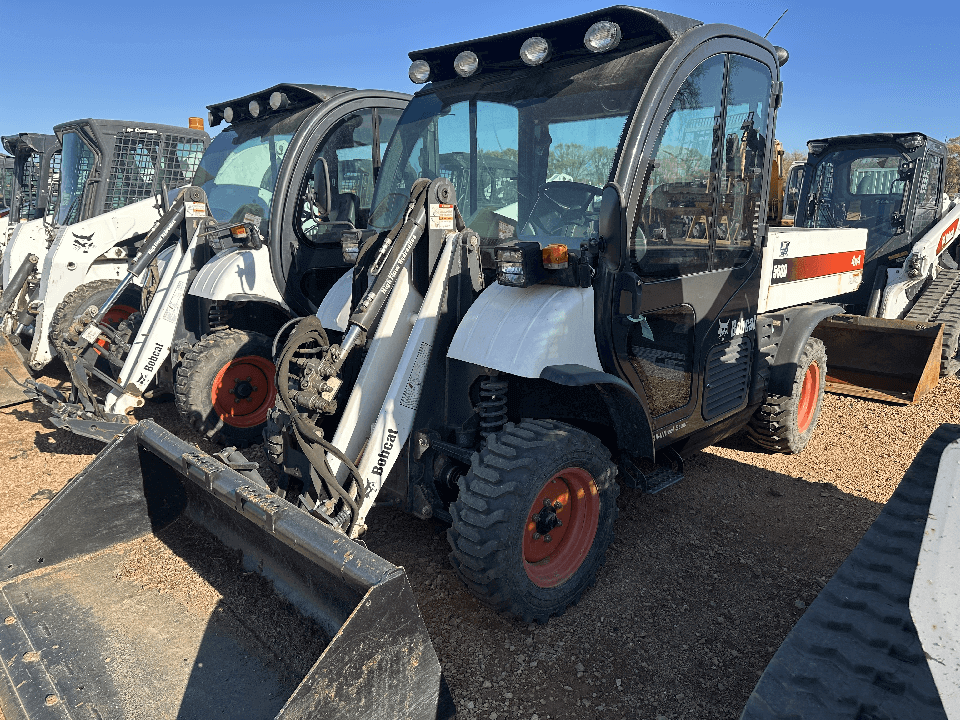

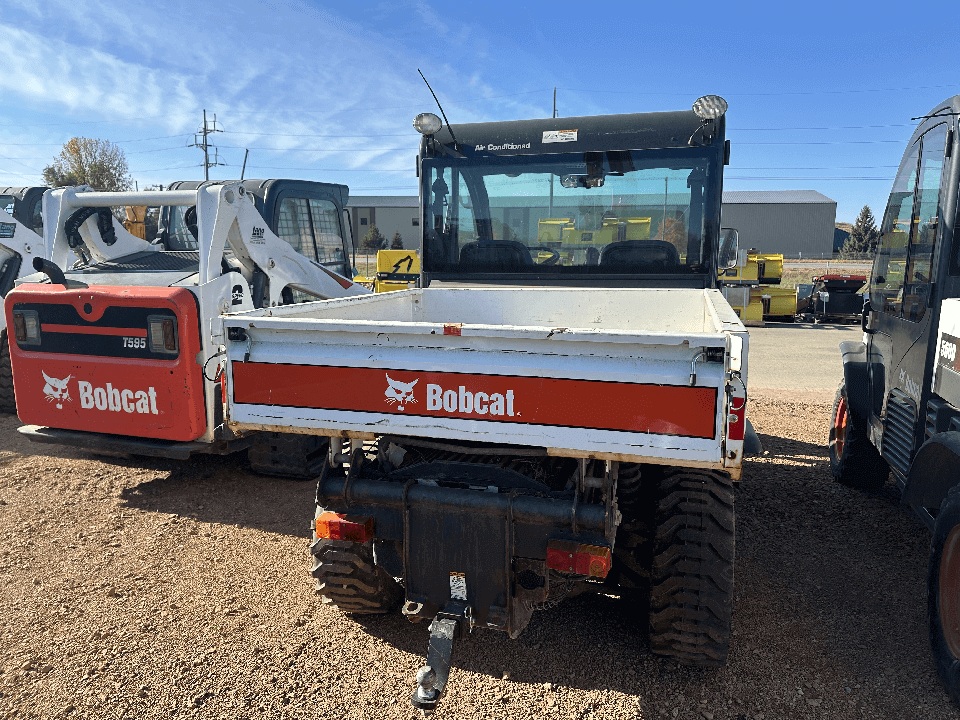

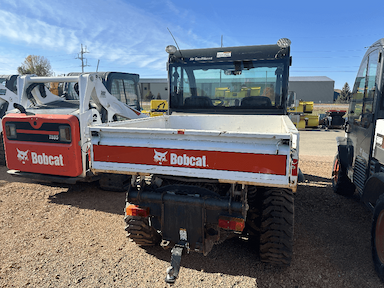

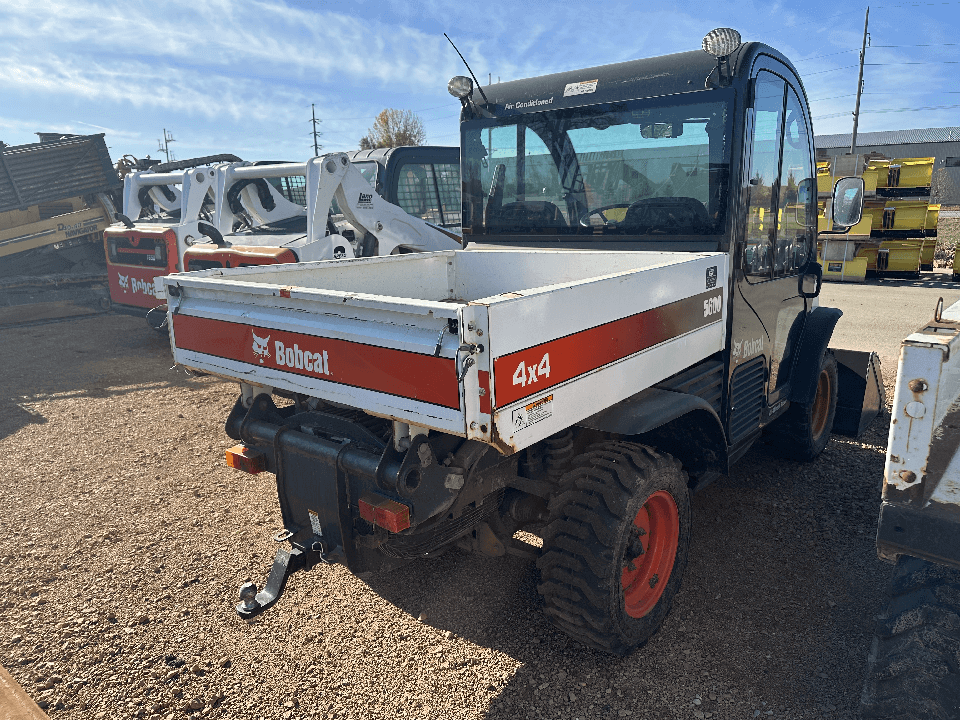

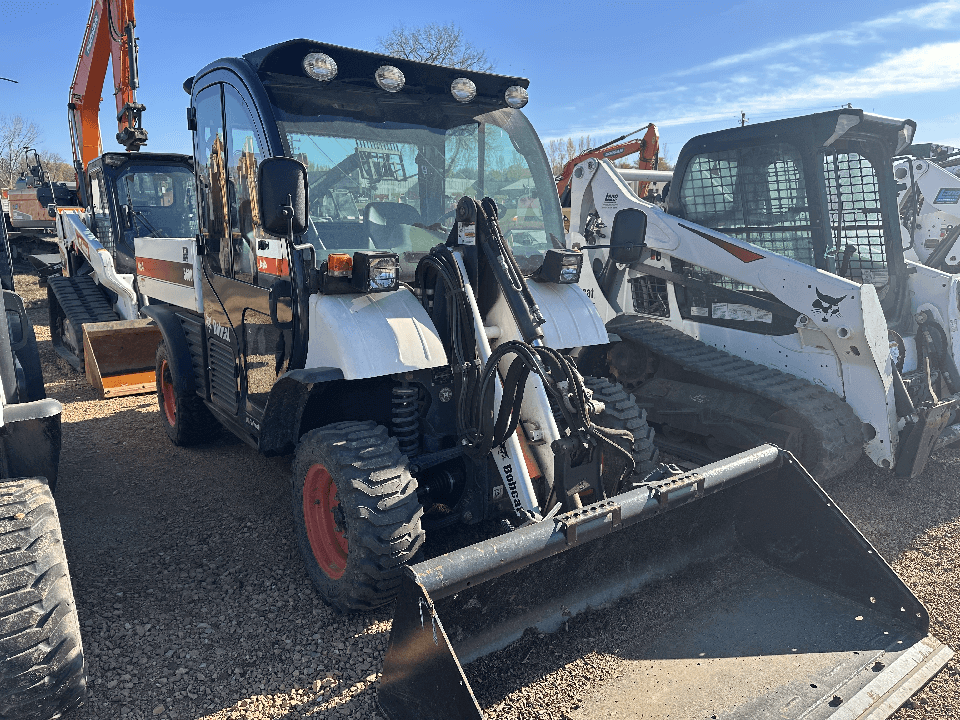

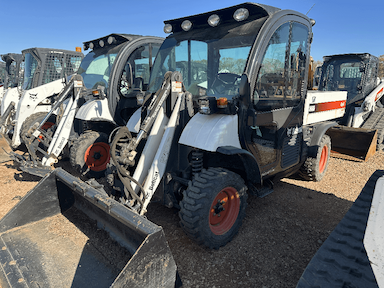

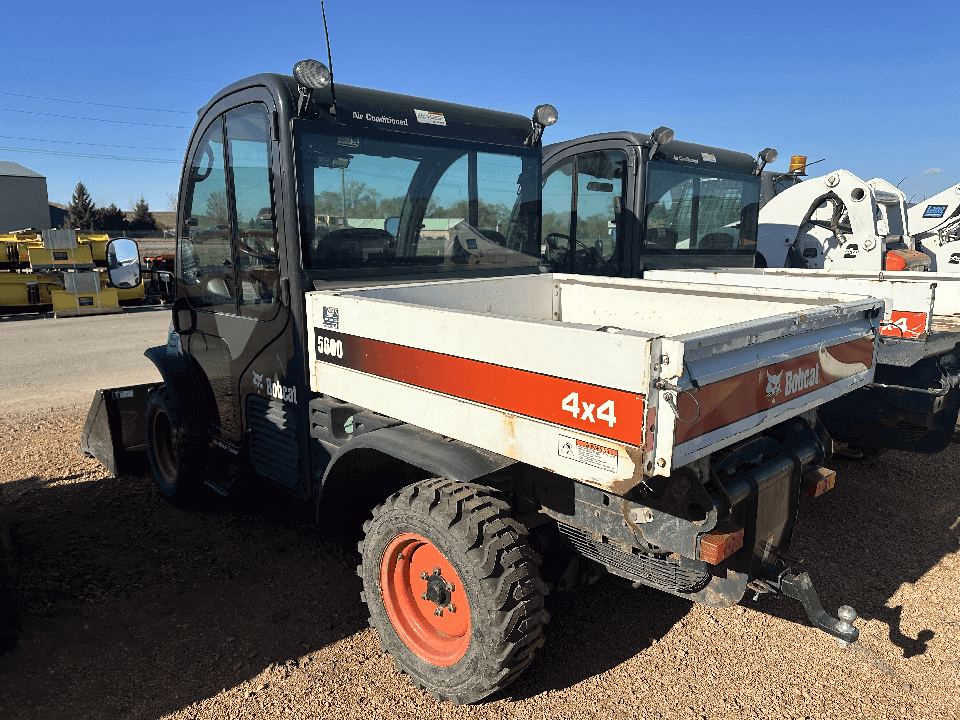

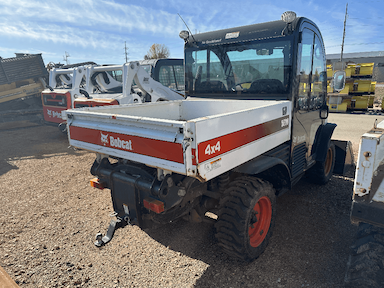

2014 Bobcat 5600 Utility Vehicles 263453

Toolcat- Cab-A/C-High Flo-Bucket

Engine & Power

• Engine Type: Diesel, liquid-cooled

• Horsepower: 61 hp

• Engine Displacement: 2.2 L (approx.)

• Emissions Rating: Tier 4 compliant

Weights & Capacities

• Operating Weight: 5,680 lb (2,578 kg)

• Rated Operating Capacity (Lift Arm): 1,500 lb (680 kg)

• Cargo Box Load Capacity: 2,000 lb (907 kg)

• Towing Capacity: 4,000 lb (1,814 kg)

• Total Machine Rated Capacity: 4,200 lb (1,905 kg)

Hydraulic System

• Auxiliary Hydraulic Flow (High Flow Option): 27.9 gal/min (105.6 L/min)

• Hydraulic System Pressure: 3,000 psi (206.8 bar)

Performance

• Maximum Travel Speed (High Range): 17 mph (27 km/h)

• Travel Speed (Low Range): 9–10 mph (14–16 km/h)

• Drive System: Hydrostatic, all-wheel drive

• Steering Type: All-wheel steer

Dimensions

• Overall Length: 147.5 in (3,750 mm)

• Overall Width: 60.5 in (1,538 mm)

• Overall Height: 80.5 in (2,044 mm)

• Ground Clearance: 13.5 in (343 mm)

• Wheelbase: 85 in (2,160 mm)

• Cargo Box Height from Ground: 36.7–38.2 in (933–971 mm)

Capacities

• Fuel Tank Capacity: 20 gal (75.7 L)

• Hydraulic Fluid Capacity: 9 gal (34 L)

Operational Features

• Lift Arm Type: Vertical lift path

• Attachment Interface: Bob-Tach quick attach system

• Brake System: Multi-disc wet brakes

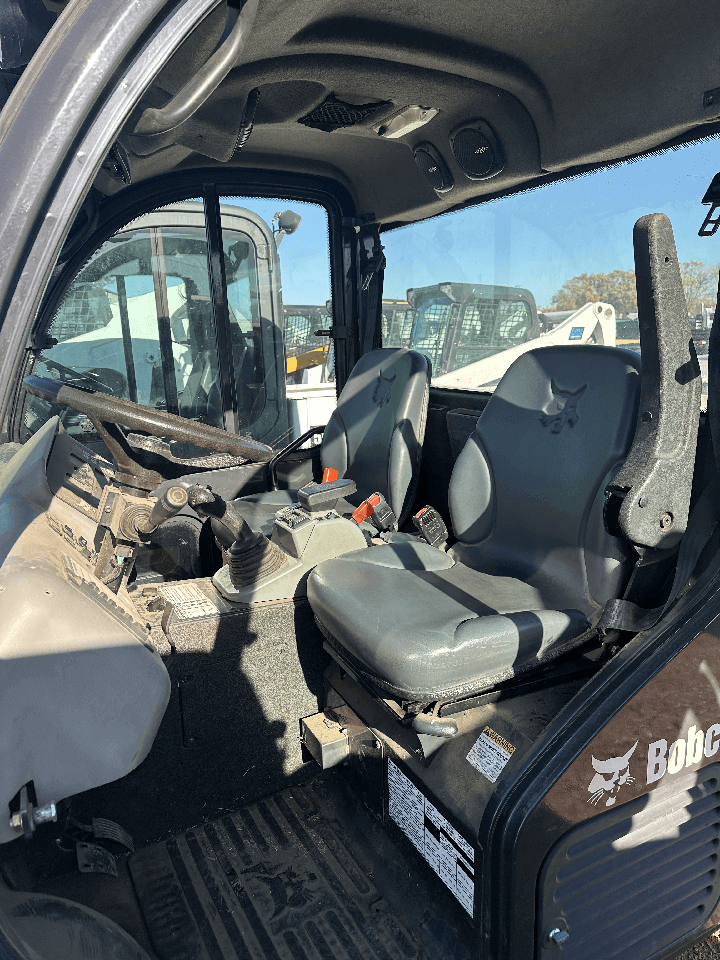

• Cab: Enclosed ROPS/FOPS cab with HVAC (optional open cab)

• Seating Capacity: 2-person cab

• Tires: 27x10.5-15 (standard)
