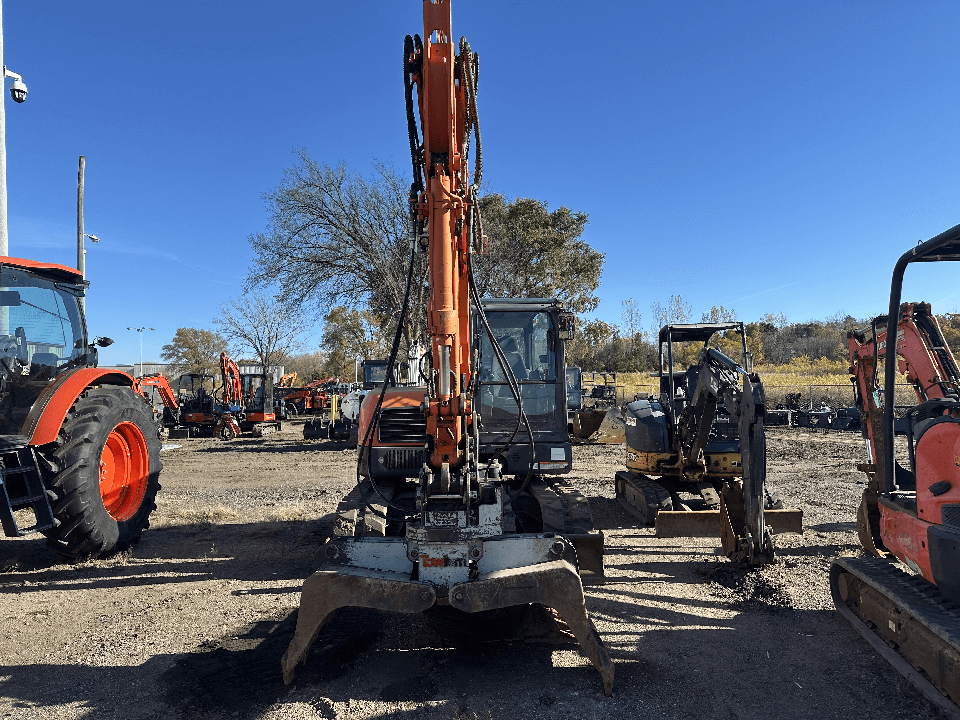

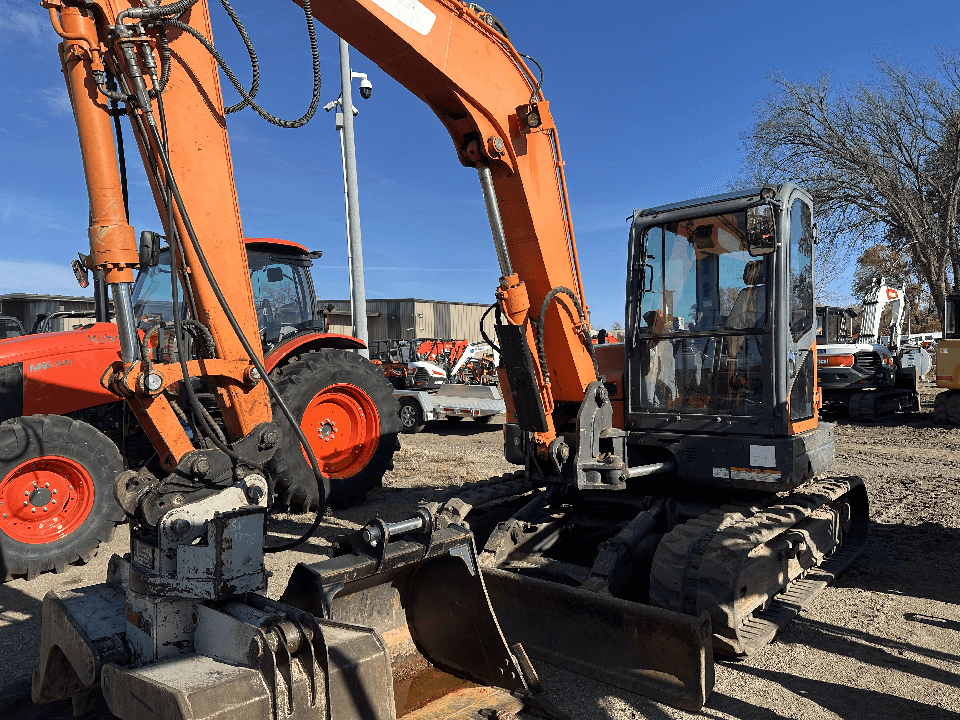

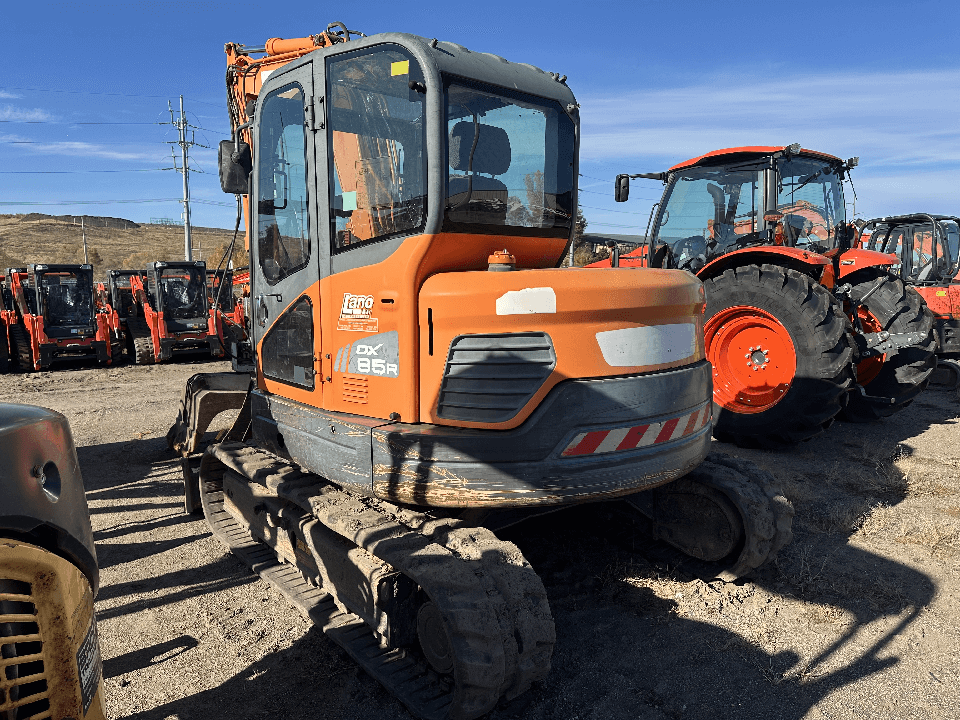

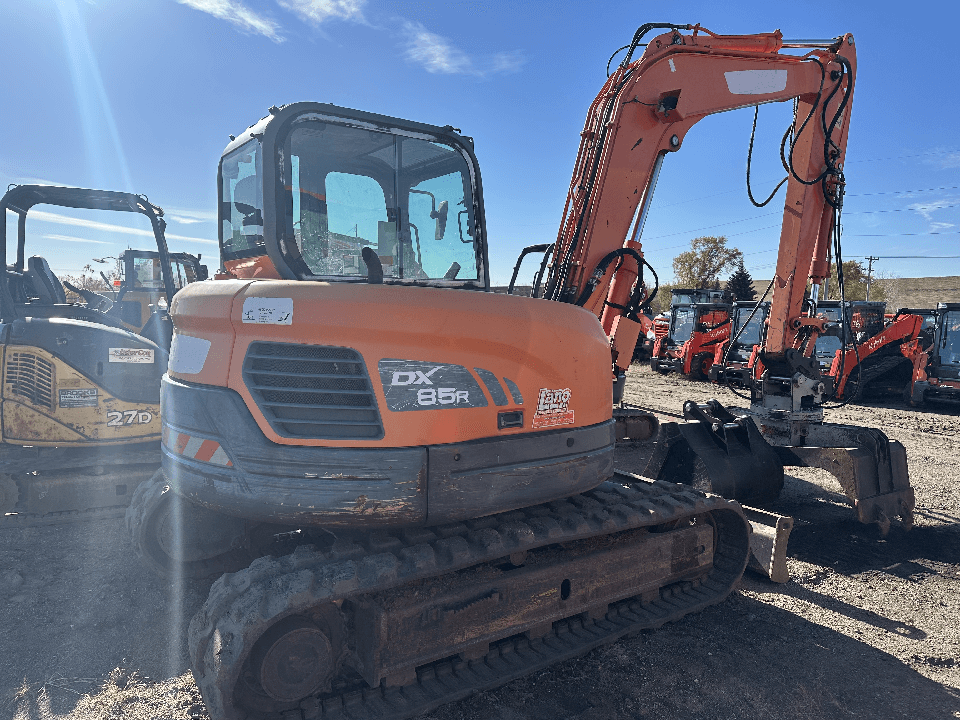

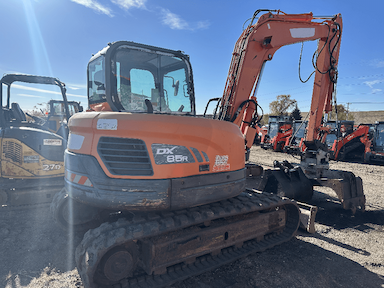

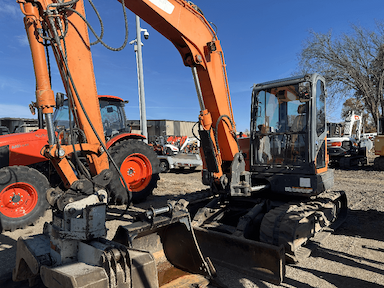

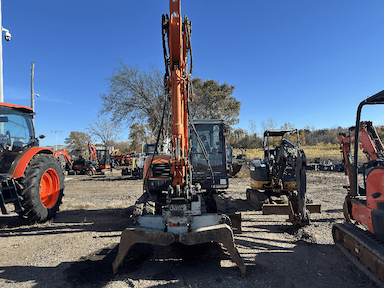

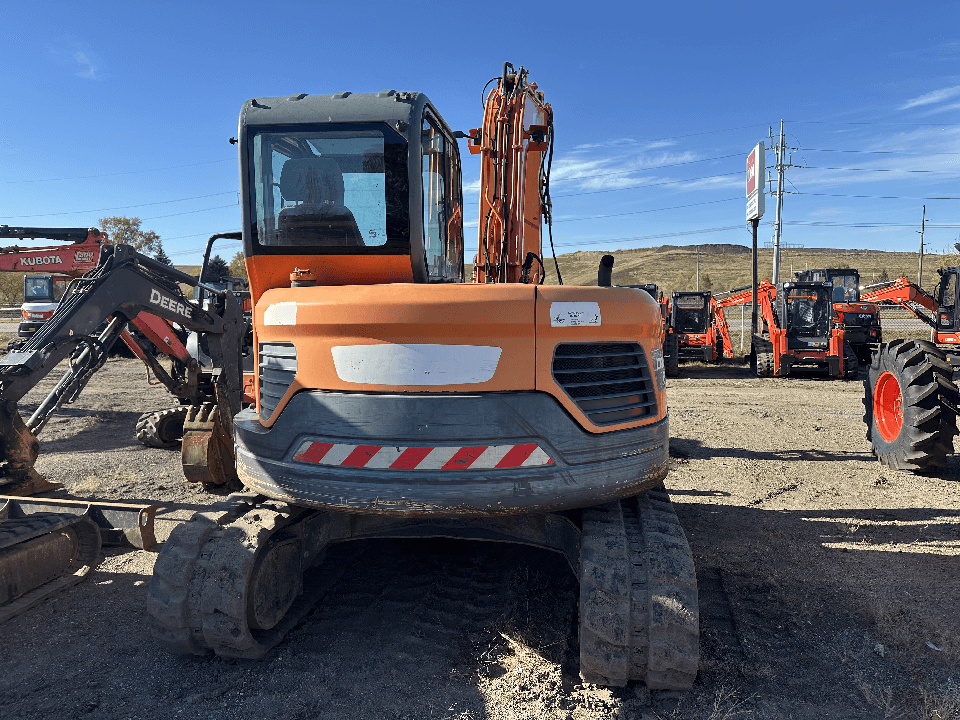

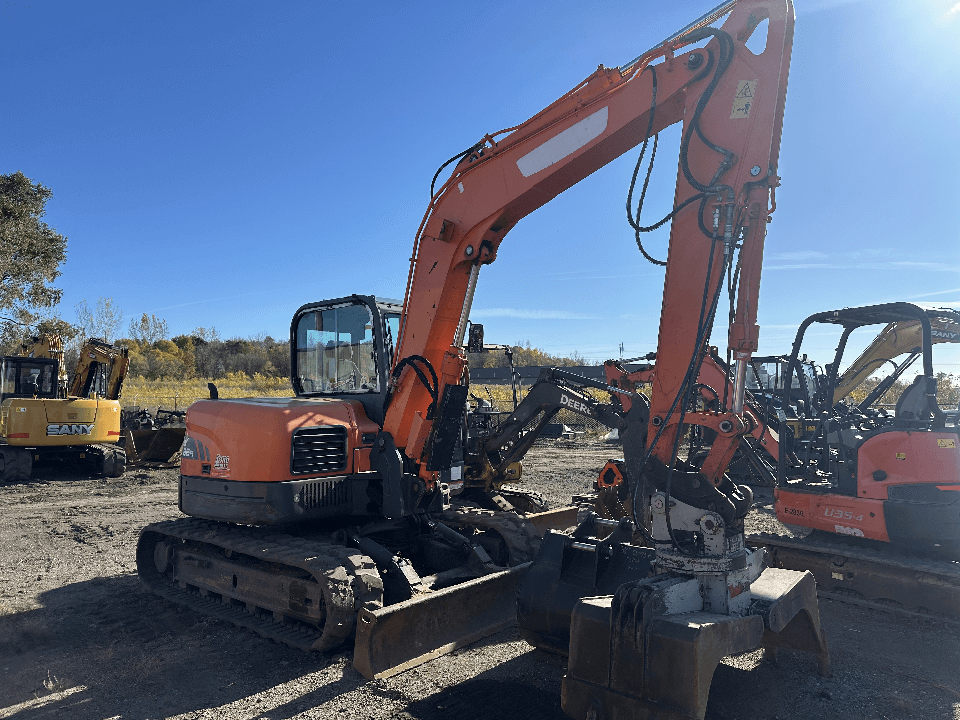

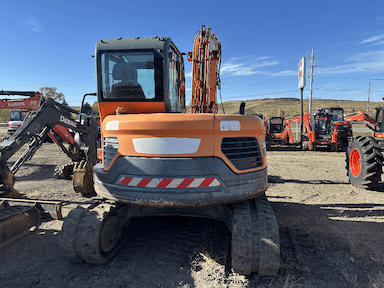

2014 Doosan DX85R Excavators 65355

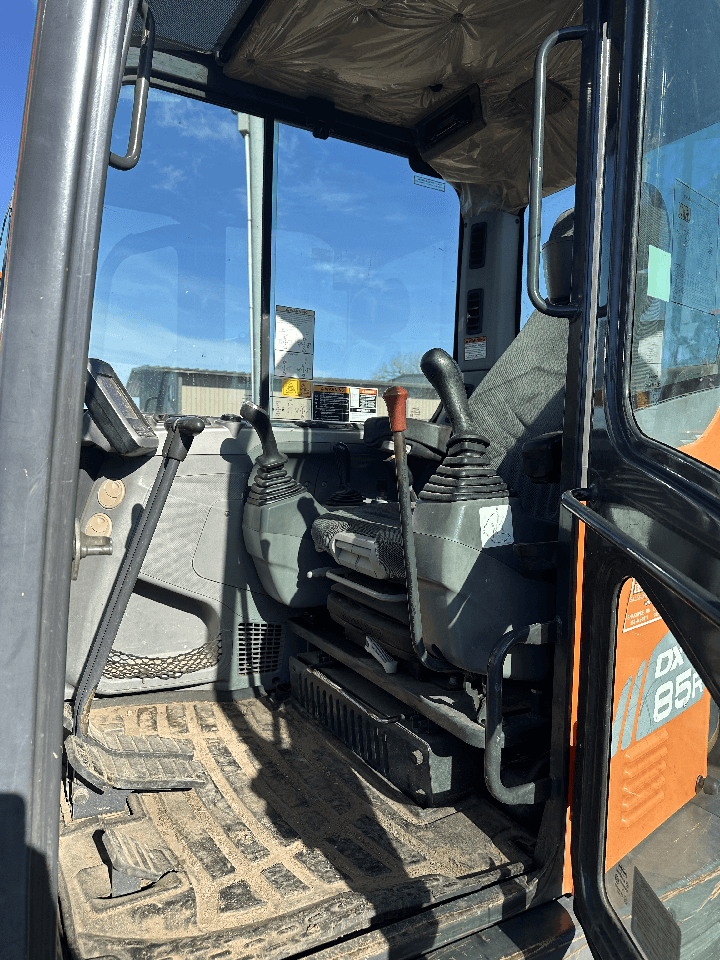

Excavator-US10 Pkg-Cab-A/C-Blade

**ROTATOR ATTACHMENT NOT INCLUDED**

Engine & Power

• Engine: Yanmar 4-cylinder diesel (model 4TNV98C)

• Gross Horsepower: approx. 59 hp

• Net/Rated Horsepower: approx. 58.6 hp

• Displacement: approx. 203 cu in (3.3 L)

Operating Weight & Capacity

• Operating Weight: approx. 18,960 lb (8,600 kg)

• Bucket Capacity: up to approx. 0.28 m³ (≈0.37 yd³)

Digging & Performance Specs

• Max Digging Depth: approx. 15.6 ft (4.75 m)

• Max Reach at Ground: approx. 23.1 ft (7.04 m)

• Max Vertical Wall Depth: approx. 12.4 ft (3.78 m)

• Bucket Digging Force: approx. 14,613 lb

• Arm Digging Force: approx. 8,093 lb

Hydraulics & Travel

• Hydraulic System Capacity: approx. 39 gal

• Travel Speed (Low / High): approx. 1.7 mph / 2.9 mph

• Swing Speed: approx. 9.5 rpm

Dimensions

• Transport Length: approx. 20.7 ft (6.30 m)

• Transport Width: approx. 7.55 ft (2.30 m)

• Height to Top of Cab: approx. 7.1 ft (2.17 m)

• Track Shoe Width: approx. 17.7 in (450 mm)

Undercarriage

• Configuration: Reduced tail swing design

• Rollers: 5 lower rollers per side, 1 upper roller per side

• Track Shoes: approx. 39 per side

Emissions Tier

• Tier Rating: Tier 4 compliant (North America)
