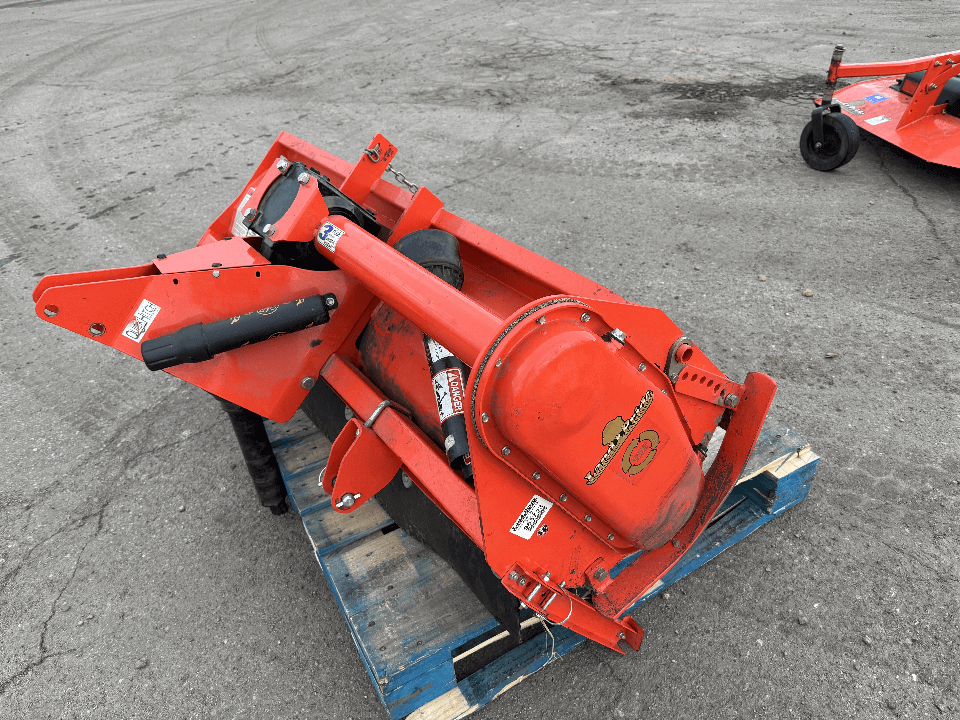

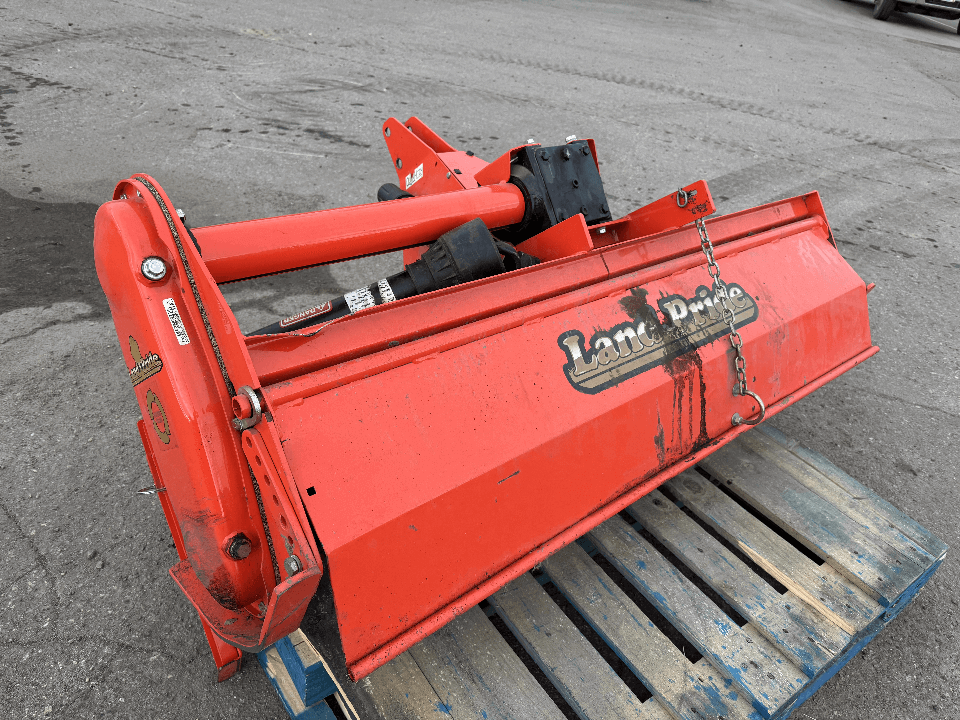

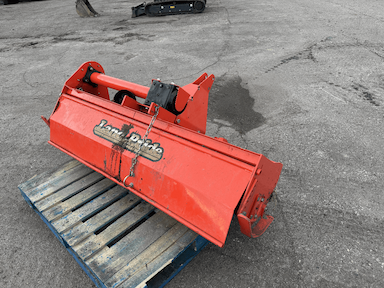

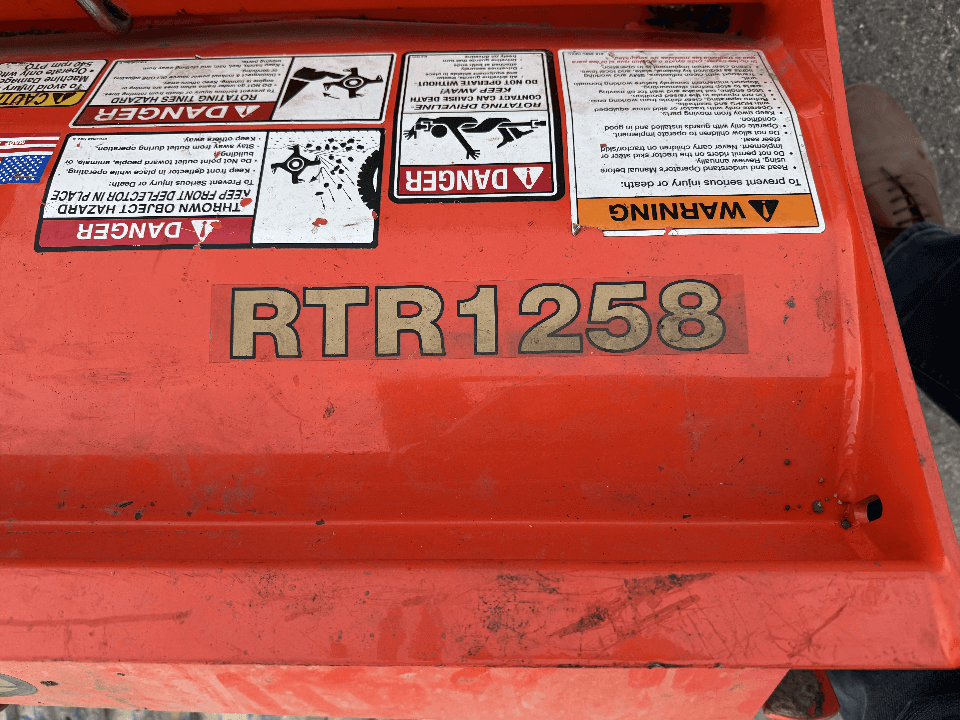

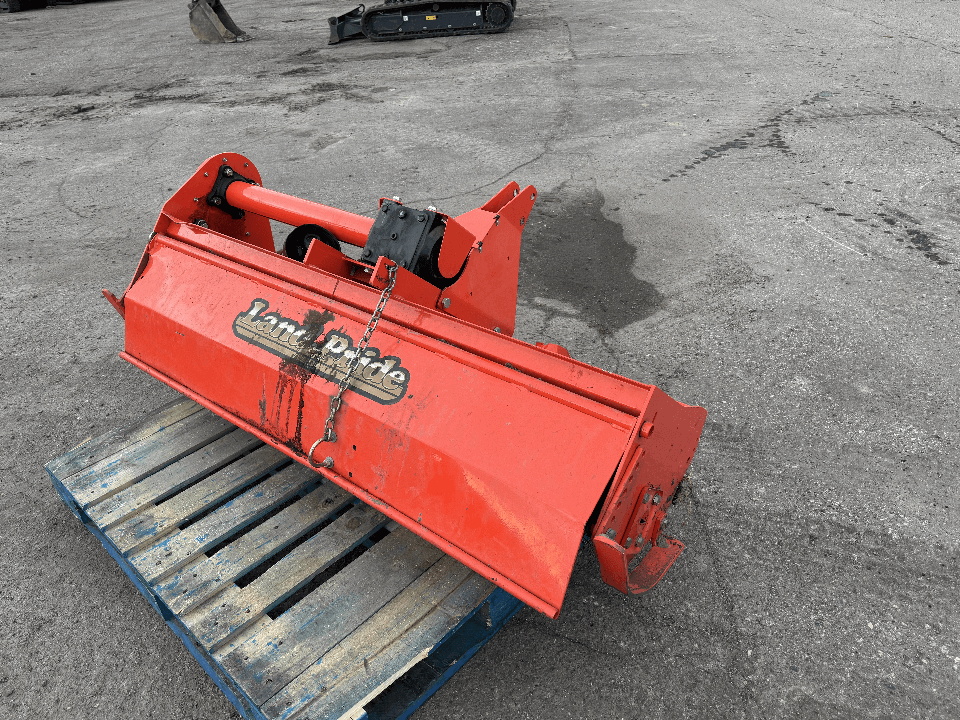

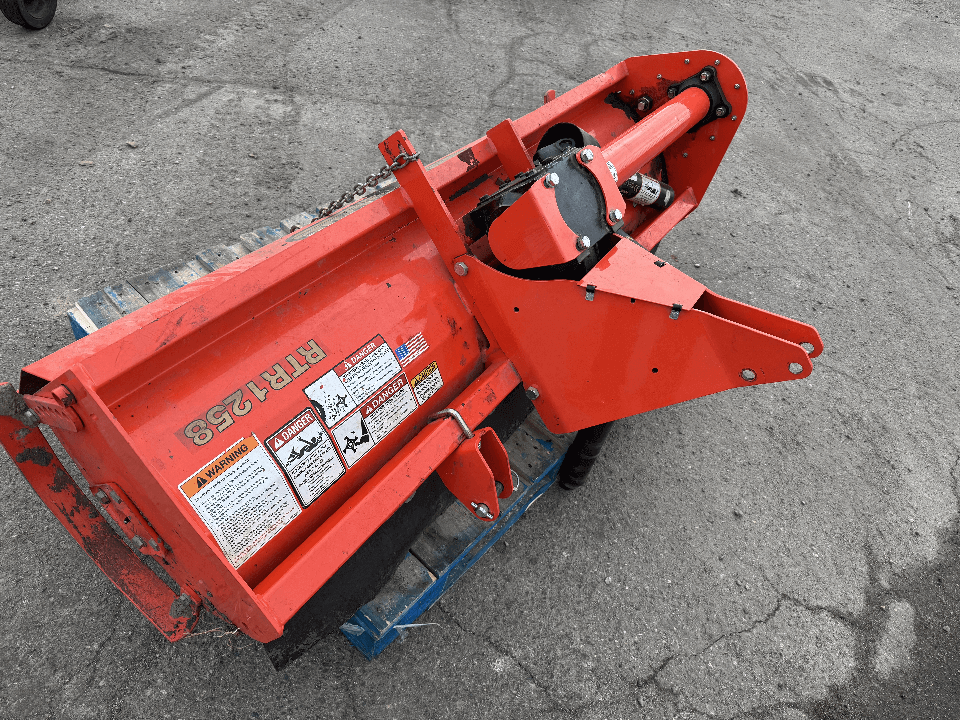

2015 Land Pride RTR1258 Tillers 120328

Reverse Till-58 -3 Pt-Cat l-20-50 hp Tractors

Recommended Tractor PTO Horsepower: 20 to 50 HP
Weight: 463 lbs
Tilling Width (end plate to end plate): 58 in (1.47 m)
Overall Width: 63 in (1.60 m)
3-Point Hitch Type: Category I, Adjustable Lower Hitch Clevis with Plated Pins. Fits Land Pride Quick Hitch.
Offset Capabilities: Can offset up to 7 in (17.8 cm); must be centered if using Quick Hitch
Sideshift (Centered): 29" – 29"
Sideshift (Shifted Right): 22" – 36"
Sideshift (Shifted Left): 36" – 22"
Number of Flanges on Rotor: 7
Number of Tines per Flange: 4

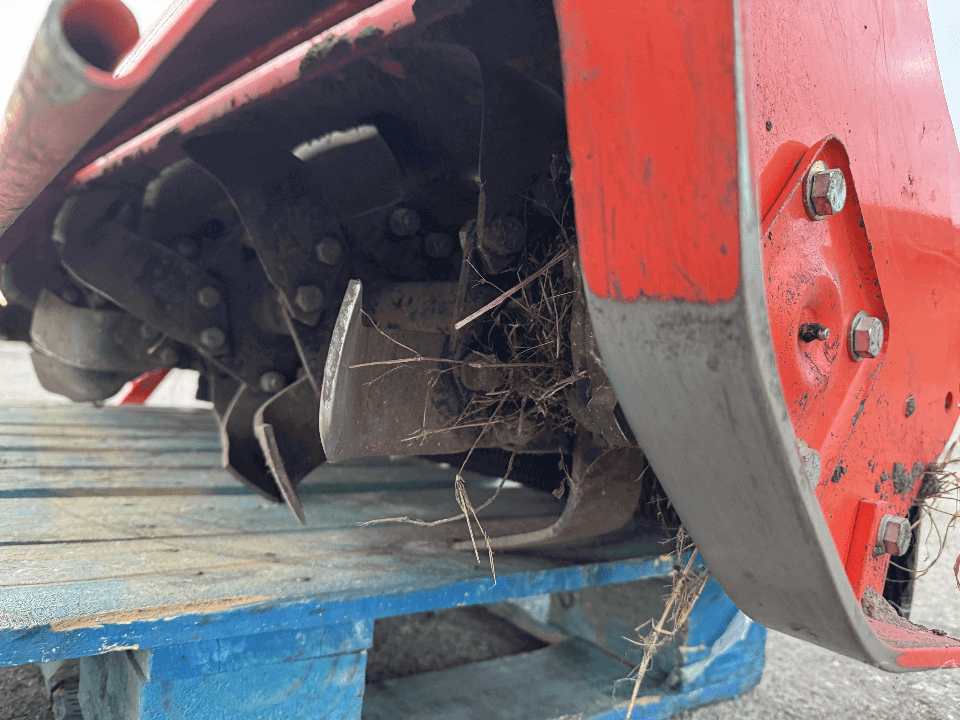

Tine Construction: Alloy steel, heat-treated “C” shaped blades
Rotor Rotation: Reverse rotation
Rotor Swing Diameter: 15 in (38 cm)
Rotor Shaft Speed: 211 rpm at 540 rpm PTO
Gearbox Input Rating: 60 HP input at 540 rpm; 1.92:1 ratio; cast iron housing with ASAE 1-3/8" 6-spline shaft; tapered roller bearings; bevel gears; drain, level, and fill plugs
Lubrication: SAE 80-90W EP oil; gearbox oil capacity 2 pints (0.95 L)
Drive Chain: #80 roller chain, fully enclosed in oil bath with drain and fill plugs
Drive Chain Lubrication: Flowable grease, 20 oz (0.59 L)
Skid Shoes: Adjustable
Storage Stand: Adjustable
Rear Tailgate: Adjustable rear tailgate
Front Deflector: Rubber front deflector

Notes:

• Reverse rotation design improves soil mixing and seedbed finish.

• Ideal for compact and utility tractors from 20–50 HP.

• Built with heavy-duty components for durability and long service life.

• Commonly used for landscaping, seedbed preparation, and small farm tilling.
