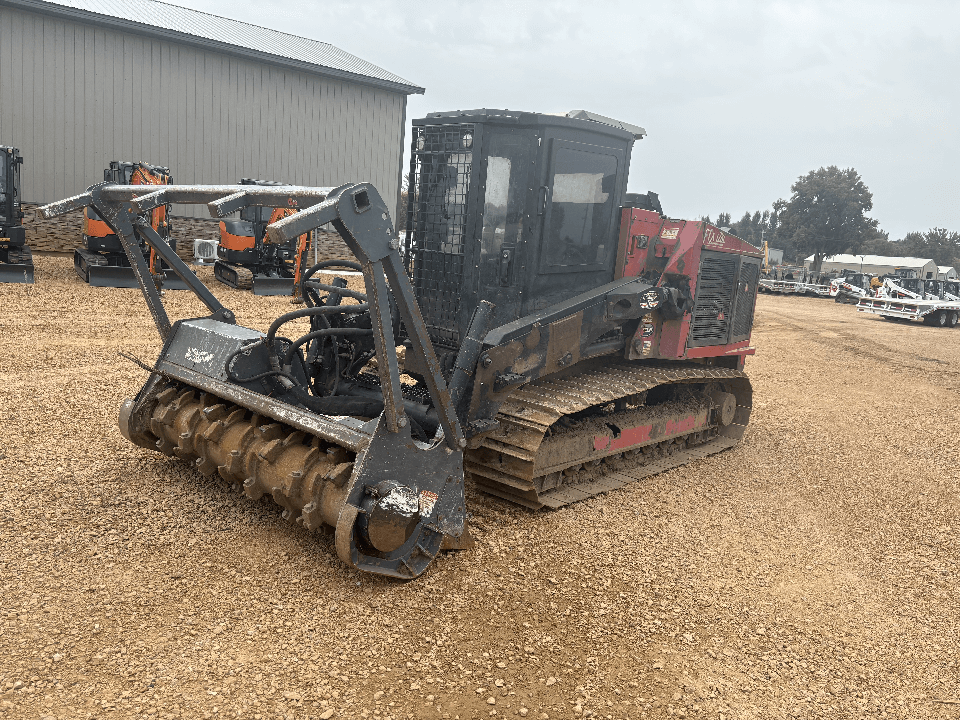

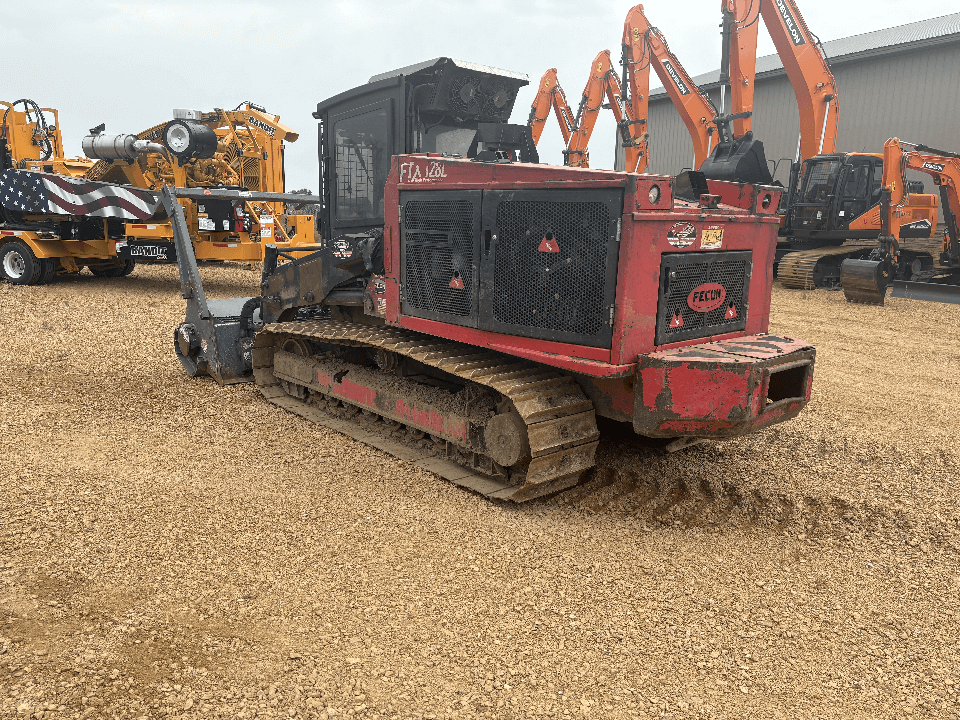

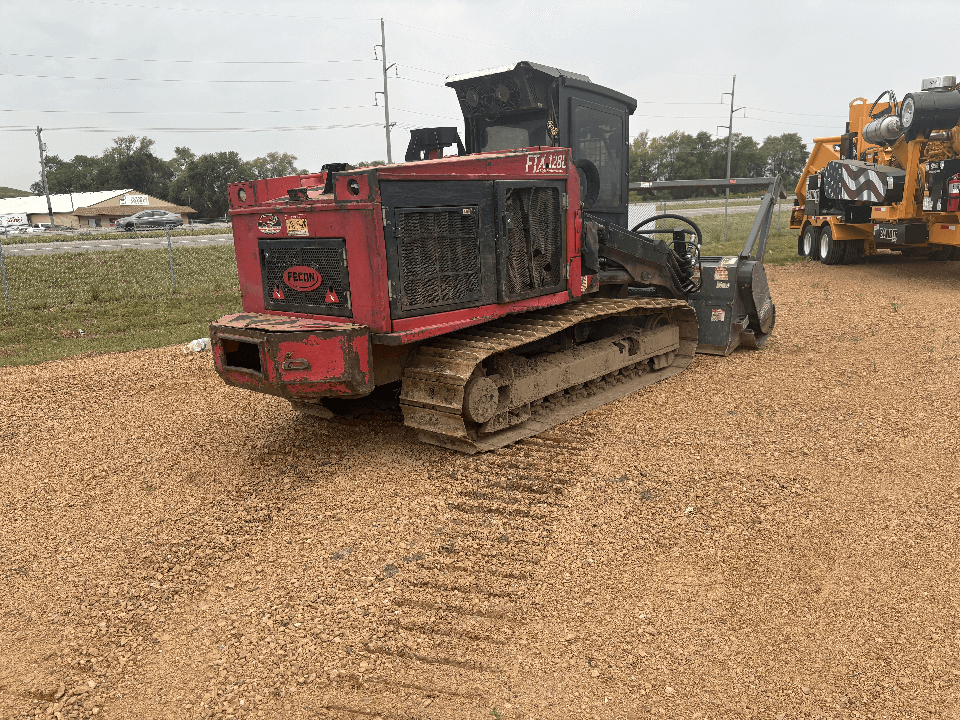

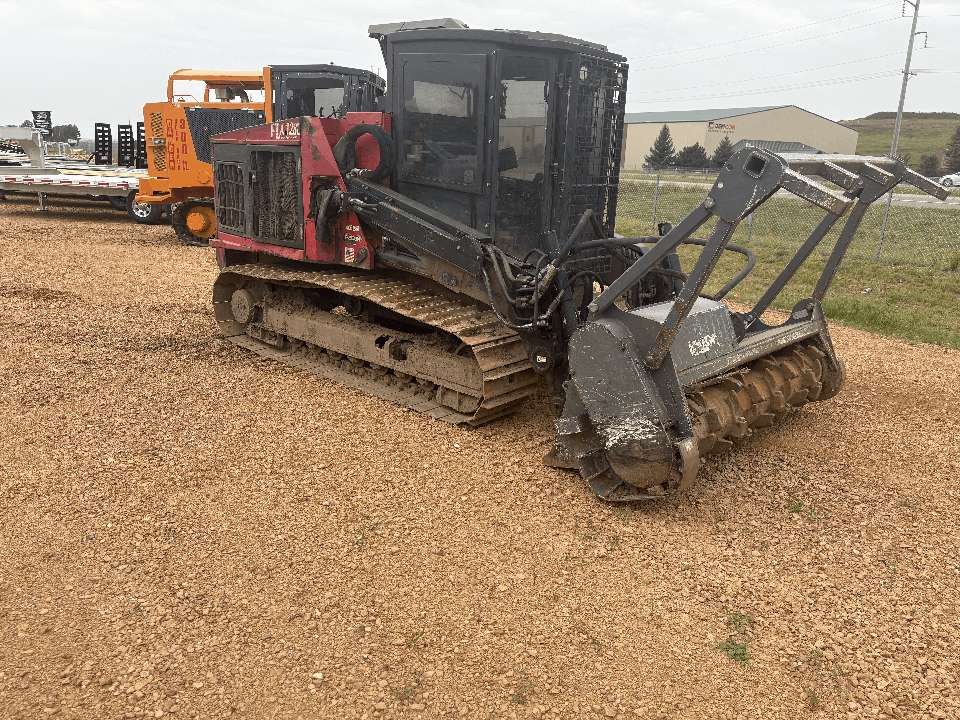

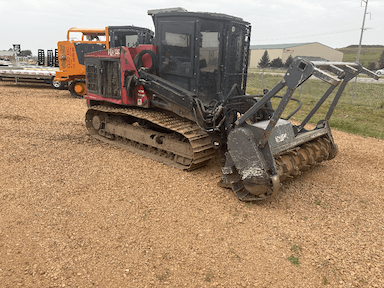

2016 Fecon FTX128-20SST Tractors 260746

Mulching Tractor-Loftness head

General:

• Model: FTX128-20SST

• Type: Compact Track Forestry Mulching Tractor

• Manufacturer: Fecon

• Year: 2016

Engine:

• Engine Model: Cummins QSB4.5 Tier 4 Interim Diesel

• Horsepower: 128 hp

• Cylinders: 4-cylinder, turbocharged

• Fuel Type: Diesel

• Cooling: Liquid cooled

Hydraulic System:

• Hydraulic Flow: 60 gpm (high-flow circuit)

• Hydraulic System Pressure: 5,000 psi (approximate)

• Hydraulic Cooling: Standard high-capacity cooler

• Attachment Control: Fecon hydraulic quick coupler system

Performance:

• Rated Operating Power: 128 hp

• Travel Speed: 5–6 mph (variable)

• Ground Pressure: ~5.5 psi (depends on track type)

• Operating Weight: 15,300 lb (6,940 kg)

Dimensions:

• Overall Length: 17 ft 2 in (5.23 m)

• Width: 5 ft 7 in (1.70 m)

• Height: 8 ft 0 in (2.44 m)

• Ground Clearance: 14 in (356 mm)

Undercarriage:

• Track Type: Heavy-duty steel-embedded rubber tracks

• Track Width: 20 in (508 mm) typical

• Track Length on Ground: 90 in (2,286 mm)

• Suspension: Rigid frame

Cab & Controls:

• Enclosed ROPS cab with heat and air conditioning

• Adjustable suspension seat

• Full pilot joystick controls

• Rear and side visibility windows

• LED work lights and protective guarding

Features / Attachments:

• Fecon Bull Hog mulching head compatible

• Hydraulic quick attach

• Integrated forestry guarding

• Grizzly bar debris protection system

• High-flow auxiliary circuit

• On-board diagnostics display

Maintenance & Capacities:

• Fuel Tank Capacity: 60 gallons (227 L)

• Hydraulic Tank Capacity: 35 gallons (132 L)

• Cooling System Capacity: 4.5 gallons (17 L)
