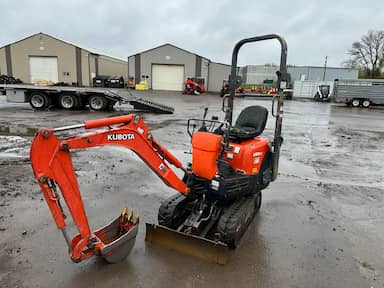

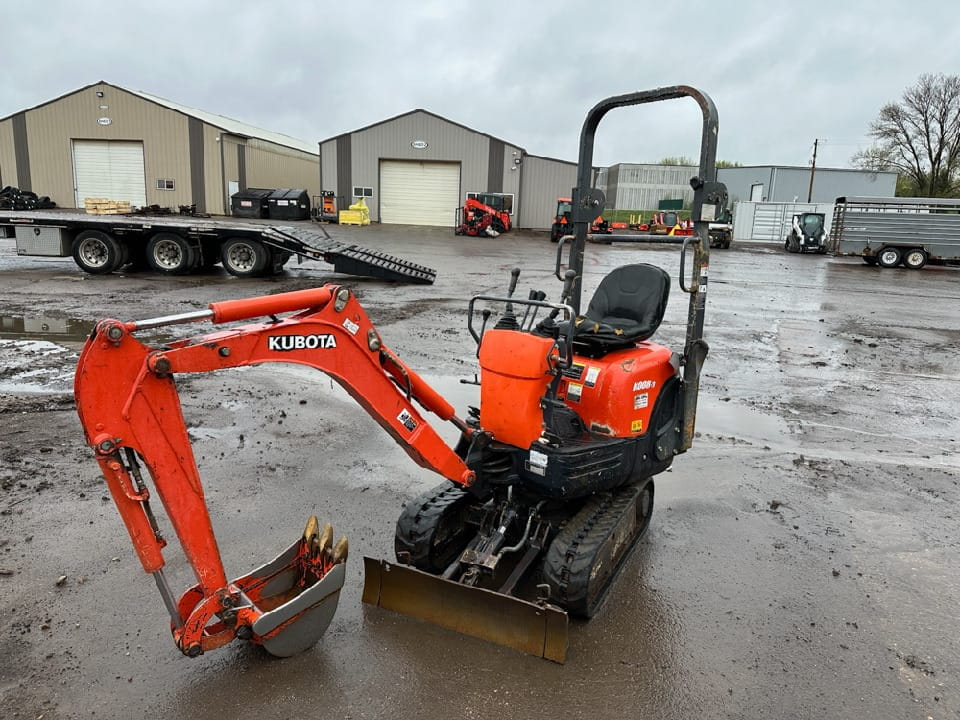

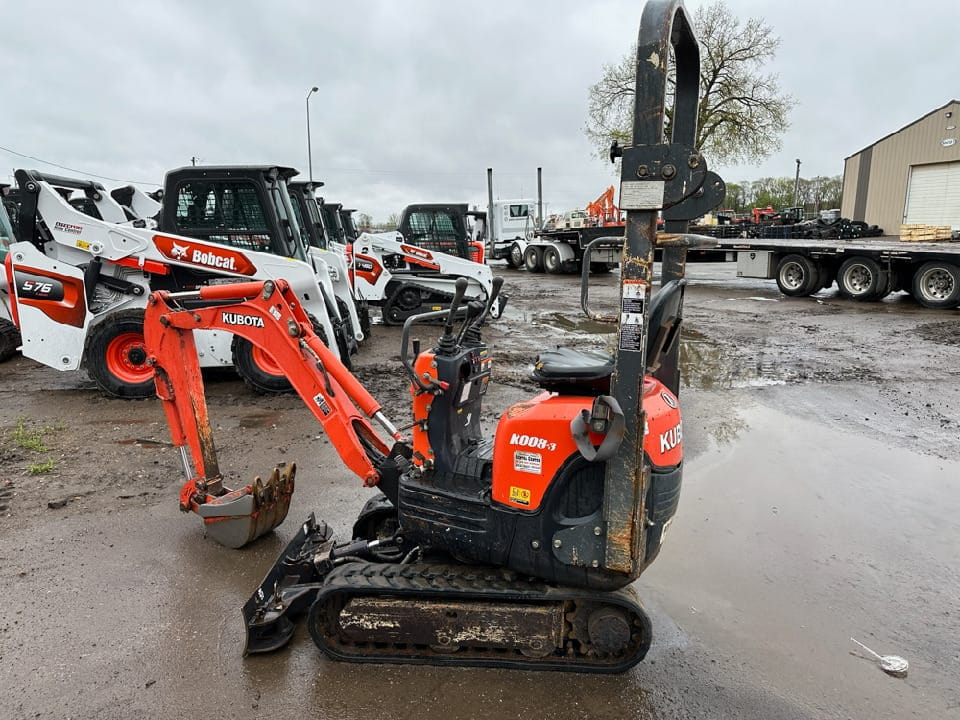

2016 Kubota K008 Mini Excavator 122703

KUBOTA MINI EXCAVATOR,ROPS,RBBR TRK,BLADE,K7768

Specs

MODEL

• Model Name K008-3

ENGINE

• Make Kubota
• Model D722-E4-BH-1
• Type Diesel
• EPA Rating Tier 4
• Cooling  Liquid
• Cylinders  Three
• Displacement 44 cu. in. (719 cc)
• Horsepower
• Engine gross @ rpm 10.3 HP (7.7 kW) @ 2050 RPM
• Engine net @ rpm 10.1 HP (7.5 kW) @ 2050 RPM
• Injection type  Indirect
• Self bleed fuel system Yes
• Cold weather start aid Yes
• Air filter Dual element, cyclonic
• Oil filter Spin on type

FUEL SYSTEM

• Fuel type Diesel
• Fuel / water separator Yes
• Fuel filter In-line, spin on type

FLUID CAPACITIES

• Fuel tank capacity 3.17 gal. (12.0 L)
• Cooling system capacity 0.7 gal. (2.65 L)

CHASSIS, AXLE AND BRAKES

• Bucket breakout force 2200 lbf. (1000 kgf)
• Arm breakout force 1010 lbf. (460 kgf)

DRIVE TRAIN/TRANSMISSION

• Drive motor type Orbit, 19.0 cu. in./rev
• Maximum traction force 1695 lbf. (770 kgf)
• Ground contact pressure 3.55 psi. (0.25 kgf/cm²)

TRAVEL SPEED

• Low range
• None 1.2 mph (2.0 km/h)
• High range
• None 2.5 mph (4.0 km/h)

HYDRAULIC SYSTEM

• Type Open centre, 2 gear pumps
• Main pump 5.55 gpm. (21.0 lpm)
• Auxiliary hydraulic flow 5.55 gpm. (21.0 lpm)
• Oil cooler None
• Suction filter Yes
• Return filter Yes

ELECTRICAL

• Alternator  14 VDC, 14 amp
• Battery voltage x capacity 12 VDC 30 AH, 150 CCA
• Engine shut-off Key
• Indicator lights Engine oil, battery, low fuel, coolant
• Horn Yes

DIMENSIONS

• Overall height
• Top of ROPS 88 in. (2230 mm)
• Overall length 108 in. (2750 mm)
• Overall width 28 - 34 in. (700 - 860 mm)
• Length of track on ground 35.4 in. (899 mm)
• Ground clearance  5.9 in. (150 mm)
• Tail swing radius 30 in. (750 mm)
• Under carriage shoe width 7.1 in. (180 mm)
• Operating weight
• Rubber 2200 lbs. (1000 kg)
• Maximum digging depth 68 in. (1715 mm)
• Digging radius @ ground 119 in. (3025 mm)
• Dumping Height 80 in. (2035 mm)
• Boom swing angle 55º left / 60º right
• Unit swing speed 8.3 rpm

TRACKS

• Rubber Standard
• Length  48 in. (1230 mm)

SAFETY EQUIPMENT

• ROPS Foldable bar
• Seat belts Yes
• Grab handles for entry / exit Yes
• Safety starting system Yes

BLADE

• Width 28 - 34 in. (700 - 860 mm)
• Maximum lift above ground 7.9 in. (200 mm)
• Overall height 7.9 in. (200 mm)
• Maximum drop below ground 7.1 in. (180 mm)
