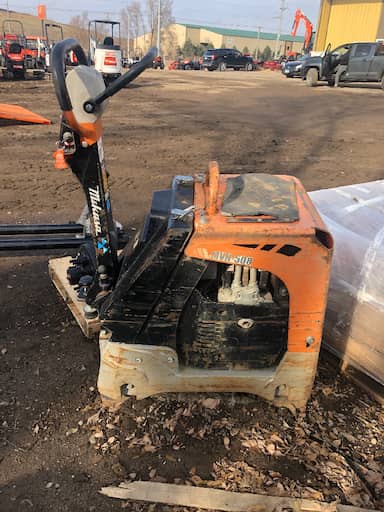

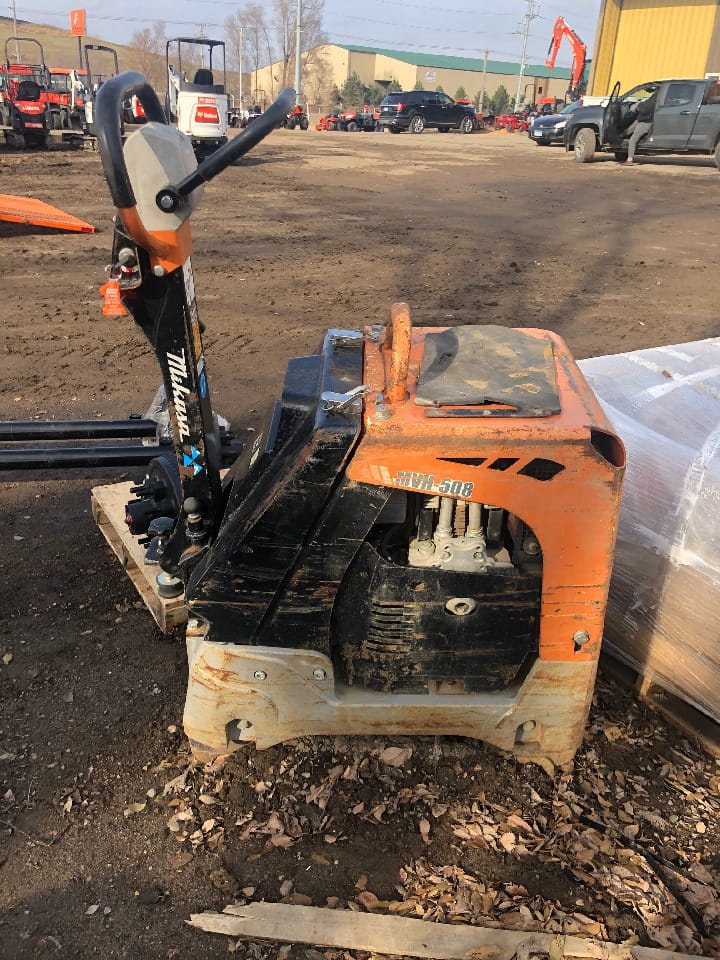

2016 Multiquip MVH508DZ Reversible Plate Compactor 122843

MULTIQUIP REVERSIBLE PLATE PACKER,20 WIDE,DIESEL

2016 Multiquip MVH508DZ Reversible Plate Compactor – Specs

• Model: 2016 Multiquip Mikasa MVH508DZ
• Type: Heavy-duty reversible plate compactor
• Application: High-production soil and asphalt compaction
• Compactor class: Contractor-grade reversible plate compactor

Engine

• Engine: Hatz 1D81S-325 diesel
• Horsepower: 11.9 HP
• Engine type: Air-cooled 4-cycle diesel
• Fuel type: Diesel
• Starting system: Recoil / electric start
• Displacement: 40.7 cu in (0.667L)

Compaction Performance

• Centrifugal force: 14,613 lbs (65 kN)
• Vibration frequency: 4,150 VPM (70 Hz)
• Maximum travel speed: 82 ft/min
• Designed for:
  • Sand and gravel
  • Cohesive soils
  • Trench work
  • Road base prep
  • Asphalt and paving applications

Plate Specifications

• Plate size: 25.6" × 35.4"
• Plate size with extensions: 31.5" × 35.4"
• Plate material: Heavy-duty high-strength steel
• Low-profile plate design improves travel speed and stability

Dimensions & Weight

• Operating weight: 1,157 lbs
• Operating weight with extensions: 1,182 lbs
• Overall width: 25.6 in
• Overall length: ~63 in
• Overall height: ~53.5 in

Operator Features

• Hydraulic forward/reverse controls
• Hour meter / tachometer
• Cyclonic pre-cleaner system
• Heavy-duty anti-vibration shock mounts
• Fold-down service covers for maintenance access
• Steel protective engine cage doubles as lifting bar

Construction Features

• Rugged steel baseplate construction
• Open plate design helps reduce dirt buildup
• Extension plates available for wider coverage
• Heavy-duty protective frame for jobsite durability
• Built for contractor and rental fleet applications

Key Features

• High 65 kN compaction force for demanding applications
• Reliable Hatz diesel engine with electric start
• Hydraulic reversing improves maneuverability and spot compaction
• Durable heavy-duty steel construction
• Excellent productivity on large compaction jobs

Common Uses

• Road and paving prep
• Utility trench compaction
• Parking lot and asphalt work
• Site preparation
• Landscaping and hardscaping
• Municipal and contractor compaction projects

Quick Takeaway

The 2016 Multiquip MVH508DZ is a high-production reversible plate compactor built for:

• Heavy-duty soil and asphalt compaction
• Contractor-grade durability
• Efficient hydraulic forward/reverse operation
• Reliable diesel-powered performance on demanding jobsites
