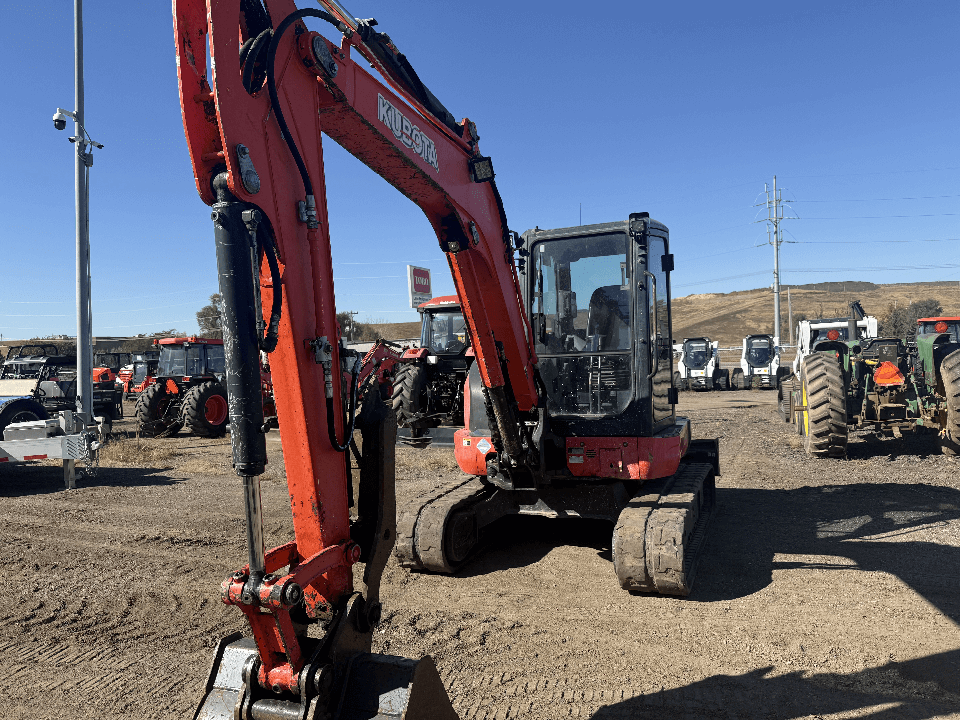

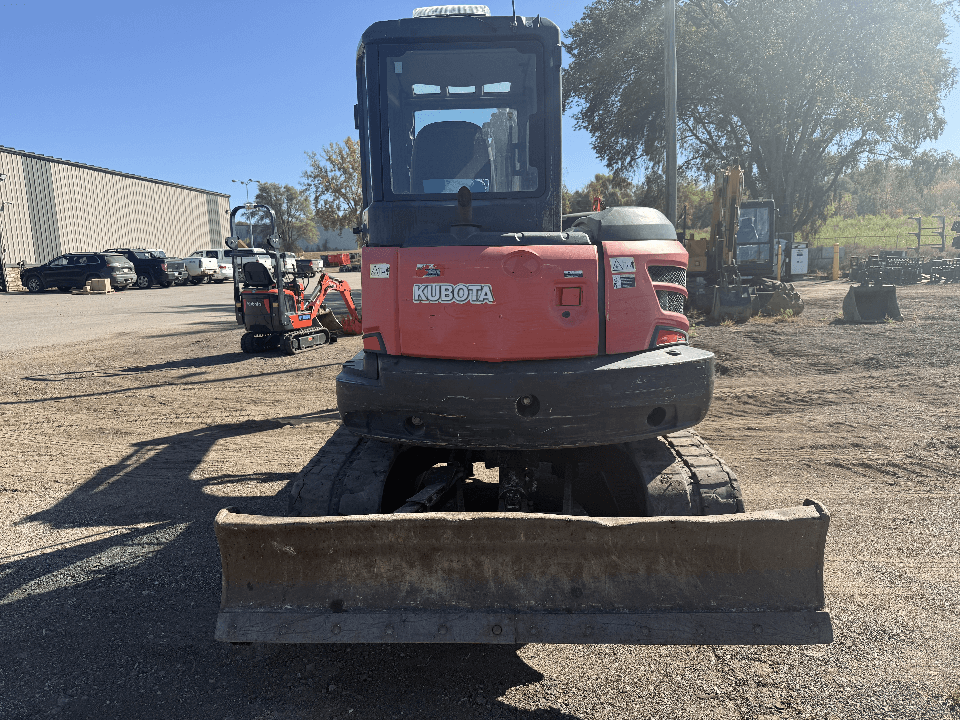

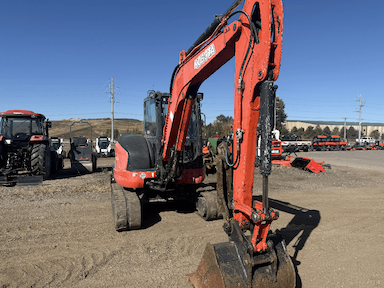

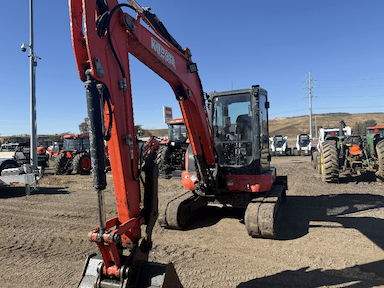

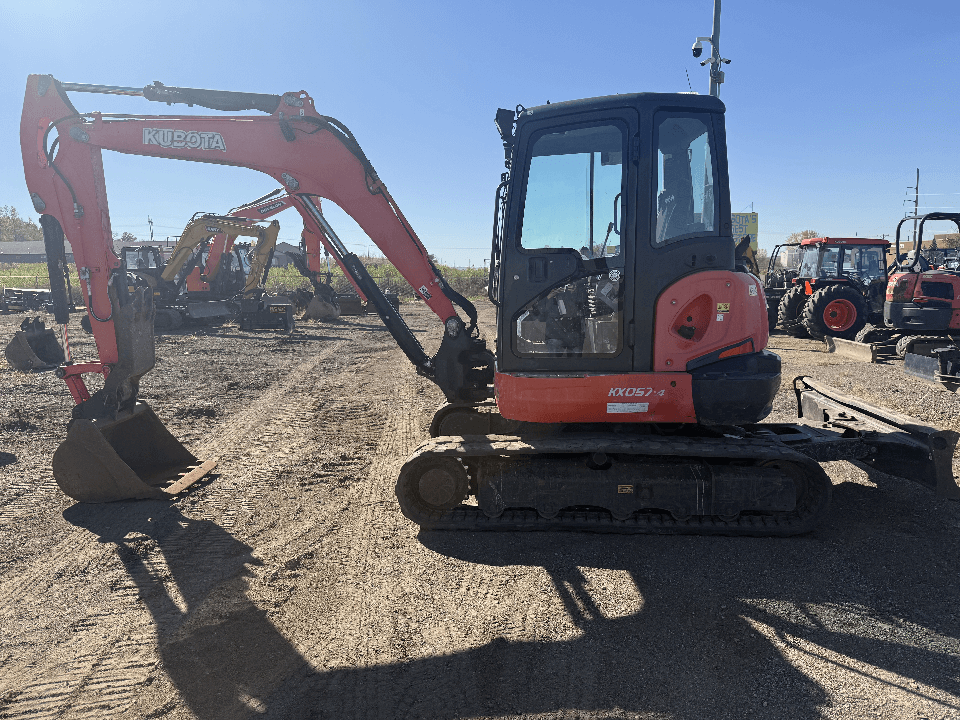

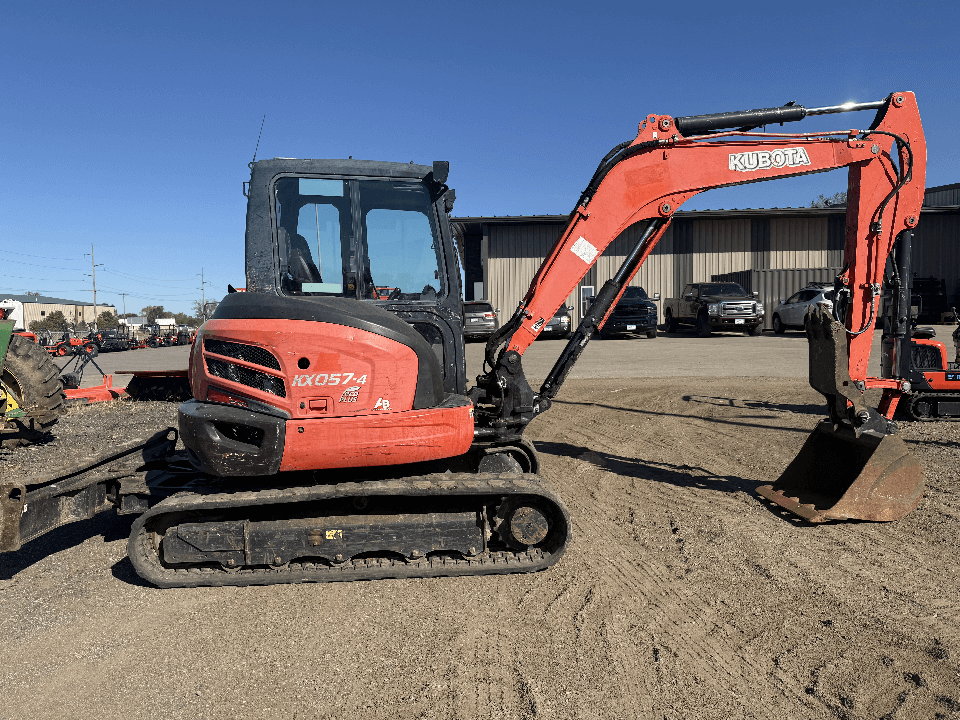

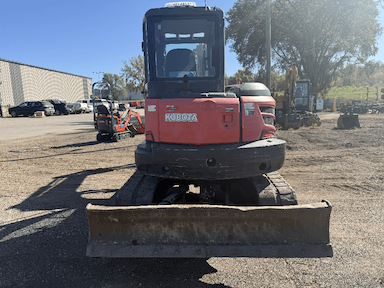

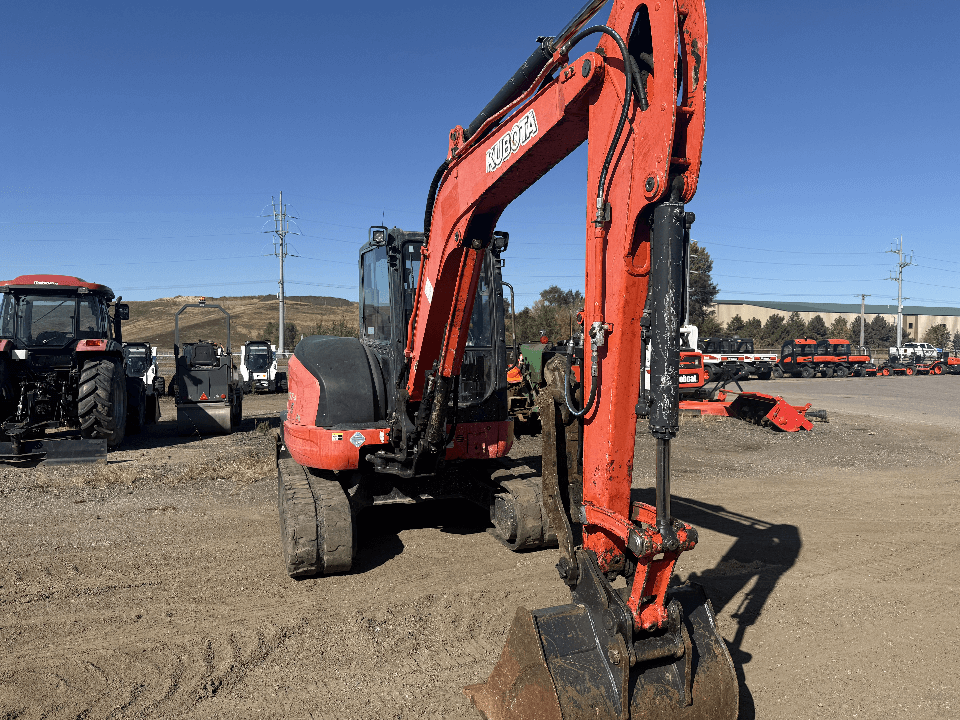

2018 Kubota KX057-4R3A Mini Excavators 184502

Mini Excavator-Rubber Track-A/C Cab-Angle Blade

Engine:

• Model: Kubota V2607-CR-E4

• Type: 4-cylinder, liquid-cooled diesel

• Gross Power: 47.6 hp @ 2,200 rpm (SAE J1995)

• Net Power: 46.4 hp (SAE J1349)

• Fuel Tank Capacity: 19.8 gallons (75 L)

Operating Weight:

• 13,051 lb (5,920 kg)

Dimensions:

• Overall Width: 6 ft 5.2 in (1,960 mm)

• Overall Height: 8 ft 4.4 in (2,550 mm)

• Overall Length: 18 ft 1 in (5,510 mm)

• Ground Clearance: 14.6 in (370 mm)

• Tail Swing Radius: 4 ft 3.6 in (1,310 mm)

Performance:

• Maximum Digging Depth: 12 ft 9 in (3,890 mm)

• Maximum Dumping Height: 13 ft 2 in (4,010 mm)

• Maximum Reach at Ground Level: 20 ft 1 in (6,120 mm)

• Bucket Digging Force: 10,172 lb (46.4 kN)

• Arm Digging Force: 5,463 lb (24.3 kN)

• Maximum Vertical Wall Depth: 9 ft 11 in (3,020 mm)

Travel Speed:

• Low: 1.7 mph (2.7 km/h)

• High: 3.0 mph (4.8 km/h)

Swing System:

• Swing Speed: 9.4 rpm

Hydraulic System:

• Pump Capacity: 12.7 + 12.7 + 9.2 gpm (48.1 + 48.1 + 34.7 L/min)

• Auxiliary Flow: 19.8 gpm (75 L/min)

• Hydraulic Reservoir: 14.8 gallons (56 L)

Blade Dimensions:

• Width: 78 in (1,980 mm)

• Height: 17.3 in (440 mm)

• Blade Lift Above Ground: 17.3 in (440 mm)

• Blade Drop Below Ground: 16.1 in (410 mm)

Undercarriage:

• Track Width: 15.7 in (400 mm)

• Ground Pressure: 4.6 psi (31.8 kPa)
