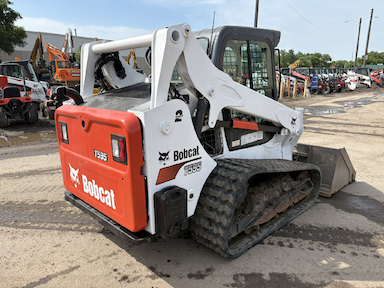

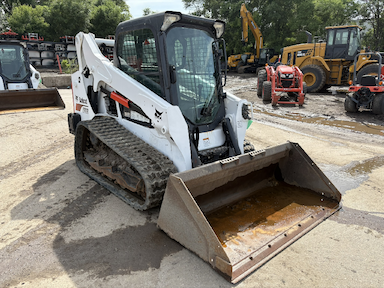

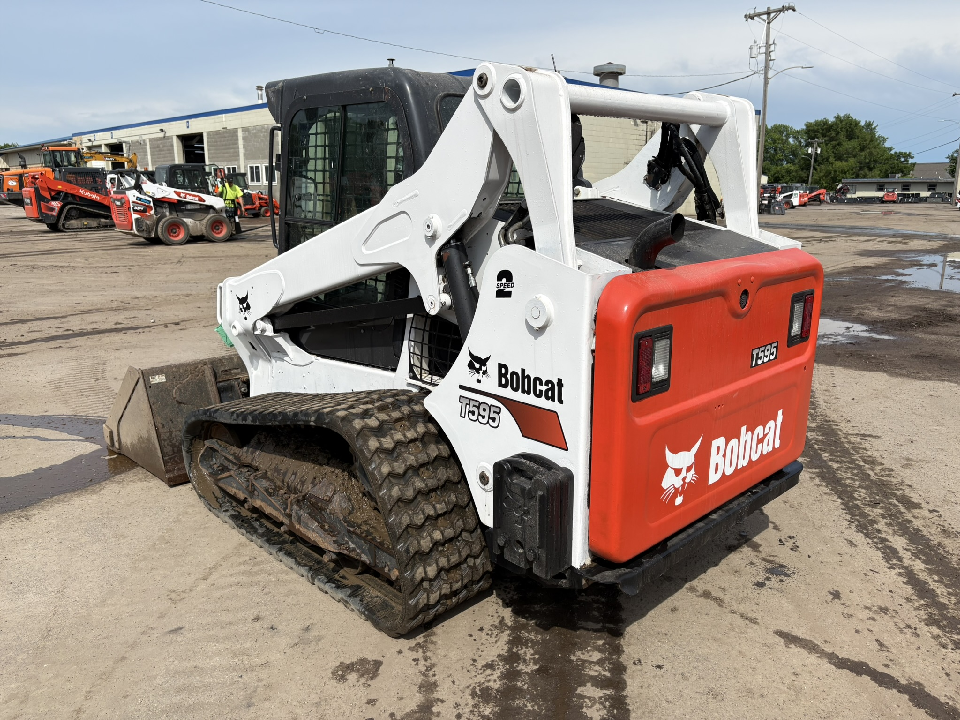

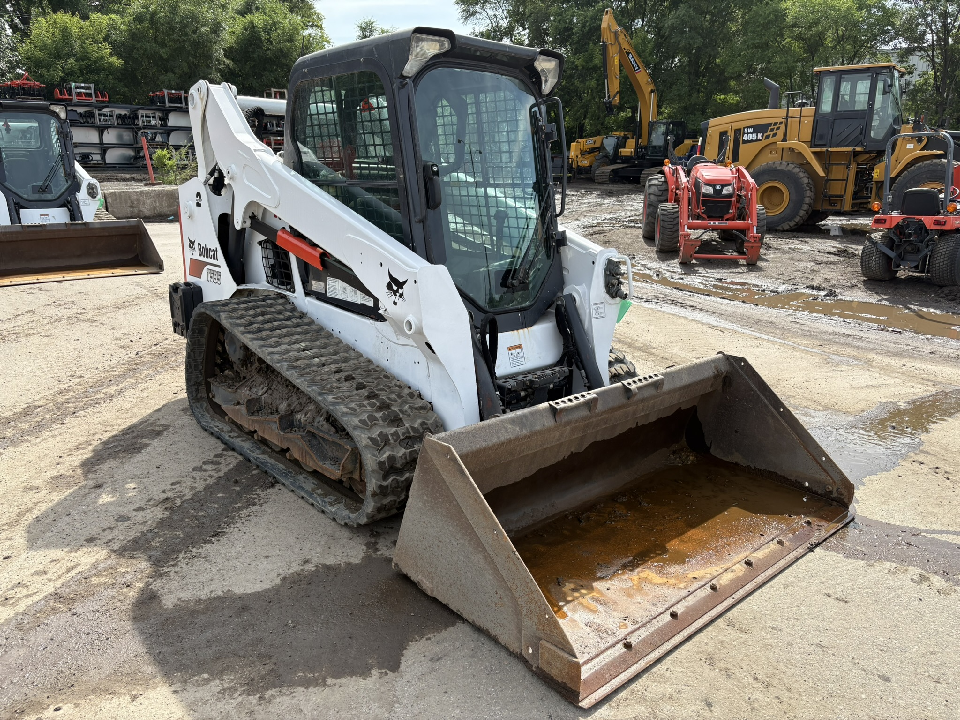

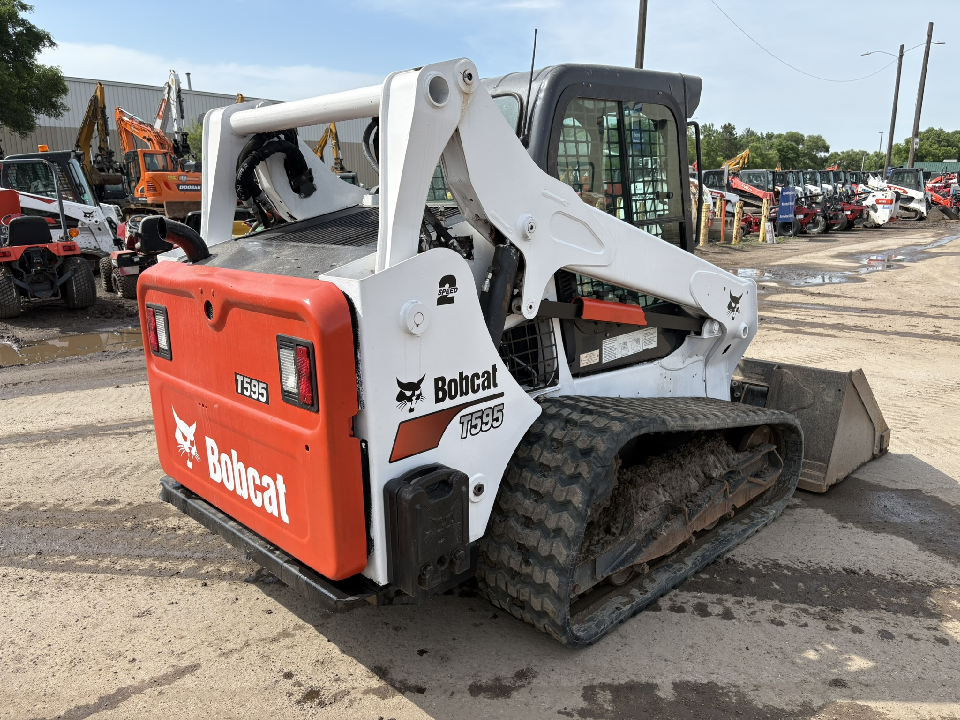

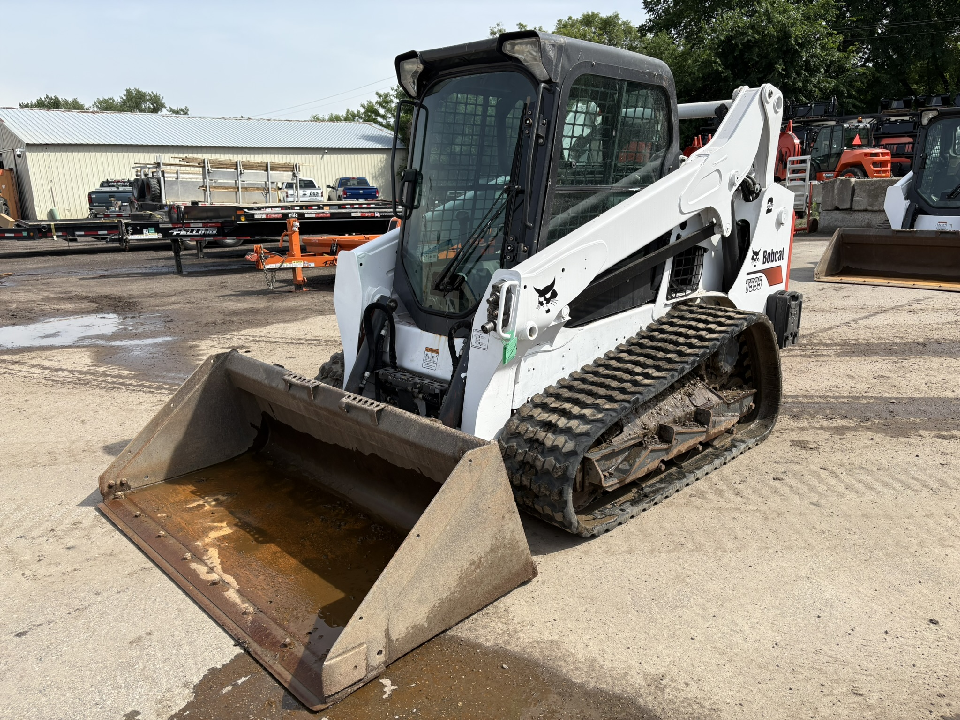

2019 Bobcat T595 Compact Track Loaders 184841

CTL-A71-2 SPD-Susp-16 Tracks-HTD Seat-Radio

• Engine

  • Bobcat turbo diesel

  • 4-cylinder

  • Gross horsepower: approx. 70 HP

  • Liquid cooled

  • Tier 4 emissions compliant

• Rated Operating Capacity

  • Approx. 2,100 – 2,200 lbs (ISO rating)

• Tipping Load

  • Approx. 6,517 lbs

• Operating Weight

  • Approx. 7,822 – 8,055 lbs (varies by configuration)

• Hydraulics

  • Standard auxiliary flow: approx. 17.1 GPM

  • High flow (optional): approx. 26.7 GPM

  • System pressure: approx. 3,500 PSI

• Travel Speed

  • Low range: approx. 7.1 MPH

  • High range (2-speed): approx. 10.4 MPH

• Fuel Capacity

  • Approx. 36.5 gallons

• Dimensions

  • Width: approx. 67 in

  • Height to cab: approx. 77.8 in

  • Length without attachment: approx. 104.5 in

  • Length with bucket: approx. 133 in

  • Hinge pin height: approx. 119 in

  • Reach at max height: approx. 34.9 in

• Loader Performance

  • Vertical lift path

  • Ground pressure approx. 5.1 PSI

• Undercarriage

  • Torsion suspension undercarriage

  • 16 in rubber tracks

• Cab / A71 Package

  • Enclosed cab

  • Heat and A/C

  • 2-speed travel

  • Heated seat

  • Radio

  • Hand and foot controls
