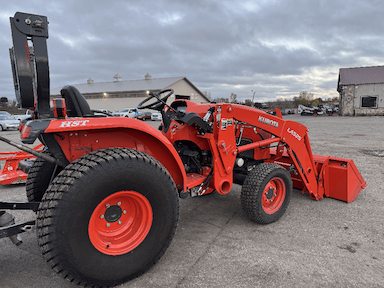

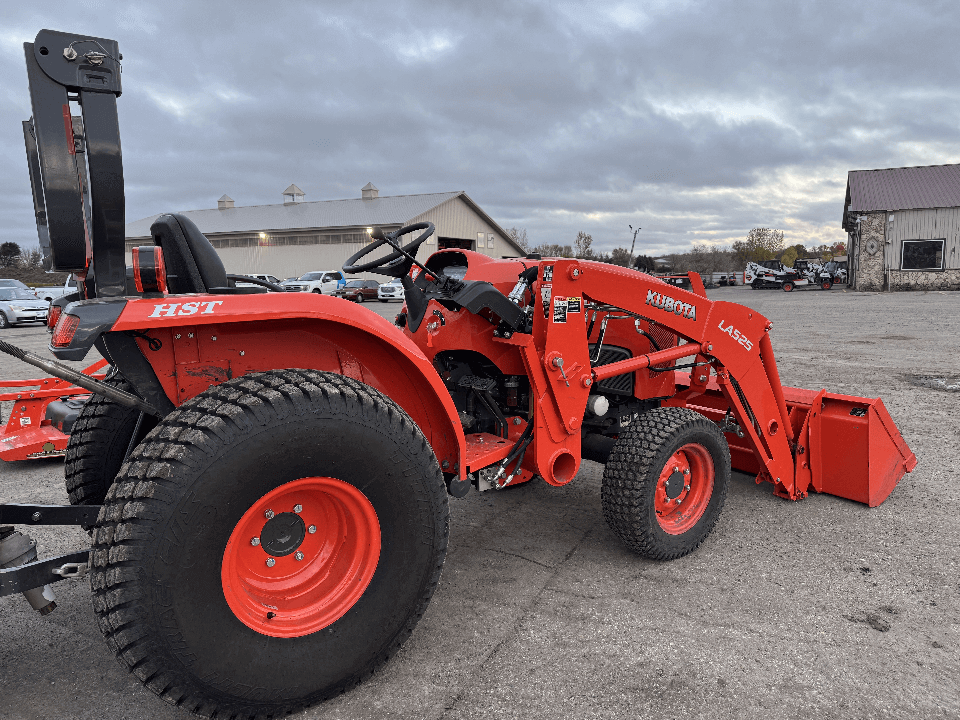

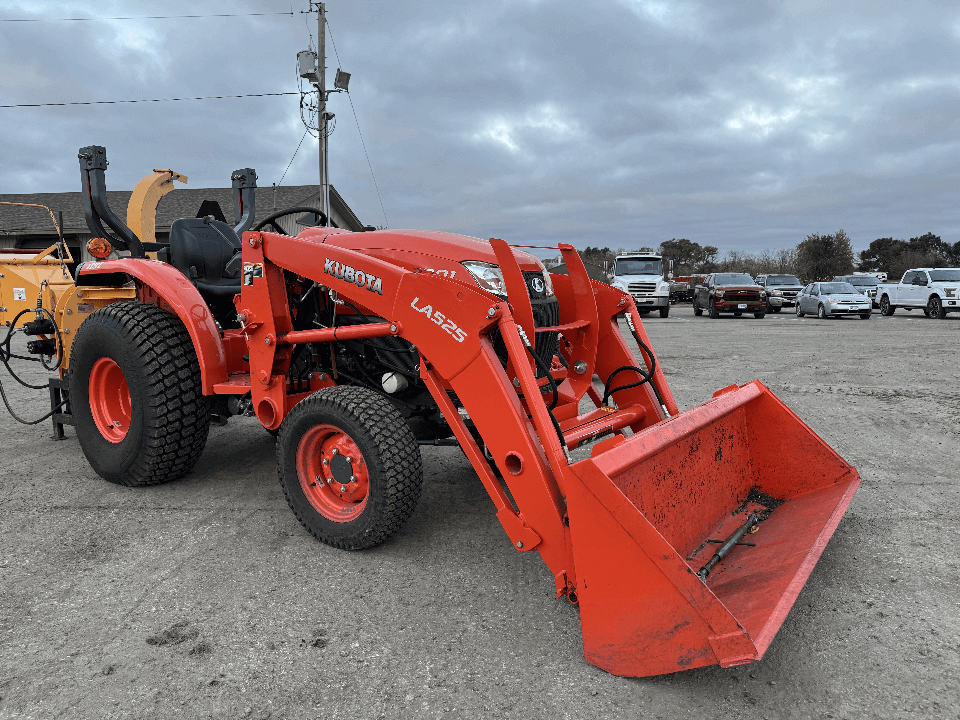

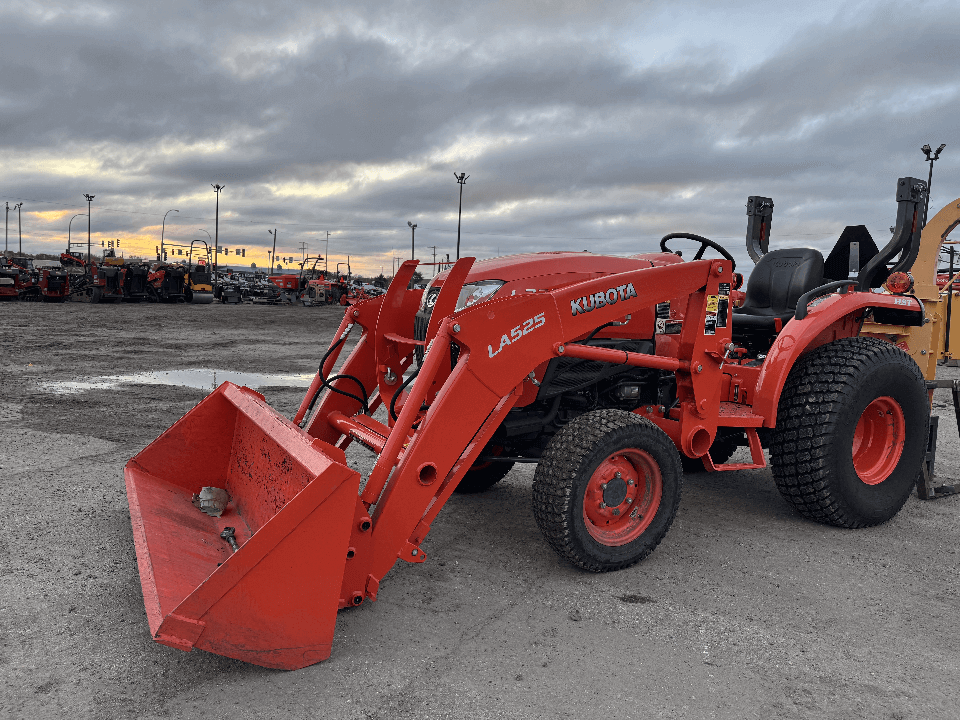

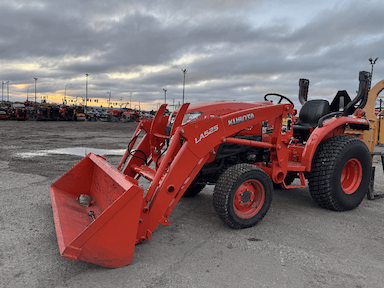

2019 Kubota L3301HST Tractors 183090

Tractor-4WD-Hydrostatic--LA525 Loader

Engine: 3-cylinder, liquid-cooled diesel (Kubota model D1803-CR-E4-LB2)
Gross Horsepower: 33.0 HP @ 2700 rpm
Net Horsepower: 31.4 HP @ 2700 rpm
PTO Horsepower (HST): 26.2 HP
Displacement: 111.4 cu. in. (1.826 L)
Maximum Torque: 73.2 ft-lb @ 1500–1700 rpm
Fuel Tank Capacity: 11.1 gallons
Transmission: 3-range Hydrostatic (HST) with forward/reverse pedal control

Dimensions and Weight:
Overall Length: 108 inches
Width: 55–56 inches (varies with tires)
Ground Clearance: 13 inches
Operating Weight: 2,777–2,780 lbs (varies by configuration)

Hydraulics and Hitch:
3-Point Hitch: Category 1
Lift Capacity @ 24” behind lift point: 1,433 lbs
Hydraulic System Pressure: 2,349 psi
Implement Pump Flow: 6.3 gal/min

Additional Features:

• 4WD standard on HST version

• Live independent rear PTO

• Tier 4 Final emissions-compliant diesel engine

• Compatible with front loader and backhoe attachments
