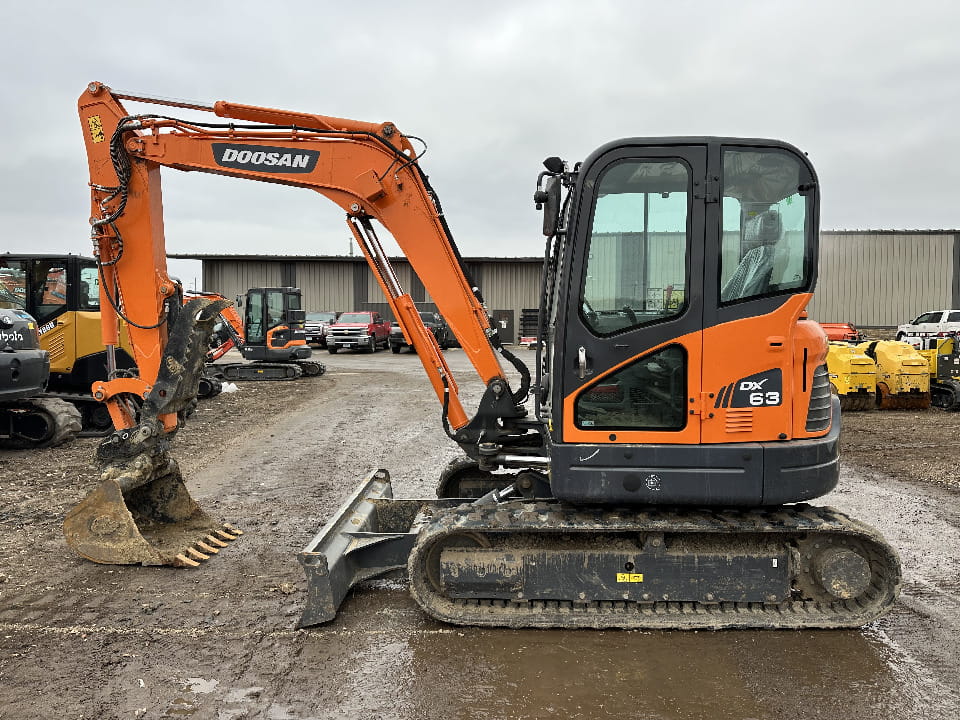

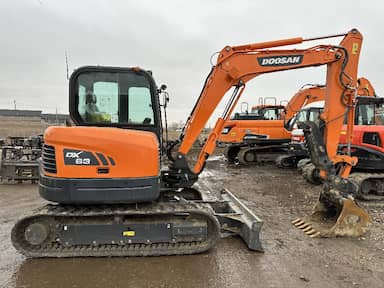

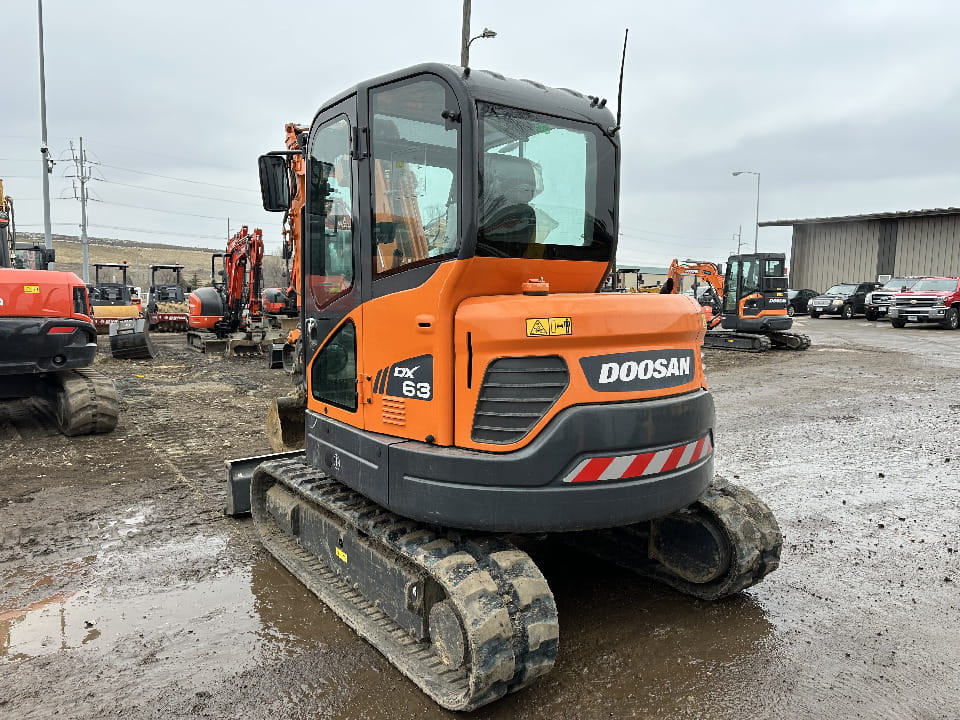

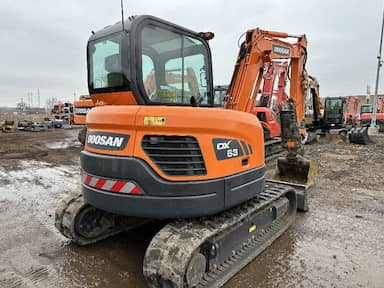

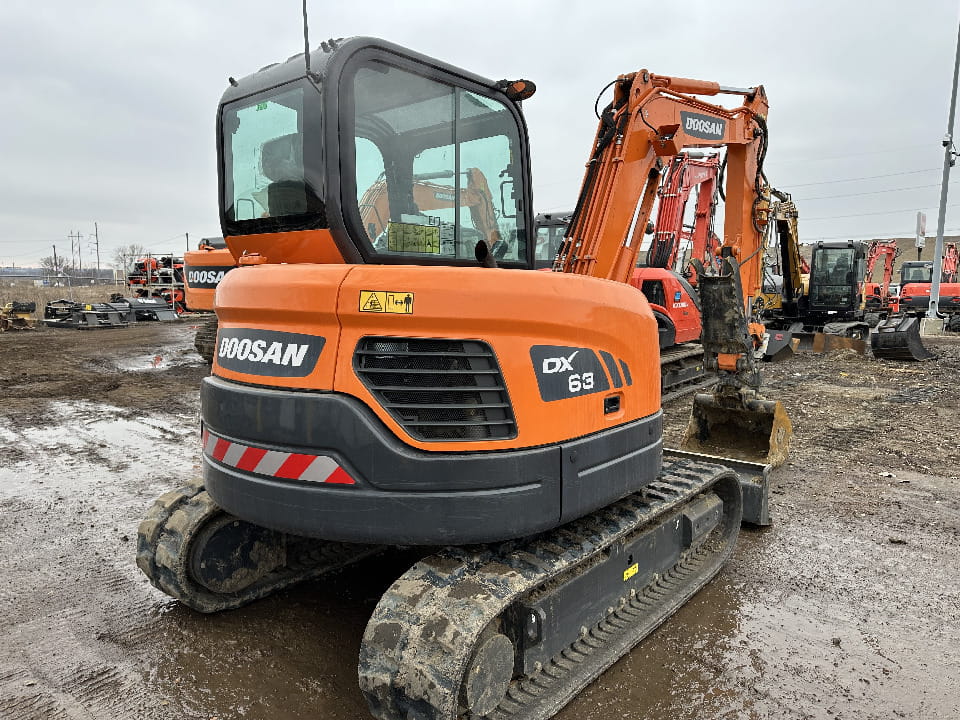

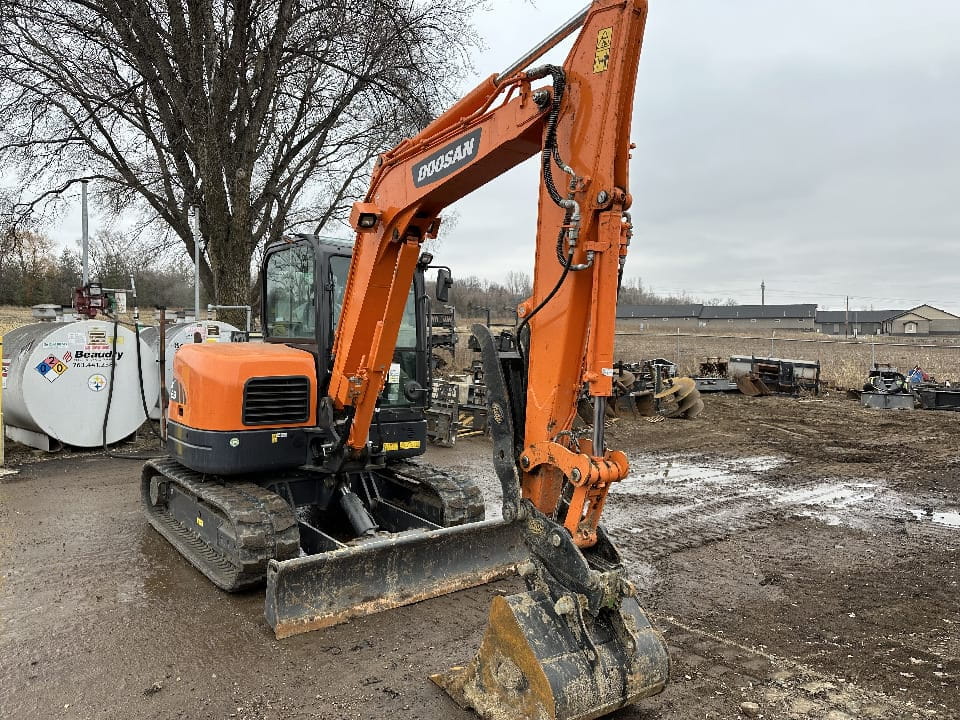

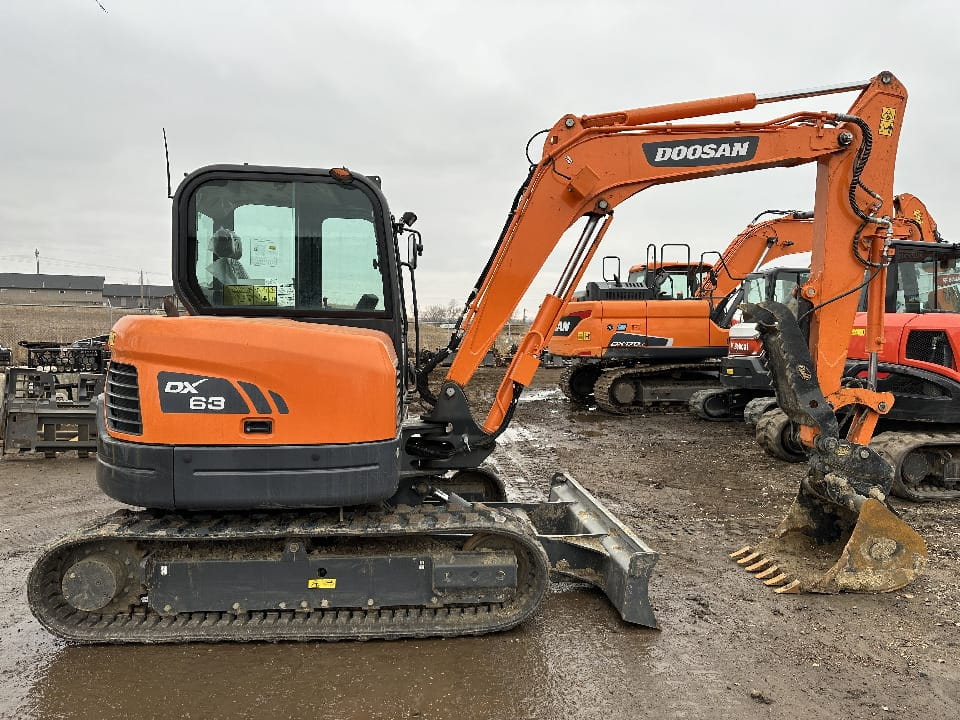

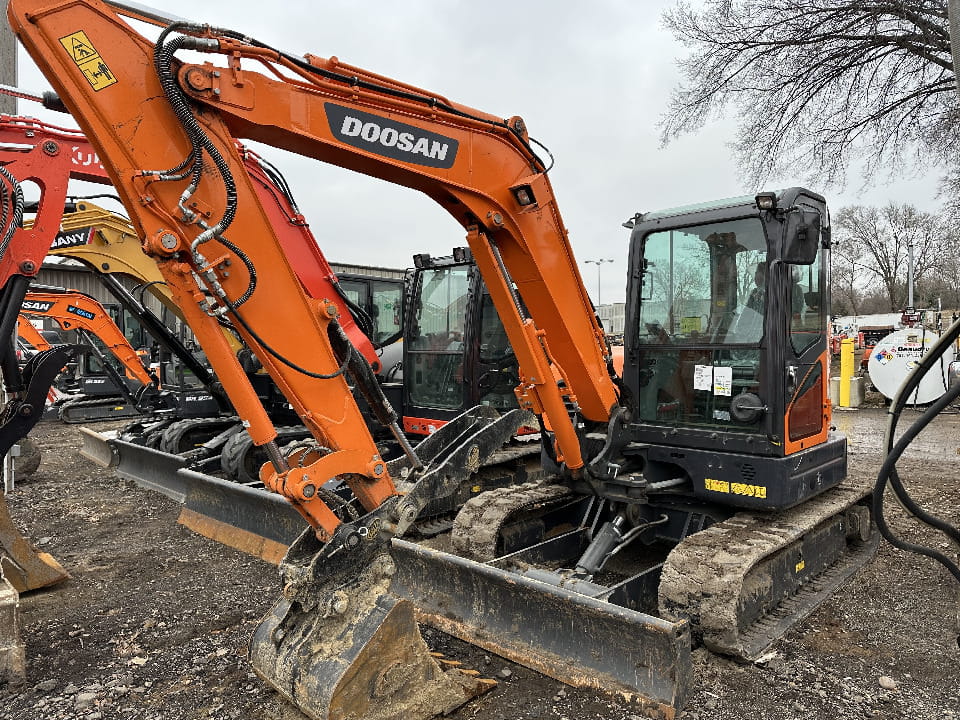

DEVELON DX63-3 DOOSAN EXCAVATOR,CAB,A/C,US10 Excavator 2022 - 217573
Shipping Length Of Unit
18.66ft in
Shipping Height Of Unit
7.71ft in
Max Loading Height
13.98ft in
Max Reach Along Ground
20.44ft in
Max Vertical Wall Digging Depth
11.27ft in
Max Digging Depth
13.51ft in
Max Digging Height
19.71ft in
Min Digging Reach
20.85ft in
Boom/Stick Option (Hex) 1
BOOM 9\' 6\" (2900)
Height To Top Of Cab
3.06ft in
Undercarriage Width
0.6ft in
Cab Height
100.4in
Cab Width
3379.27ft in
Removal Counterweight Clearance
2.09ft in
Track Height
23.23in
Track Length
98.43in
Track Shoe Width
1.32ft in
Track Gauge
5.19ft in
Number Of Upper Rollers
1
Drawbar Pull
12346lb
Number Of Shoes Per Side
39
Number Of Lower Rollers
5
Number Of Cylinders
4
Engine Make
Yanmar
Engine Model
4TNV98C
Gross Power
59.4hp
Net Power
58.6hp
Power Measured @
2100rpm
Displacement
203cu in
Max Torque
178lb ft
Torque Measured @
1365rpm
Bore
3.9in
Stroke
4.4in
Fuel Capacity
20.7gal
Cooling System Fluid Capacity
2.7gal
Hydraulic System Fluid Capacity
29.4gal
Engine Oil Capacity
2.7gal
Swing Drive Fluid Capacity
0.4gal
Hydraulic Tank
17.2gal
Swing Torque
9526lb ft
Swing Speed
9.4rpm
Relief Pressure -Normal
3627psi
Main Pump
34.9gal/min
| Brand | Develon |
| Condition | Used |
| Model | DX63-3 |
| Year | 2022 |
