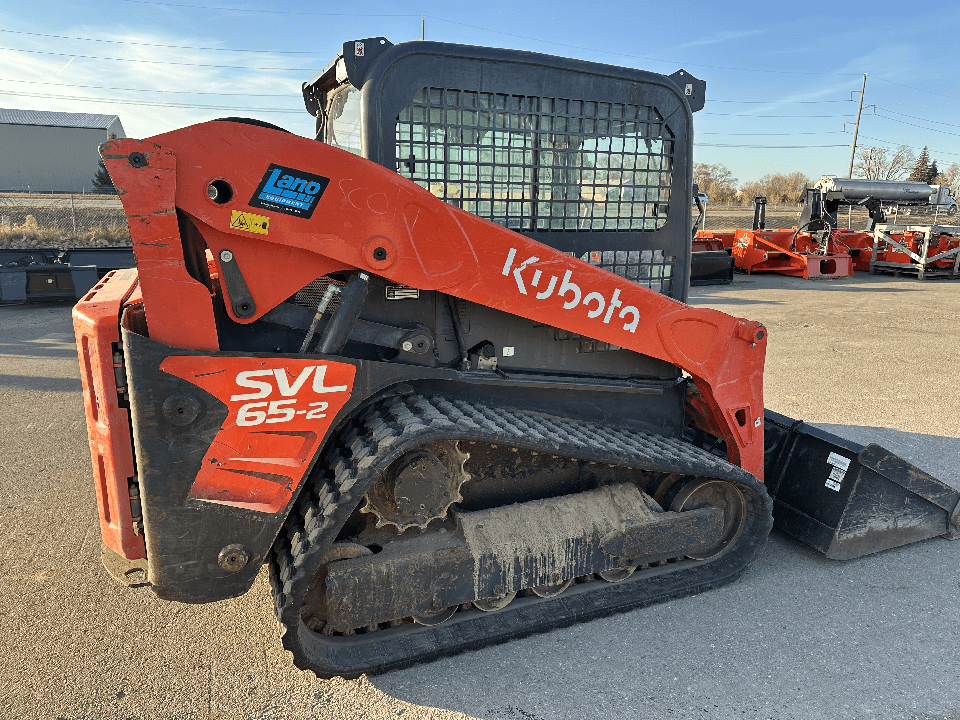

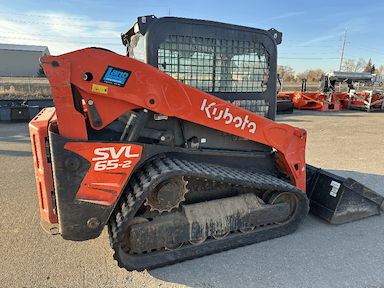

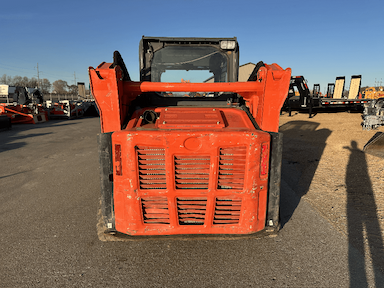

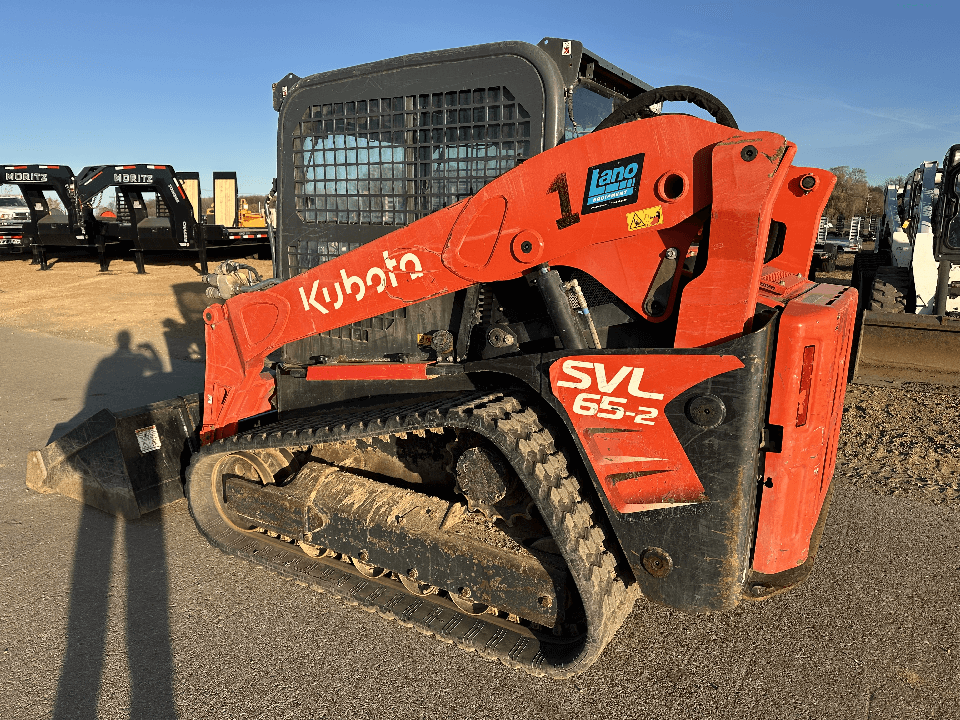

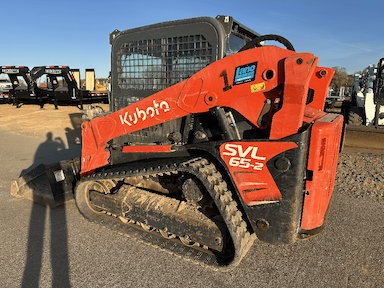

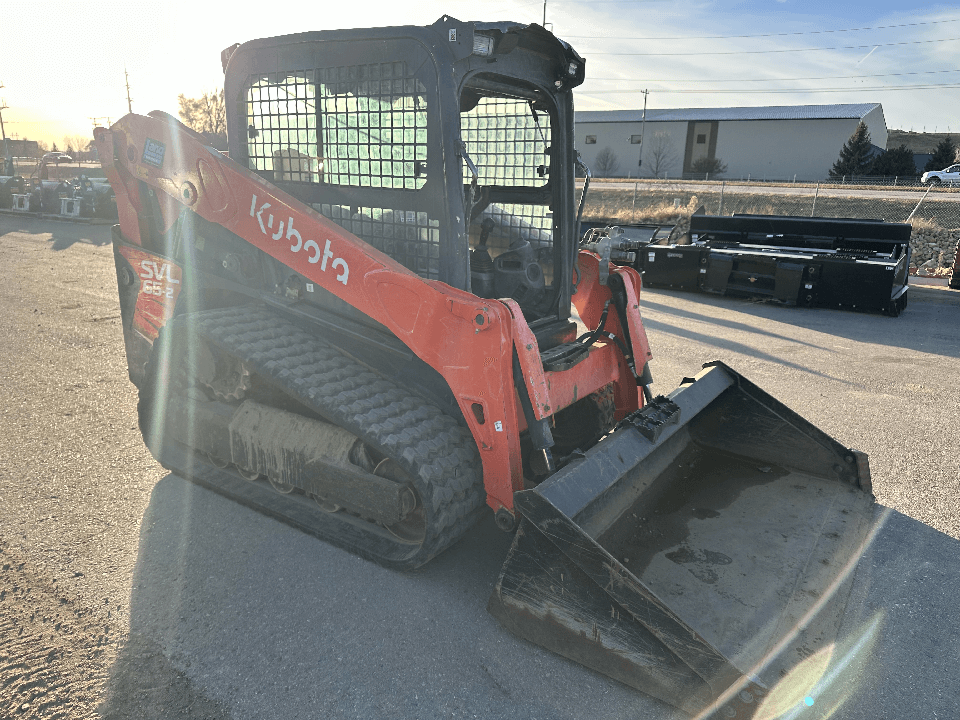

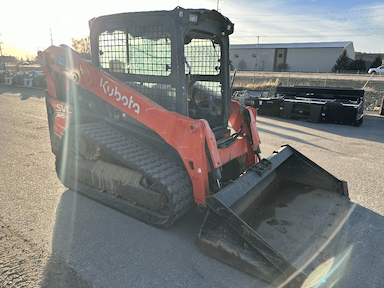

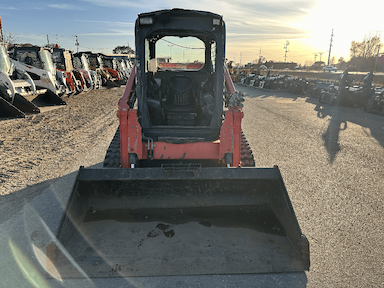

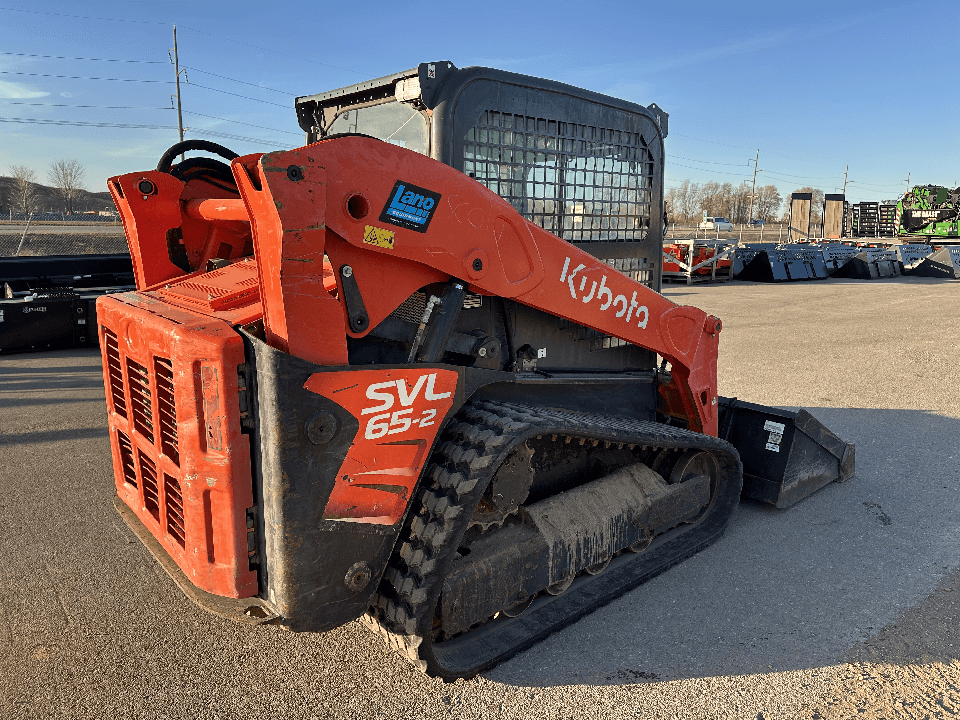

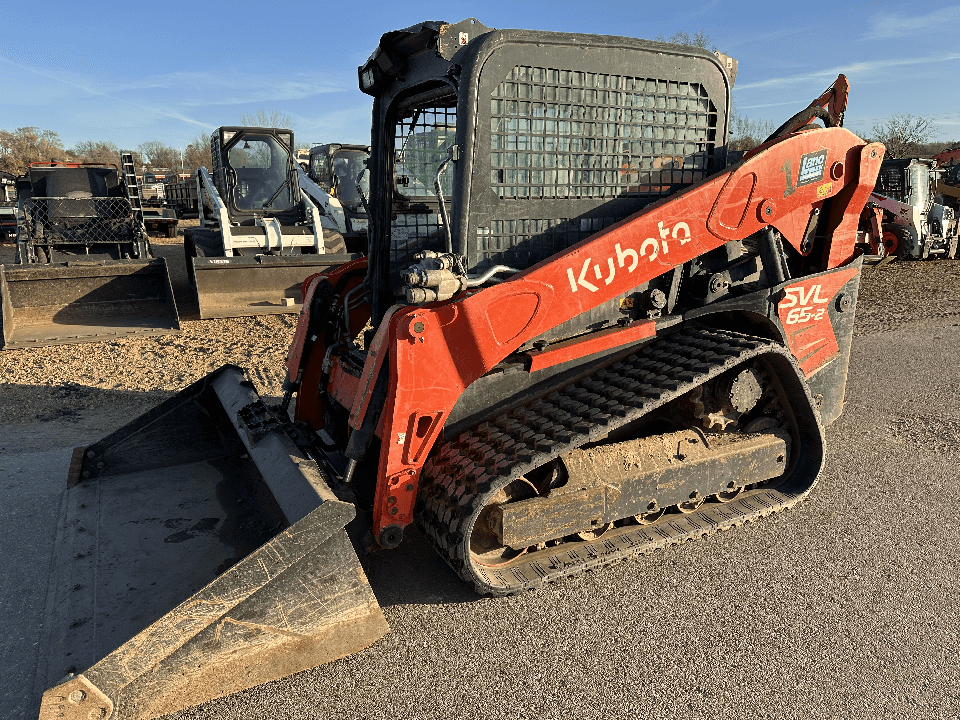

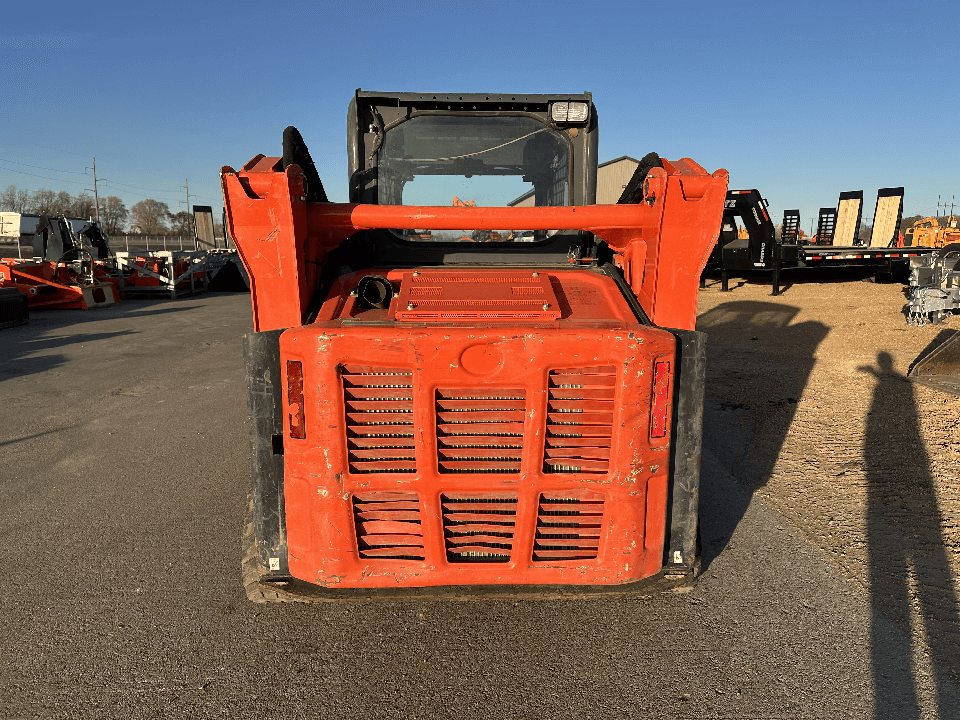

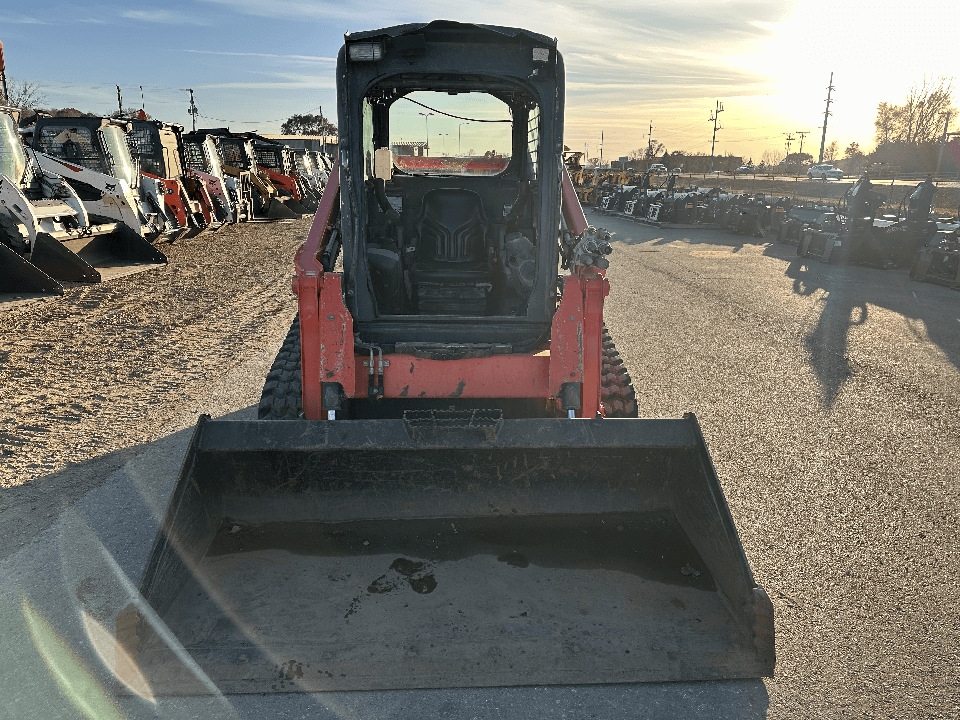

2022 KUBOTA SVL65-2HFWC 221355

CTL-A/C Cab/Heat-Hi Flo-Hyd QC-15" Tracks

Engine & Power

• Engine: Kubota 4-cyl turbocharged diesel

• Gross Horsepower: 68.4 hp @ 2,600 rpm

• Net Horsepower: 62.5 hp

• Displacement: 159.6 cu in (2.6 L)

• Fuel Tank Capacity: 28.8 gal

Operating Specs

• Rated Operating Capacity (35% ROC): 2,100 lb

• Operating Capacity (50% tipping): 3,000 lb

• Tipping Load: 6,000 lb

• Bucket Breakout Force: approx. 4,614 lb

• Lift Arm Breakout Force: approx. 4,266 lb

• Operating Weight: approx. 8,035 lb

• Travel Speed: approx. 7.1 mph (2-speed standard on HFWC)

Hydraulic System

• Standard Auxiliary Flow: approx. 17.4 gpm

• High-Flow Auxiliary Hydraulics: approx. 27.0 gpm (HFWC equipped)

• Hydraulic System Relief Pressure: approx. 3,500 psi

• 14-Pin Electrical Connector: High-flow configuration compatible

Tracks & Undercarriage

• Track Width (Standard): 12.6 in rubber

• Track Width (Wide Track Option): 15.0 in rubber (HFWC typically equipped)

• Ground Pressure: approx. 4.9 psi with standard tracks

• Ground Clearance: 9.2 in

Dimensions

• Length without Bucket: 107.3 in

• Length with Bucket on Ground: 136.4 in

• Height to Cab Top: 79.9 in

• Width over Tracks (Standard): 65.2 in

• Height to Bucket Hinge Pin: approx. 120 in

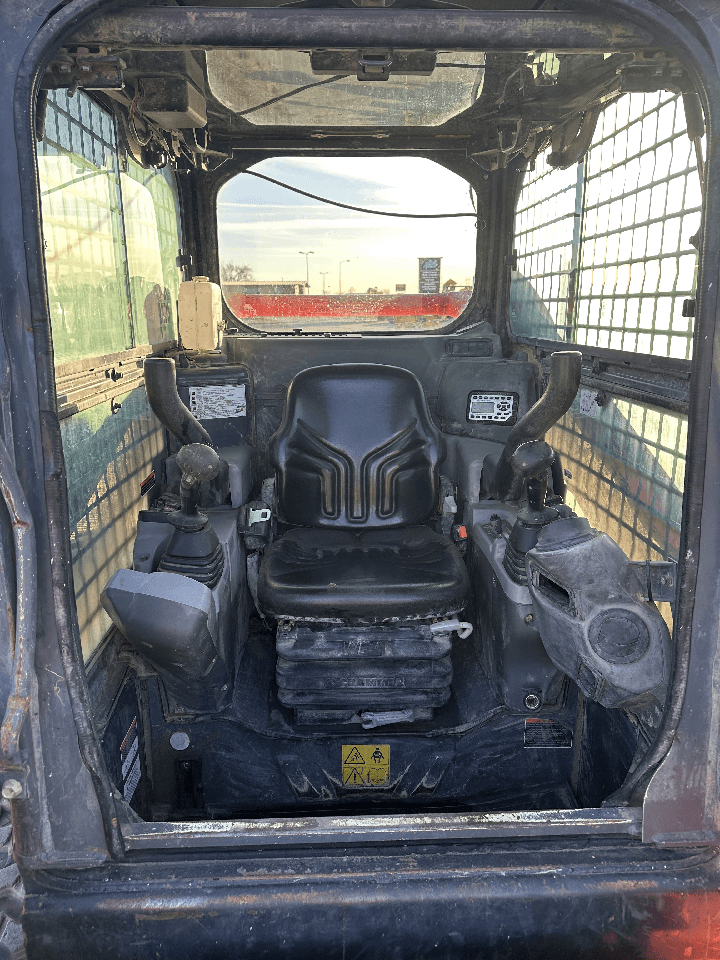

Controls & Operator Station

• Controls: Pilot joystick controls

• Cab: Enclosed cab with heat and A/C (HFWC standard)

• Front Door: Sliding front entry door operable with loader arms raised

• Visibility: 360° sightlines, large roof window for lift-height visibility

• Seat: Suspension / optional air-ride depending on configuration

Standard Features

• Vertical-Lift Loader Arm Path

• Self-Leveling (Up Direction)

• Two-Speed Travel

• Tilt-Up Cab for Service Access

• Standard Hydraulic Quick-Attach (mechanical or hydraulic depending on build)

HFWC Package Feature Summary

• H = Enclosed Cab with Heat & A/C

• F = High-Flow Hydraulics

• W = Wide Tracks (commonly fitted 15 in)

• C = Cab Level Controls / Quick-Attach / Electrical attachment compatibility

Common Dealer/Factory Options That May Be Equipped

• Hydraulic quick-attach / quick coupler

• 14-pin attachment control harness

• Radio/Bluetooth audio system

• LED work light package

• Back-up alarm & rear camera kit

• Heavy-duty or smooth-ride track options
