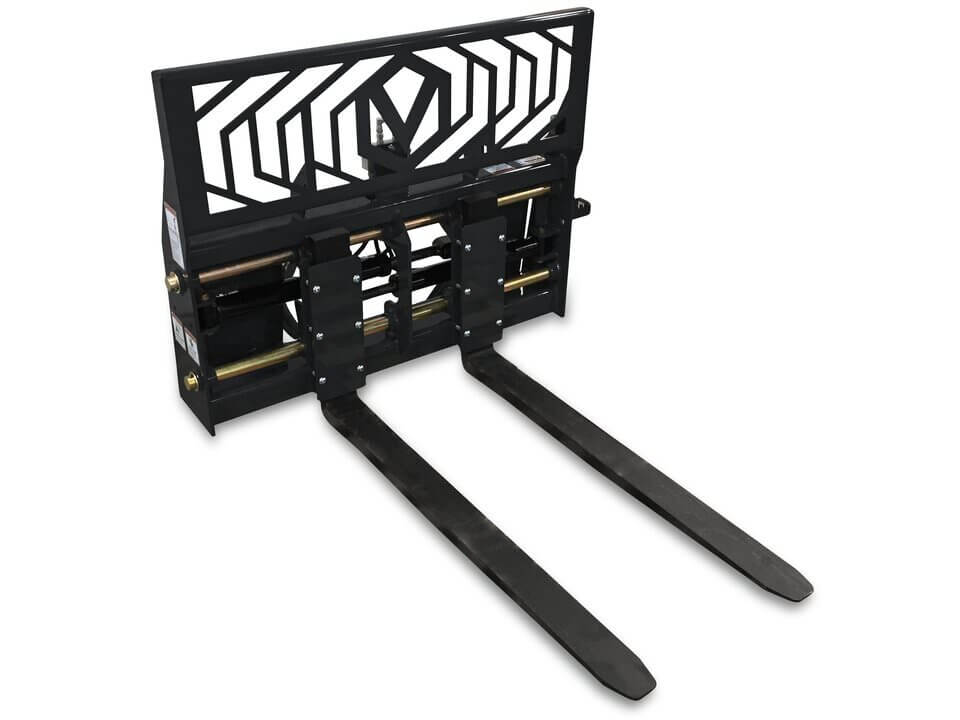

2022 Virnig PFHA48 Hydraulic Pallet Fork Attachment

VIRNIG PFHA48TG HYDRAULIC PFKS, 5500 LB CAP

Virnig PFHA48 Hydraulic Adjust Pallet Fork Specs

Model: Virnig PFHA48
Type: Hydraulic adjustable pallet fork attachment
Application: Pallet handling, material transport, construction, landscaping, and agriculture
Compatibility: Skid steer loaders (SSL) and compact track loaders (CTL)

Fork Specifications

• Overall width (with step): 53.9 in
• Frame width: 50.1 in
• Overall height: 40.1 in
• Fork tine length: 48.0 in
• Fork tine width: 4.0 in
• Fork tine thickness: 1.5 in
• Adjustable tine spacing: 7.8 in – 38.2 in
• Approximate weight: 705 lb
• Rated capacity: 5,500 lb
• Recommended loader capacity: Greater than 1,500 lb ROC

Hydraulic System

• Hydraulic tine adjustment from inside cab
• Cylinder bore/stroke: 2.0 in × 16.0 in
• Cylinder pin diameter: 1.0 in
• Heavy-duty 1-9/16" diameter shaft
• Designed for skid steer auxiliary hydraulic systems

Construction Features

• ITA Class II forged steel tines
• High-visibility brickguard for improved operator sight lines
• Angled mount plate optimized for skid loader geometry
• Unique holder design allows use of standard tines instead of costly shaft-style tines
• Bolt-on side step installs on either side
• Heavy-duty commercial-grade steel frame construction

Performance Design

• Hydraulically adjust forks without leaving the cab
• Improves efficiency during pallet and material handling
• Wide spacing range accommodates multiple pallet sizes
• Designed for high-capacity commercial material handling
• Excellent visibility for precise load placement

Compatibility

Designed for:

• Skid steer loaders
• Compact track loaders
• Universal quick attach systems
• Machines with auxiliary hydraulic capability

Common Uses

• Pallet handling
• Construction material transport
• Feed and seed handling
• Lumber and pipe movement
• Landscape supply transport
• Farm and industrial material handling

Key Features

• Hydraulic adjustable fork spacing
• 48" forged ITA Class II tines
• 5,500 lb lifting capacity
• High-visibility brickguard
• Heavy-duty skid steer frame construction
• In-cab fork adjustment capability

Quick Takeaway

The Virnig PFHA48 Hydraulic Adjust Pallet Fork is built for:

• Fast, efficient pallet handling without leaving the cab
• Heavy-duty commercial skid steer material handling
• Flexible fork spacing for varying load sizes
• Durable high-capacity operation in construction, agriculture, and industrial applications
