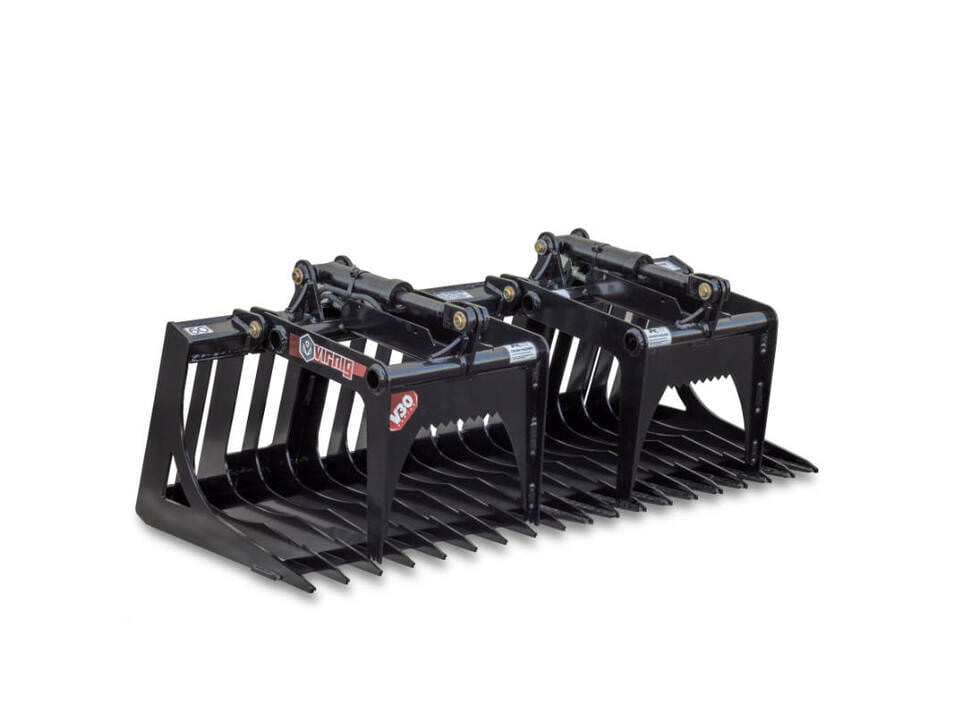

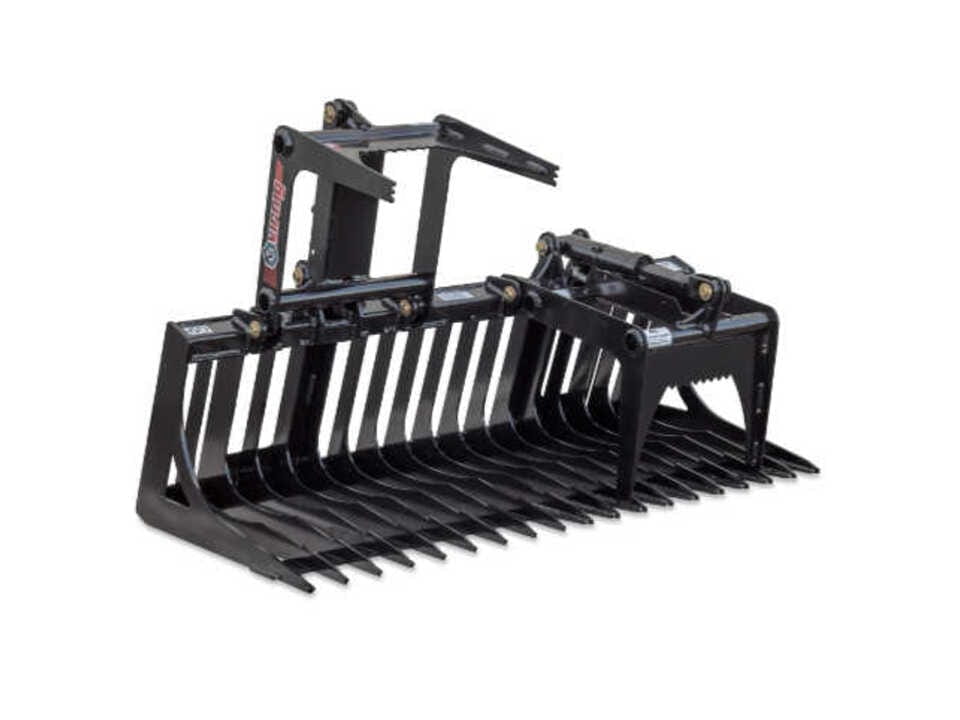

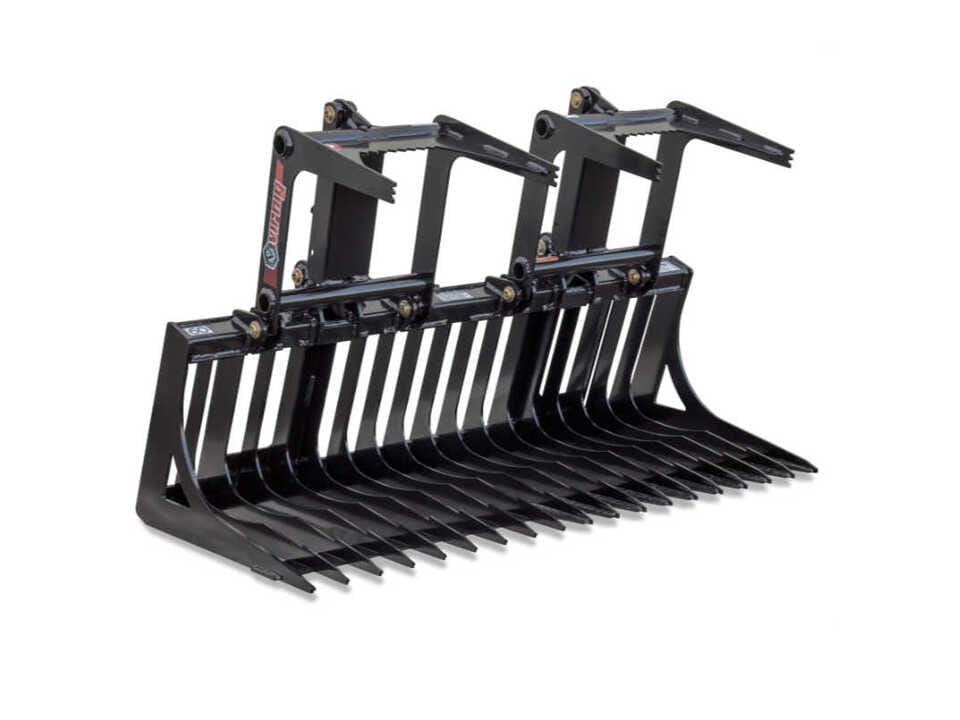

NEW Virnig SRGV48-CT Grapple-V30 Skeleton Rock-48"-Fits Compact Tractor

Grapple-V30 Skeleton Rock-48"-Fits Compact Tractor

Virnig SRGV48-CT V30 Skeleton Rock Grapple Specs (Compact Tractor / CT Mount)

Model: Virnig SRGV48-CT
Series: V30 Compact Tractor Skeleton Rock Grapple
Type: Skeleton rock grapple (light-to-medium duty)
Mount: Compact tractor / skid steer universal mount (CT style interface)
Application: Rock picking, brush cleanup, land clearing, fence line maintenance, and debris separation

Grapple Specifications

• Overall width: 47.9 in
• Overall height: 22.9 in (overall) / 19.0 in (bucket)
• Overall depth: 29.0 in (overall) / 23.5 in (inside)
• Number of tines (with sides): 15
• Tine spacing: 3.1 in
• Tine thickness: 0.25 in (Grade 50 steel)
• Side plate thickness: 0.375 in (Grade 50 steel)
• Grapple jaw opening: 28.7 in
• Approximate weight: ~345 lb
• Recommended loader capacity: Less than 1,500 lb ROC

Construction Features

• One-piece formed 1/4" Grade 50 steel tines for rigidity and durability
• Open skeleton design allows dirt and fines to fall through during use
• Curved side plates help retain and funnel material into the grapple
• Reinforced and gusseted tine structure for added strength
• Rock dam and notch near tine tips help secure uneven loads
• NitroSteel® cylinder rods improve corrosion resistance and wear life
• Teflon® coated bushings reduce friction at pivot points

Hydraulic System

• Cylinder bore/stroke: 2.0 in × 6.0 in
• Cylinder pin diameter: 1.0 in
• Hinge pin diameter: 1.0 in
• Single-cylinder grapple clamp system
• Designed for standard compact tractor auxiliary hydraulics

Performance Design

• Tight 3.1" tine spacing improves rock retention while allowing soil to sift through
• Lightweight design improves performance on compact tractors
• Strong clamp force for brush, rocks, and small logs
• Open frame improves visibility during ground engagement
• Designed for efficient land maintenance and cleanup work

Compatibility

Designed for:

• Compact tractors (CT platforms)
• Skid steers with universal mount (where applicable)
• Small compact utility loaders
• Machines rated under ~1,500 lb ROC

Common Uses

• Rock picking and pasture cleanup
• Brush and limb removal
• Fence line clearing
• Light land clearing and grading prep
• Storm debris cleanup
• Small property maintenance

Key Features

• 48" compact skeleton rock grapple width
• 15-tine rock separation design
• 3.1" tine spacing for balanced sifting and retention
• Lightweight ~345 lb construction
• Single-cylinder hydraulic clamp system
• Built for compact tractor productivity and visibility

Quick Takeaway

The Virnig SRGV48-CT V30 Skeleton Rock Grapple is built for:

• Light-to-medium duty rock and brush cleanup
• Compact tractor work in tight or residential spaces
• Efficient dirt sifting while maintaining load control
• Reliable, low-weight performance for everyday land maintenance
