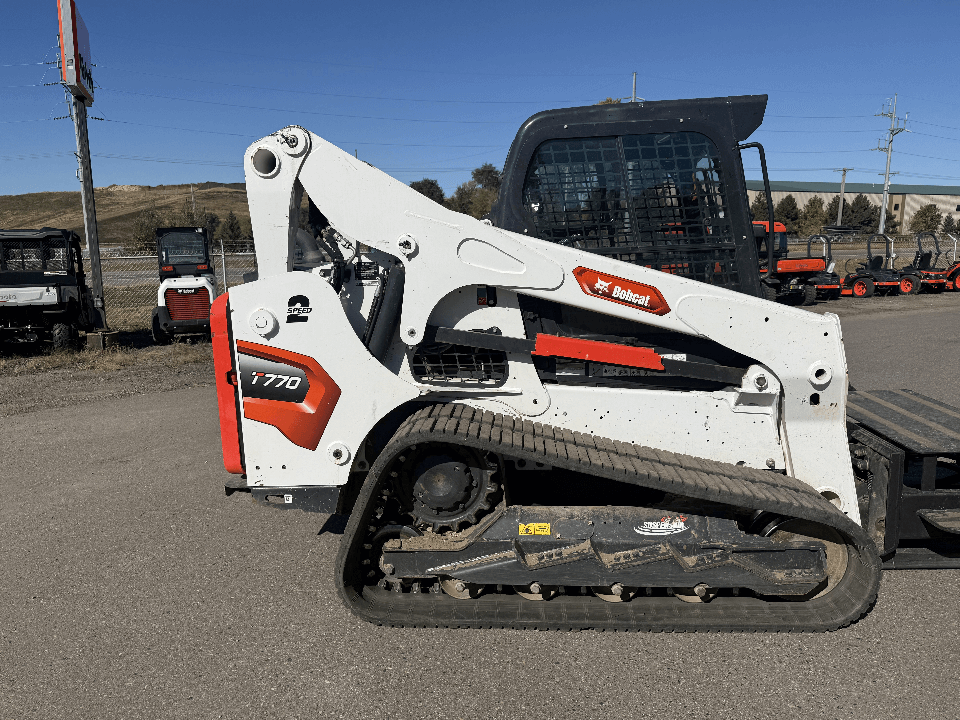

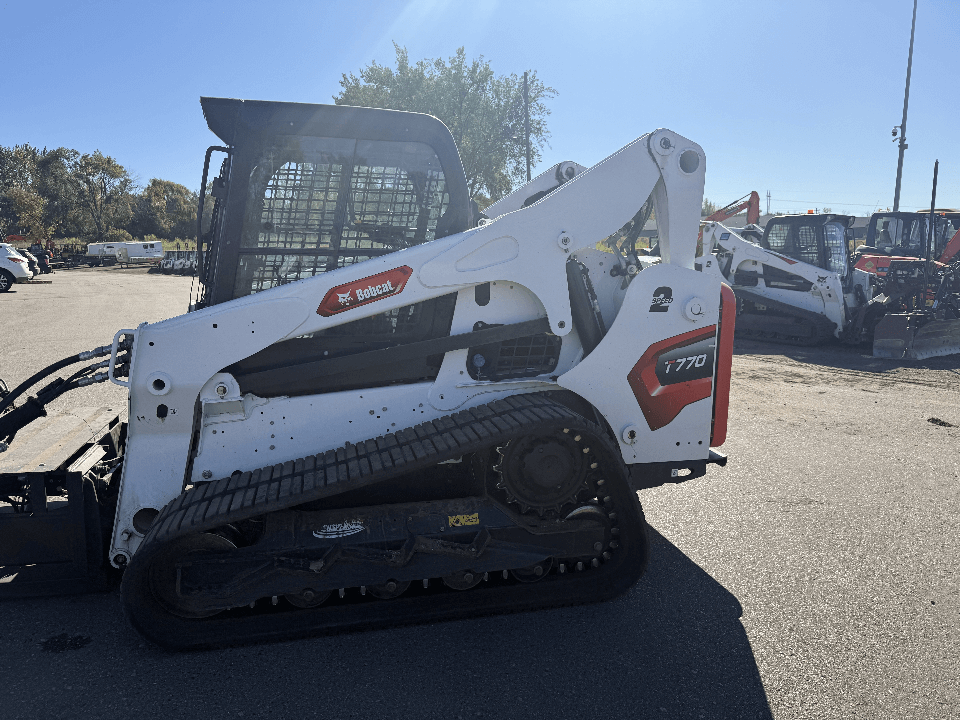

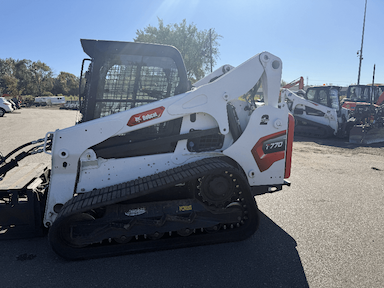

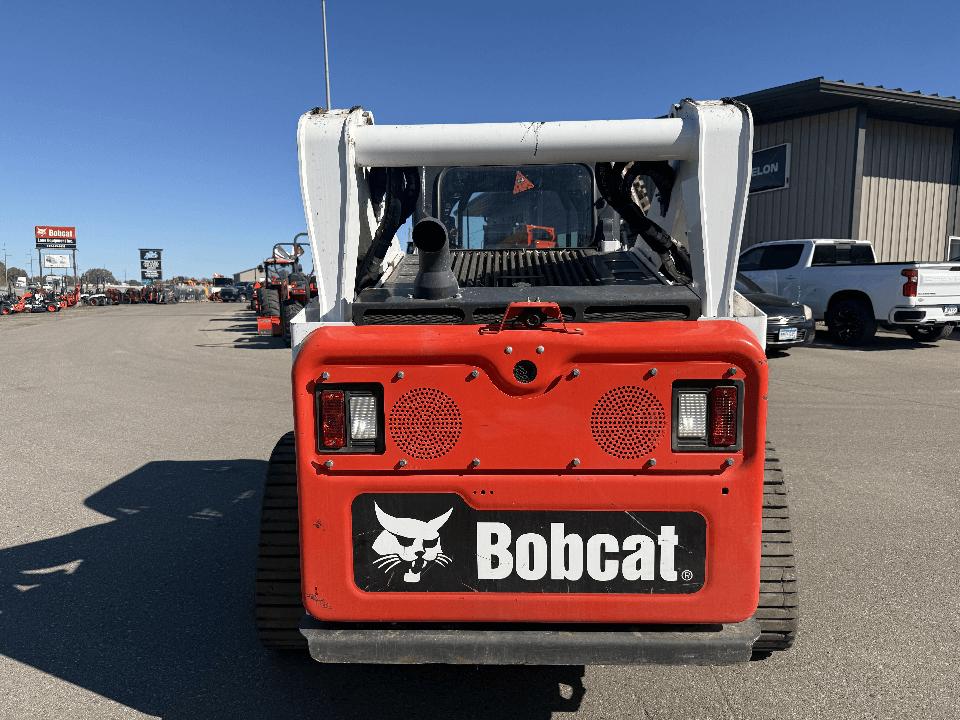

2023 Bobcat T770 Compact Track Loaders 201668

CTL-Deluxe Pkg-SJC-Hi Flo-2 spd-18 Multi Bar-H&S

Engine:

• Horsepower: 92 hp

• Engine Type: Turbocharged diesel, Tier 4 (non-DPF)

• Fuel Capacity: 43.8 gallons (166 L)

Performance:

• Rated Operating Capacity (ISO): 3,475 lb

• Tipping Load: 9,929 lb

• Operating Weight: 10,515 lb

• Ground Pressure: 4.2 psi

Hydraulic System:

• Standard Flow: 23 gpm

• High Flow: 36.6 gpm

• System Relief Pressure: 3,500 psi

Travel Speed:

• Single Speed: 6.6 mph

• Two-Speed: 10.7 mph

Dimensions:

• Length with Bucket: 141.6 in

• Length without Attachment: 114.3 in

• Width (over tracks): 78 in

• Height (top of cab): 81.3 in

• Height to Bucket Hinge Pin: 131.4 in

• Reach at Max Lift / Dump: 35.2 in

• Track Width: 17.7 in (18” Multi-Bar tracks)

• Track Length on Ground: 63.7 in

• Turning Radius: 88 in

• Ground Clearance: 8.0 in

Lift Path:

• Vertical lift design for maximum reach at full height

Capacities:

• Hydraulic Tank: Integrated with main reservoir (factory capacity)

• Fuel Tank: 43.8 gallons

Features (Deluxe Package / SJC / Hi-Flo / 2-Speed):

• Selectable Joystick Controls (SJC)

• High-Flow Hydraulics (36.6 gpm)

• Two-Speed Travel

• Deluxe Instrumentation Panel

• Keyless Start / Password Protection

• Power Bob-Tach™ Attachment Mounting System

• Pressurized Cab with Heat and A/C (optional)

• Suspension Seat and Sound Reduction

• 18” Multi-Bar Rubber Tracks
