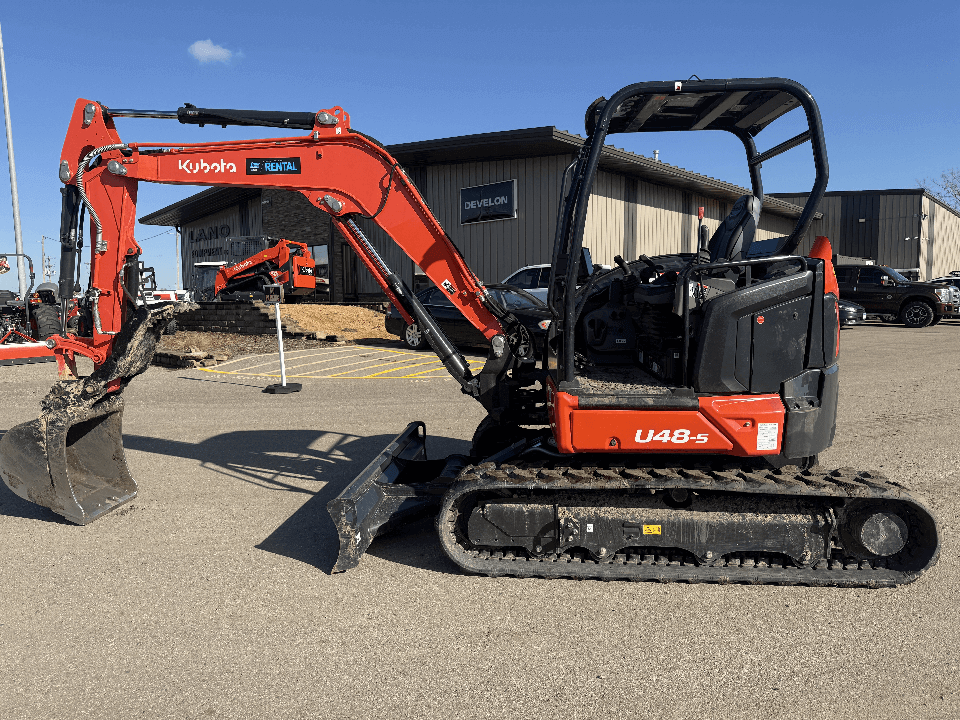

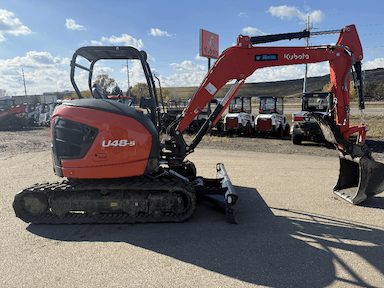

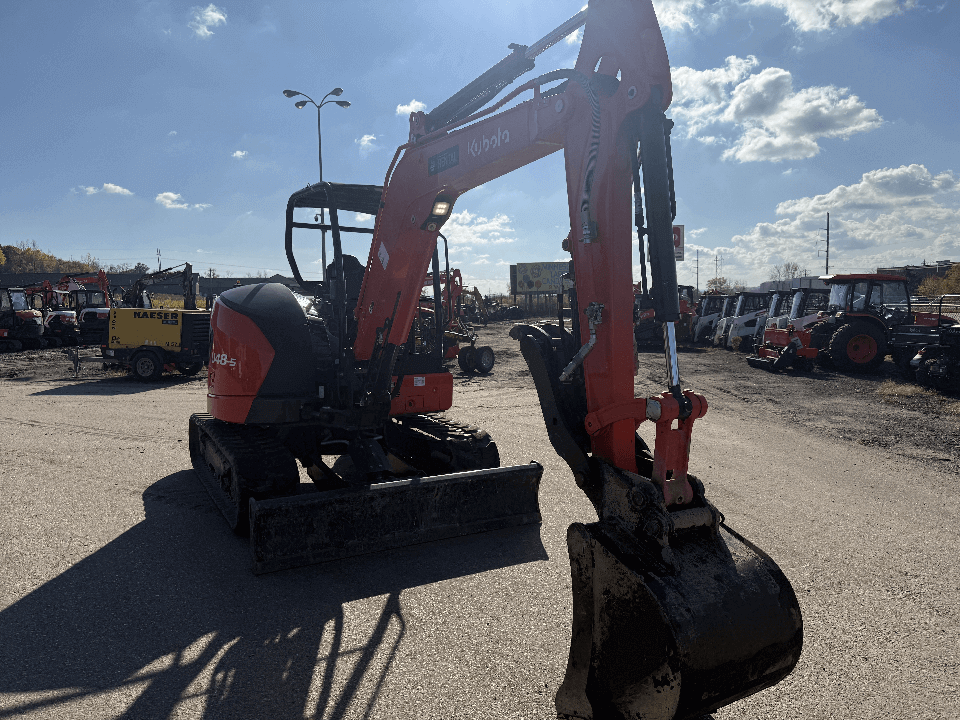

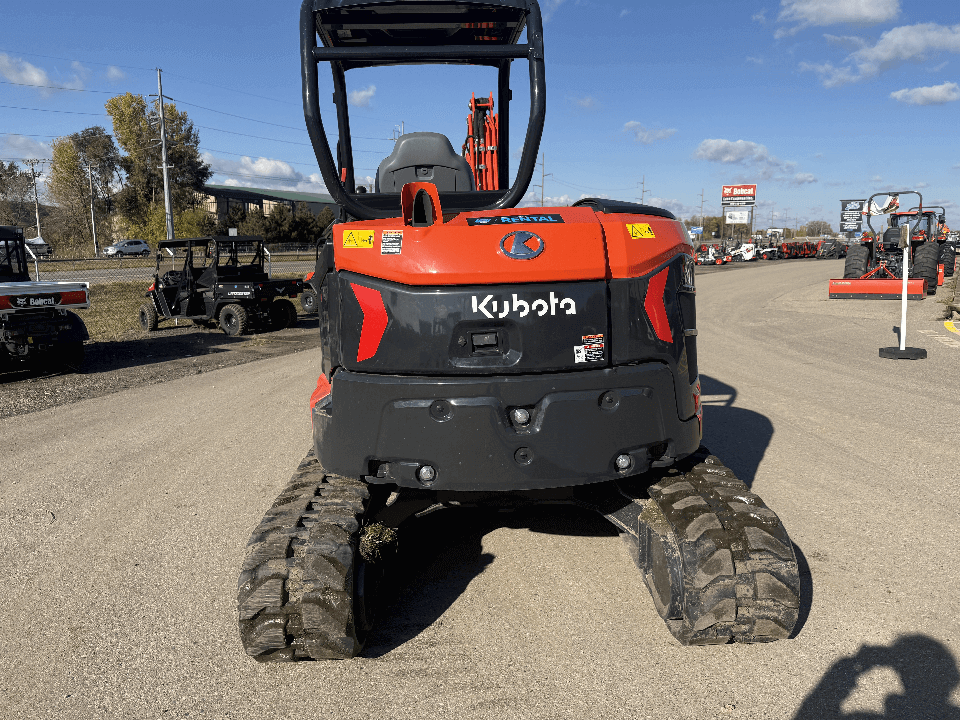

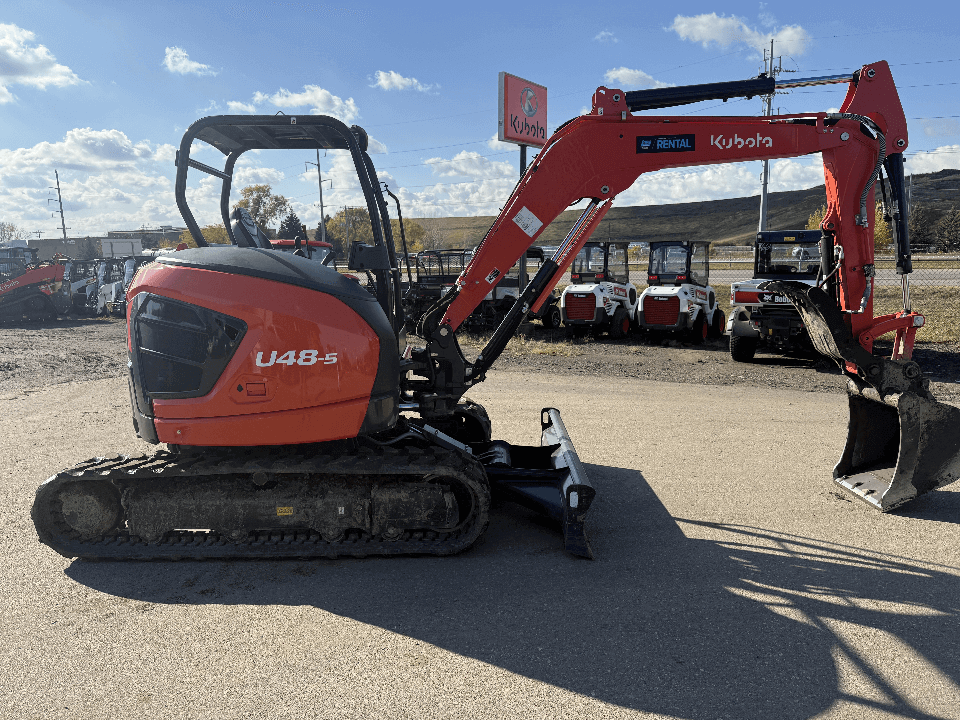

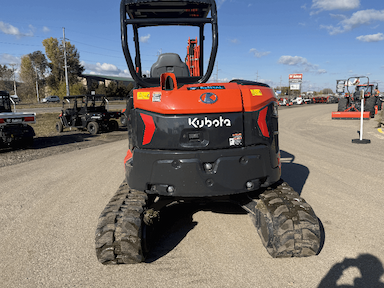

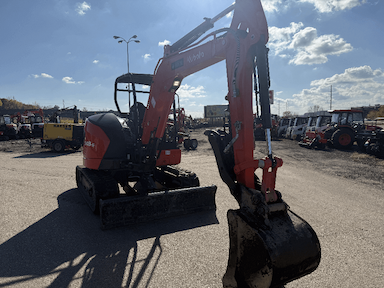

2024 Kubota U48 Mini Excavator 236484

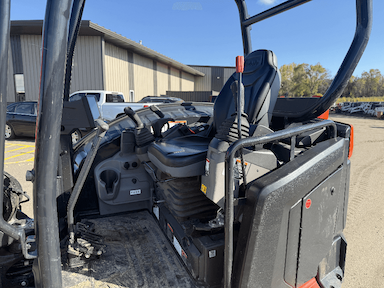

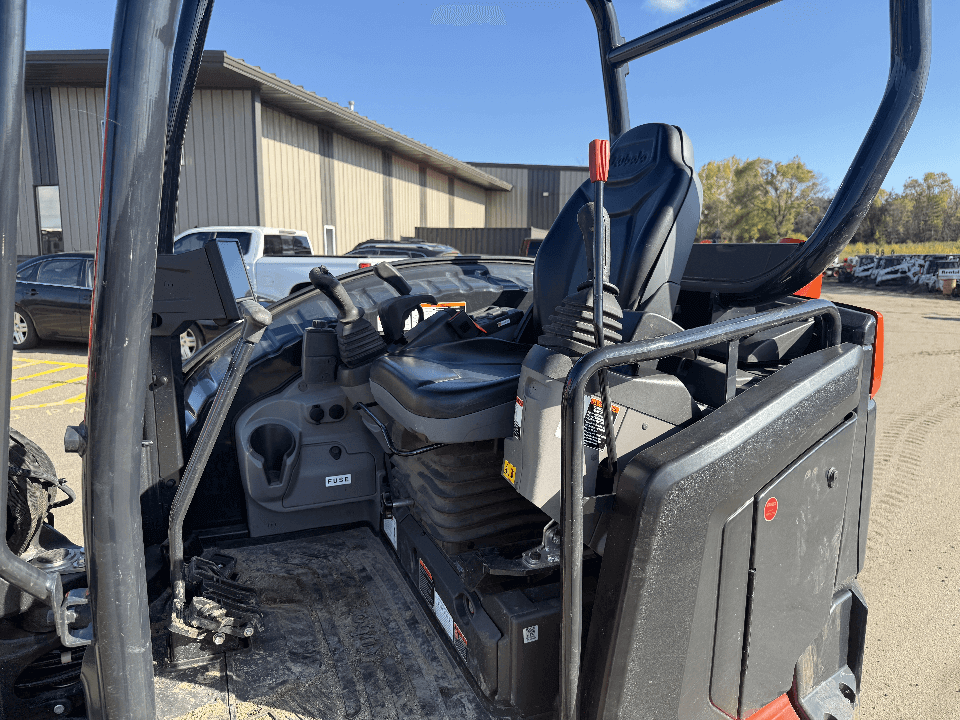

KUBOTA EXCAVATOR,W/RUB TRACKS,CANOPY

Engine / Power

• Engine model: D1803-CR-TE5-BH3 (diesel)

• Gross power: 40.4 HP @ 2,200 rpm

• Net power: 38.9 HP @ 2,200 rpm

• Displacement: 111.4 cu in (1,826 cc)

• Emissions: Tier 4 compliant

Operating Weight / Dimensions

• Operating weight (rubber tracks, canopy): 10,848 lbs

• Operating weight (rubber tracks, cab): 11,057 lbs

• Operating weight (steel tracks, cab): 11,342 lbs

• Overall length: 17 ft 7 in (5,355 mm)

• Overall width: 6 ft 5 in (1,960 mm)

• Overall height: 8 ft 4 in (2,550 mm)

• Minimum ground clearance: 12 in (305 mm)

• Tumbler distance: 6 ft 6 in (1,990 mm)

• Crawler length (track on ground): 8 ft 2 in (2,500 mm)

• Shoe width (rubber/steel): 15.7 in (400 mm)

Hydraulics & Performance

• Main pump capacity: 31.4 GPM (118.8 L/min)

• Auxiliary hydraulic flow (AUX1): 17.2 GPM (65 L/min)

• Auxiliary hydraulic flow (AUX2): 9.8 GPM (37 L/min)

• Bucket breakout force: 9,304 lbs

• Arm breakout force: 5,304 lbs

Drive / Travel

• Travel speed (low): 1.7 mph (2.8 km/h)

• Travel speed (high): 3.0 mph (4.9 km/h)

• Ground contact pressure (rubber tracks, canopy): 4.0 psi

Capacities

• Fuel tank: 17.4 gallons (66 L)

• Hydraulic oil reservoir: 10.6 gallons (40 L)

• Hydraulic system total: 20.1 gallons (76 L)

Features / Options

• 7-inch color LCD display with jog dial

• Keyless start (stores up to 10 passcodes)

• Rear-view camera option

• Changeable control pattern (ISO/SAE switch)

• Optional hydraulic angle blade dozer

• Spacious cab with improved visibility and comfort

Summary
The 2024 Kubota U48-5 is a powerful 5-ton, zero-tail-swing compact excavator designed for professional performance and operator comfort. It delivers strong digging force, smooth hydraulics, and modern technology ideal for construction, utility, and landscaping work.
