2025 BaumaLight SS330-D003444 Tree Attachments 256163

SS330-D003444 Swing Blade W/Mnl Ctrl-60 Open-Ssl

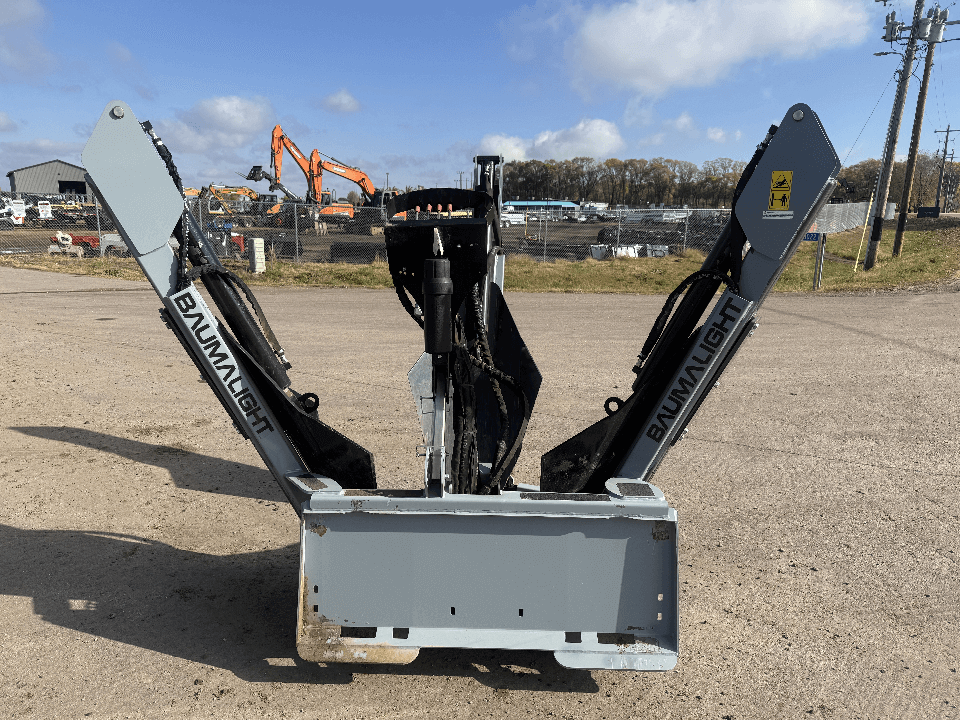

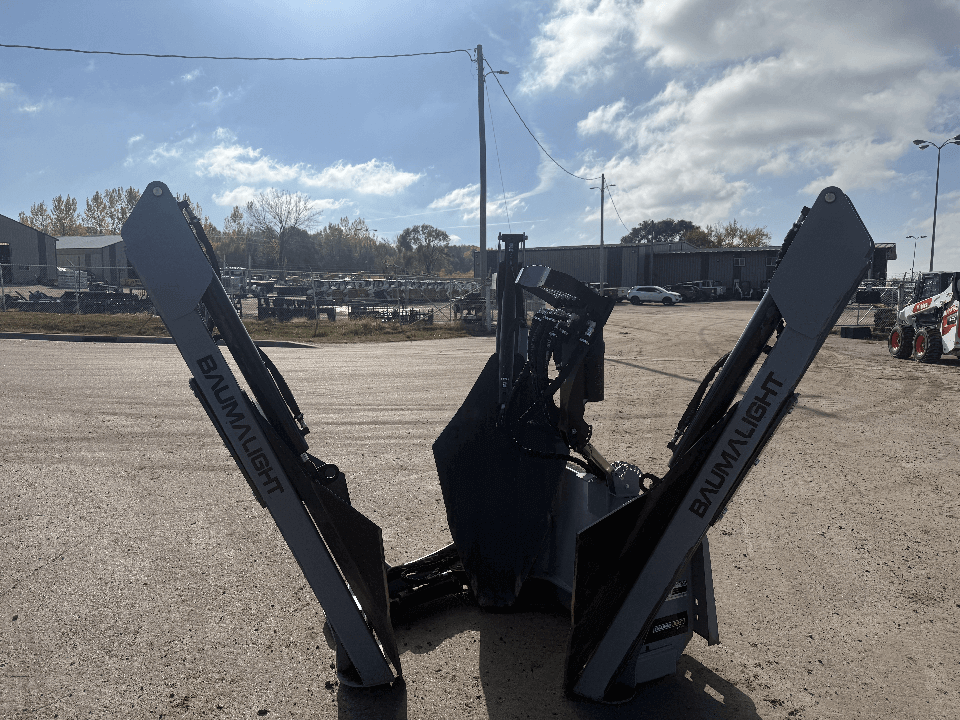

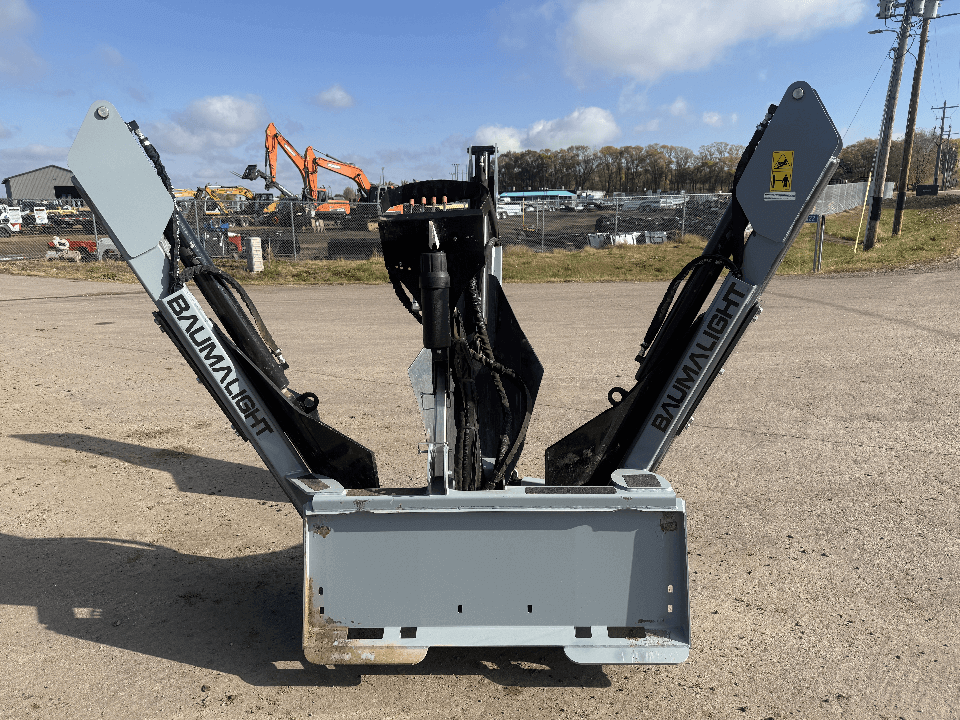

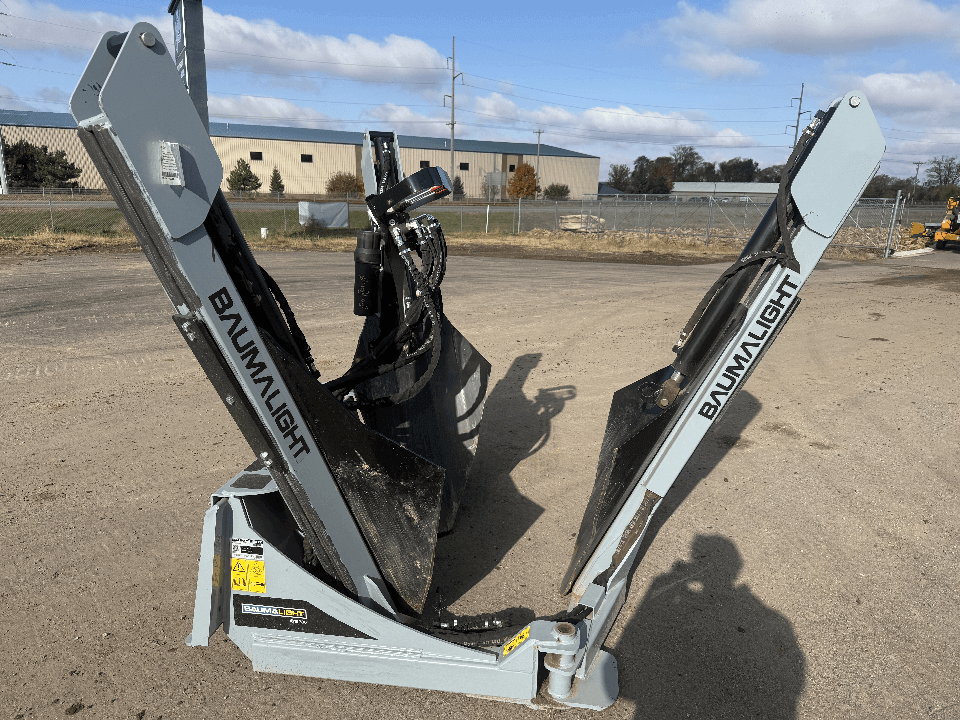

Model: SS330 – Compact Hinged 3-Blade Tree Spade (Skid-Steer Mount)
Mount Type: Universal skid-steer adaptor
Blades: 3 (semi-truncated design)
Frame: Hinged arm for easier positioning & less damage to lower branches

Ratings / Capacities:

• Tree Size (Evergreen): Up to 3" diameter

• Tree Size (Hardwood): Up to 2.5" diameter

• Root Ball Diameter: 30"

• Root Ball Depth: 29"

• Opening Width: 60"

• Blade Angle: 25°

• Blade Thickness: 3/8" mild steel

• Hydraulic Flow Requirement: 5-20 GPM

• Hydraulic Pressure: 2,900-4,000 PSI

• Weight (Attachment Only): ~1,550 lbs

• Weight with Root Ball: ~2,050 lbs

Key Features:

• Rear-mounted spades provide better operator view of spading operation

• Non-slip step pads for safe access

• Sleeved hydraulic hoses for operator & hose protection

• Powder-coat finish for durability

• Greaseable pins & hardened bushings on main pivot points

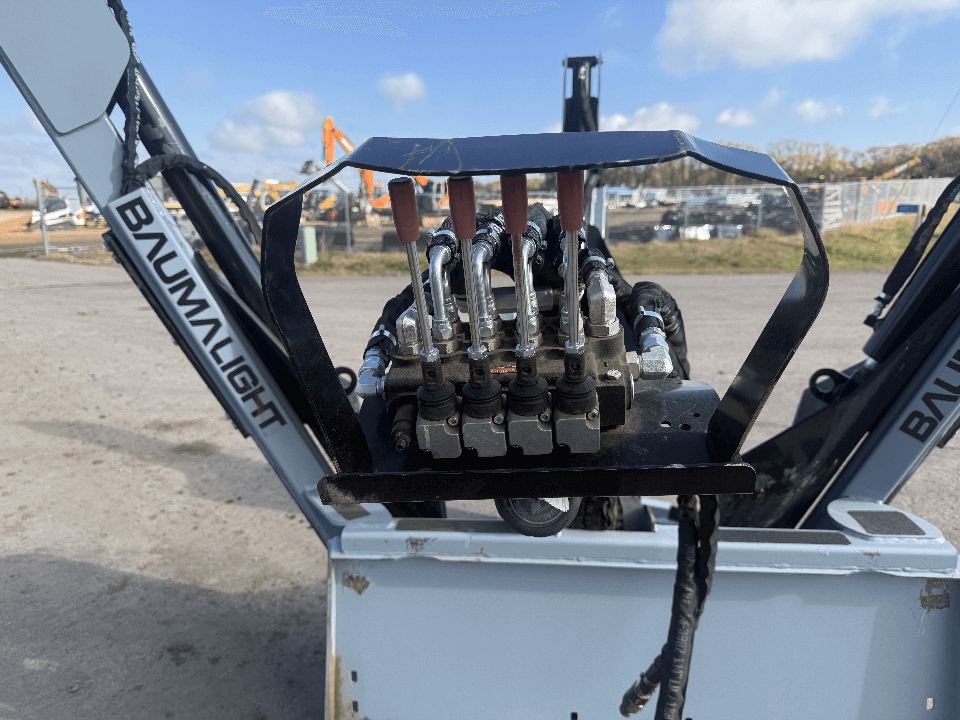

• Various control options: Manual, Electric (wired), Wireless Remote

• Compatible with skid-steers of sufficient size (minimum carrier weight ~4,800-6,000 lbs depending on configuration)

Use / Application Notes:

• Designed for precision tree relocation or transplanting for trees up to approx. 3" Evergreen / 2.5" Hardwood in diameter

• Suitable for landscape contractors, nurseries, tree farms, property owners relocating trees

• Requires appropriate hydraulic flow and pressure from the host machine (5-20 GPM, up to 4,000 PSI)

• Due to weight and root ball size, ensure transport, lifting, and machine capacity aligned with spec

• The hinged frame offers improved maneuverability in tighter spaces and reduces branch damage
