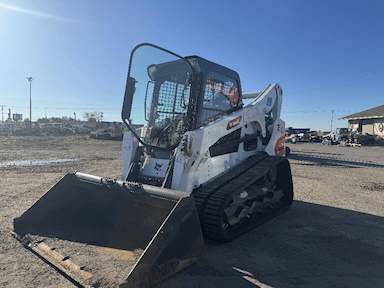

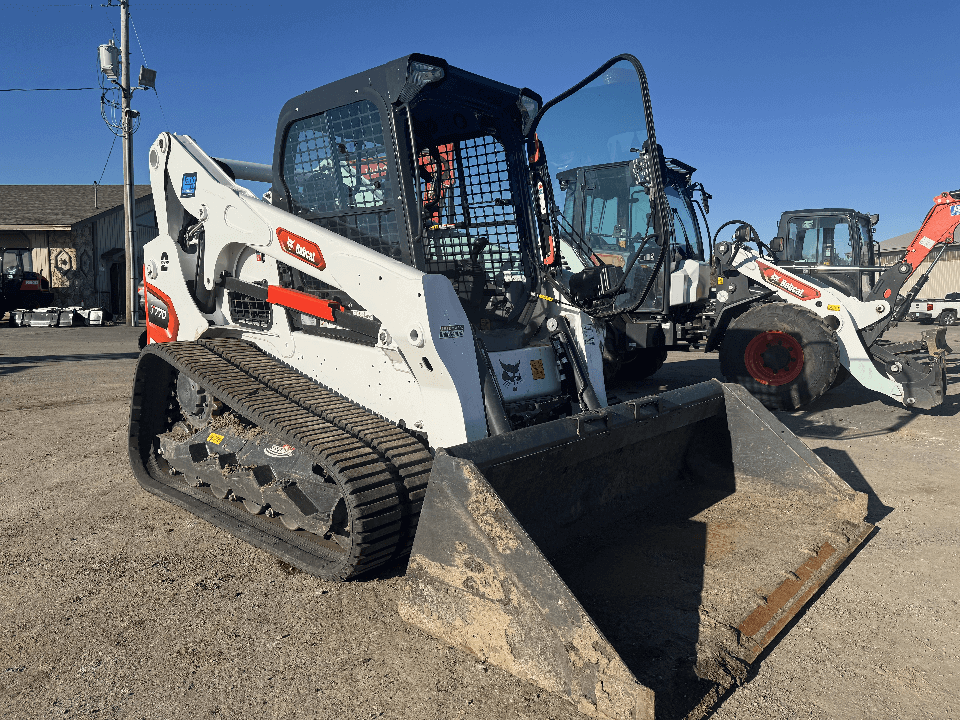

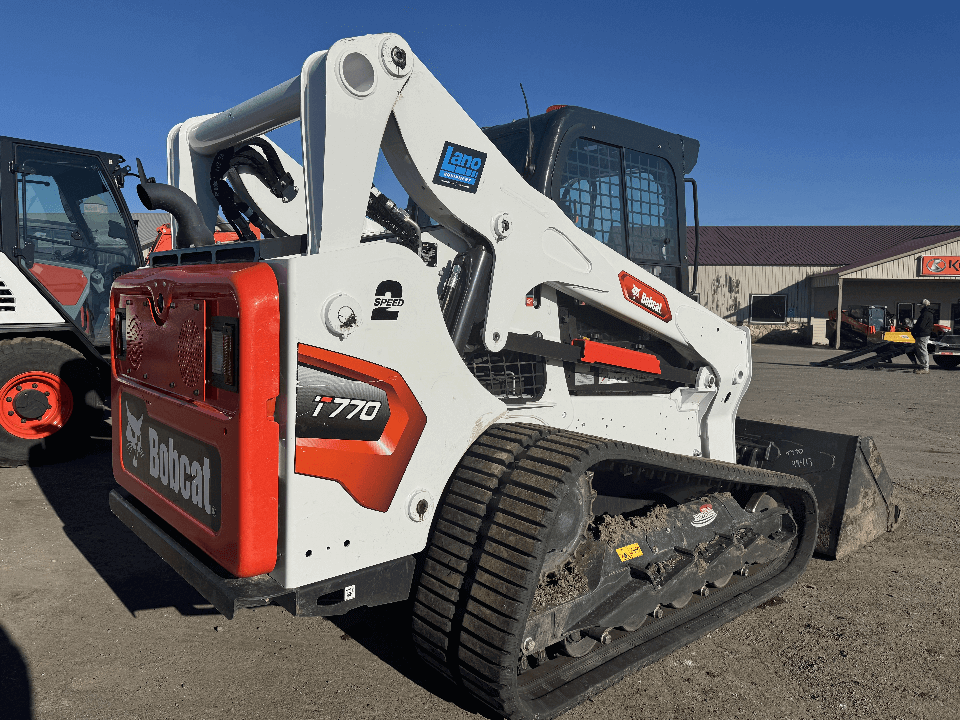

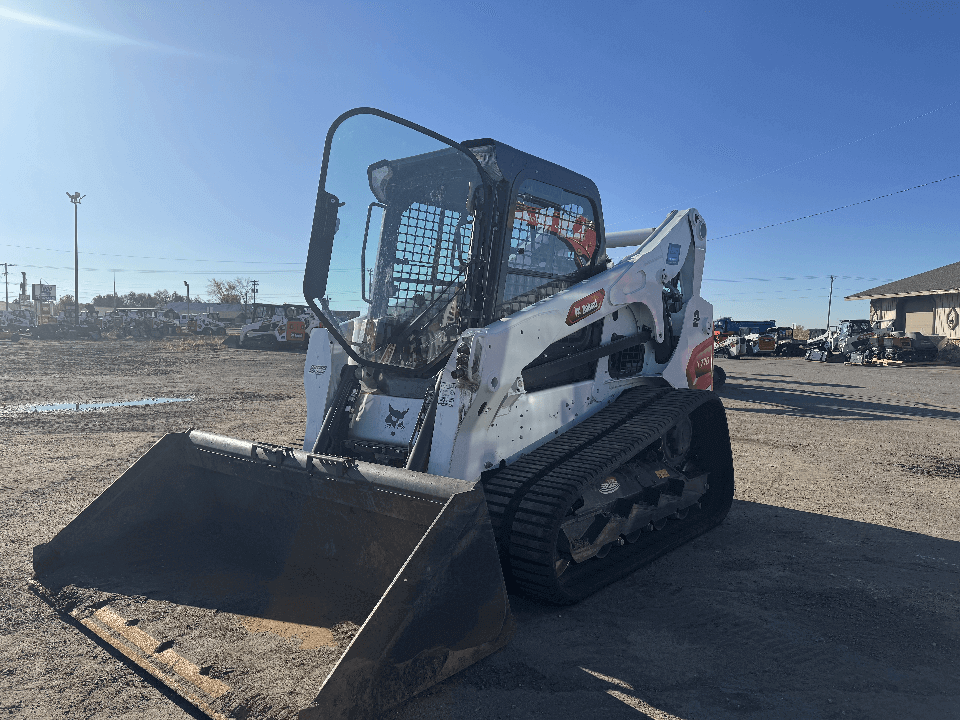

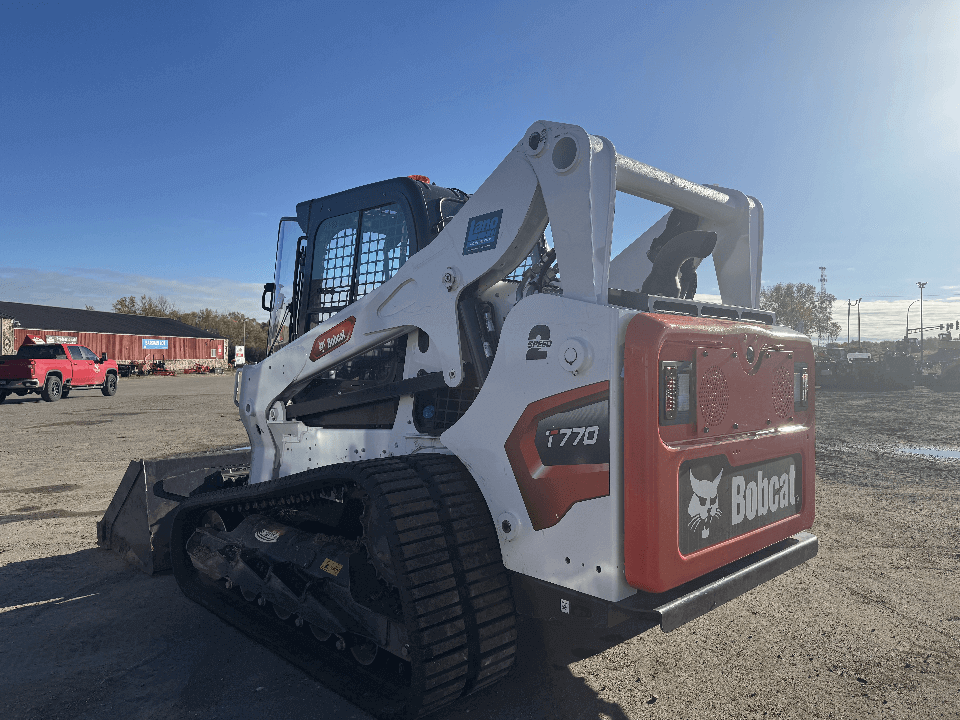

CTL-Deluxe Pkg-SJC-Hi Flo-Susp-2 spd-18 MB-H&S

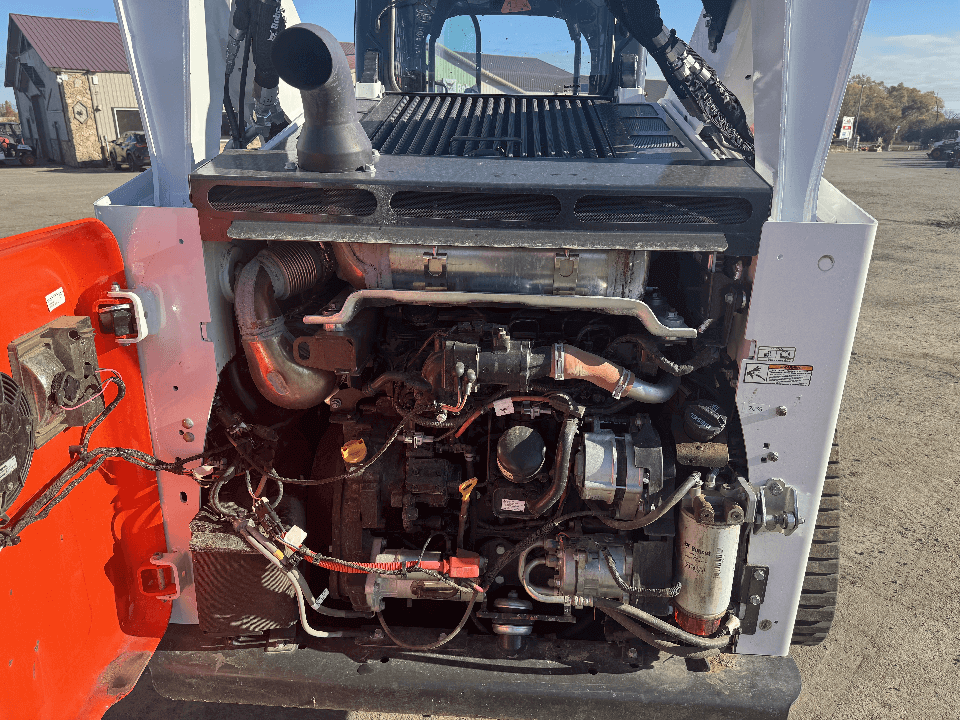

Engine:
Emissions Tier: Tier 4 Final
Engine Type: Turbocharged Diesel
Engine Power: 92 HP
Displacement: 3.4 L (207 cu. in.)
Fuel Tank Capacity: 43.8 gallons
Performance:
Rated Operating Capacity (ISO): 3,475 lbs
Operating Weight: 10,515 lbs
Tipping Load: 9,929 lbs
Travel Speed (Single Speed): 6.6 mph
Travel Speed (Two Speed Option): 10.7 mph
Ground Pressure (17.7 in tracks): 4.2 psi
Lift Path: Vertical
Hydraulic System:
Standard Flow: 23.0 gal/min
High Flow (Optional): 36.6 gal/min
System Relief Pressure (at Quick Couplers): 3,500 psi
Dimensions:
Length with Standard Bucket: 141.6 in
Length without Bucket: 114.3 in
Width (with Bucket): 80.0 in
Width (without Bucket): 78.0 in
Height to Top of Cab: 81.3 in
Ground Clearance: 8.4 in
Track Width: 17.7 in
Track Length on Ground: 63.7 in
Reach at Maximum Height: 35.2 in
Turning Radius (from Rear): 88.0 in
Departure Angle: 32°
Operating Capacities:
Breakout Force (Lift Arm): 7,684 lbs
Breakout Force (Bucket): 7,859 lbs
Auxiliary Standard Flow Pressure: 3,500 psi
Auxiliary High Flow Pressure: 3,500 psi
Lift & Dump:
Lift Height to Hinge Pin: 132 in (11 ft)
Dump Angle: 42°
Rollback at Ground: 30°
Undercarriage:
Track Type: Rubber
Number of Rollers per Side: 5
Suspension: Rigid mount (optional torsion suspension available)

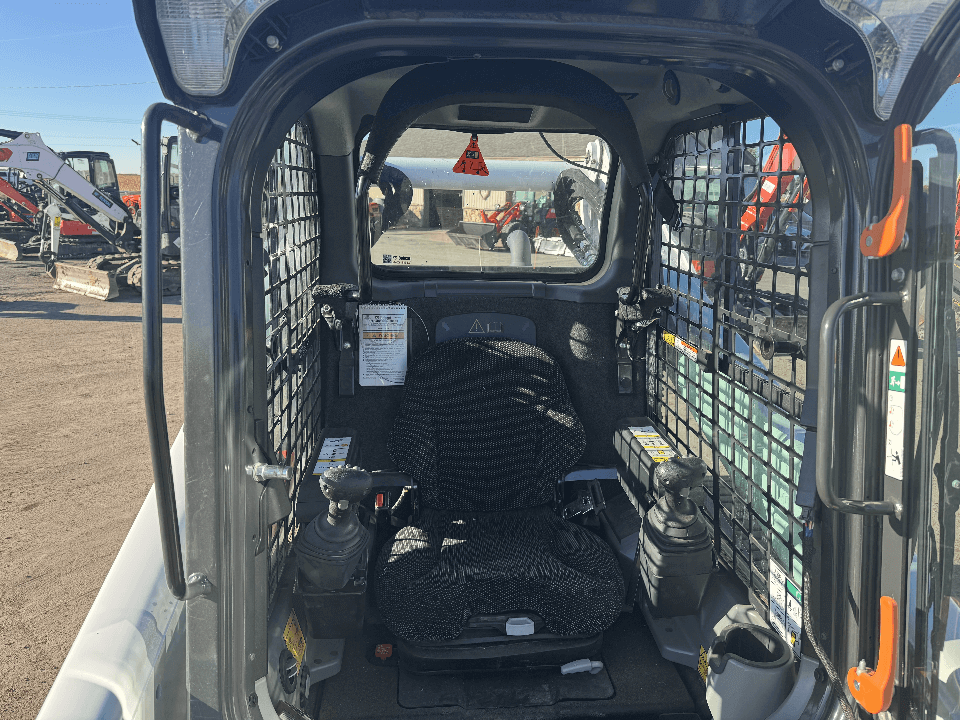

Cab and Controls:
Enclosed Cab with HVAC (optional)
Deluxe Instrumentation Panel
Selectable Joystick Controls (optional)
Ride Control (optional)
Power Bob-Tach Attachment System (optional)
Electrical:
Battery: 12 V, 1000 CCA
Alternator: 90 amps
Service Capacities:
Engine Oil: 11 qts
Hydraulic/Hydrostatic Reservoir: 25.6 gal
Coolant Capacity: 16.5 qts
Key Features:
Vertical lift path for superior reach and lift height
Quick coupler system compatible with all Bobcat attachments
Pressurized cab with excellent visibility and comfort
Optional 2-speed travel, high-flow hydraulics, and suspension system
Non-DPF Bobcat engine (no diesel particulate filter) for reduced maintenance
| Brand | Bobcat |
| Condition | Used |
| Model | T770 |
| Year | 2025 |
