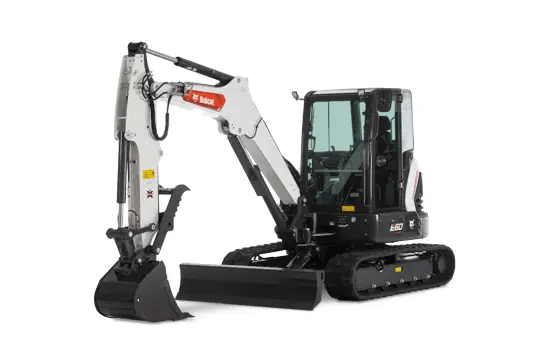

NEW Bobcat E60 Mini Excavator-Cab Dlx-LA -CW-Hyd Clamp-Angl Bld

E60 R2 Mini Excavator-Cab Dlx-LA -CW-Hyd Clamp-Angl Bld

Bobcat E60 R2 Mini Excavator Specs

Model: E60 R2-Series
Manufacturer: Bobcat
Type: Compact (Mini) Excavator
Configuration: Deluxe Cab, Long Arm (LA), Clamp-Ready Hydraulics, Hydraulic Clamp, Angle Blade, Enclosed Cab

Engine & Performance

• Engine: Bobcat D24 Turbo Diesel
• Gross Horsepower: 55 hp
• Fuel Type: Diesel
• Emissions: Tier 4 Final
• Liquid-cooled engine
• Auto-idle and fuel-saving features

Operating Capacity

• Operating Weight: Approximately 13,327 lb
• Maximum Dig Depth: 13 ft 1 in
• Maximum Reach at Ground Level: 20 ft 2 in
• Maximum Dump Height: 14 ft 2 in
• Bucket Digging Force: 10,261 lbf
• Arm Digging Force: 6,711 lbf

Long Arm (LA) Configuration

• Extended reach for trenching and utility work
• Increased digging depth compared to standard arm
• Improved loading and placement capability
• Enhanced working range without repositioning

Hydraulic System

• Auxiliary Hydraulic Flow: 20 GPM
• System Pressure: 3,045 psi
• Clamp-ready auxiliary hydraulics
• Hydraulic clamp installed
• Hydraulic quick-coupler capable
• Smooth multifunction hydraulic performance

Dimensions

• Overall Width: 77.2 in
• Overall Height: 100.8 in
• Track Width: 15.7 in
• Ground Clearance: 13.4 in
• Tail Swing Type: Conventional Tail Swing
• Transport Length: Approximately 20 ft

Blade System

• Hydraulic Angle Blade
• Blade Width: 77.2 in
• Blade angles left and right for grading efficiency
• Excellent for backfilling, grading, and snow removal
• Reduces machine repositioning during finish work

Cab & Comfort Features

• Deluxe Enclosed Cab
• Heat and Air Conditioning
• Deluxe suspension seat
• LCD monitoring display
• Automatic climate control
• Reduced noise and vibration levels
• Excellent all-around visibility

Hydraulic Clamp Features

• Factory hydraulic clamp capability
• Ideal for:
  • Brush handling
  • Log handling
  • Rock placement
  • Demolition debris
  • Utility work
• Increased material-handling versatility

Undercarriage

• Steel track undercarriage
• Heavy-duty track rollers
• Excellent stability and lifting capability
• Durable construction for commercial applications

Common Uses

• Utility installation
• Trenching
• Excavation
• Demolition
• Land clearing
• Material handling
• Landscaping
• Site preparation
• Pipe installation

Key Features

• 55 hp turbo diesel engine
• Approx. 13,327 lb operating weight
• Long Arm configuration
• 13 ft 1 in max digging depth
• Hydraulic clamp equipped
• Hydraulic auxiliary system
• Hydraulic angle blade
• Deluxe heated & air-conditioned cab
• Conventional tail swing design
• Excellent reach and lifting performance

Quick Takeaway

The Bobcat E60 R2 Mini Excavator equipped with a Deluxe Cab, Long Arm, Hydraulic Clamp, and Hydraulic Angle Blade is a highly versatile 6-ton excavator designed for utility work, excavation, grading, and material handling. Its 55 hp diesel engine, extended reach, clamp capability, and premium operator environment make it an excellent choice for contractors requiring productivity and versatility on demanding job sites.
