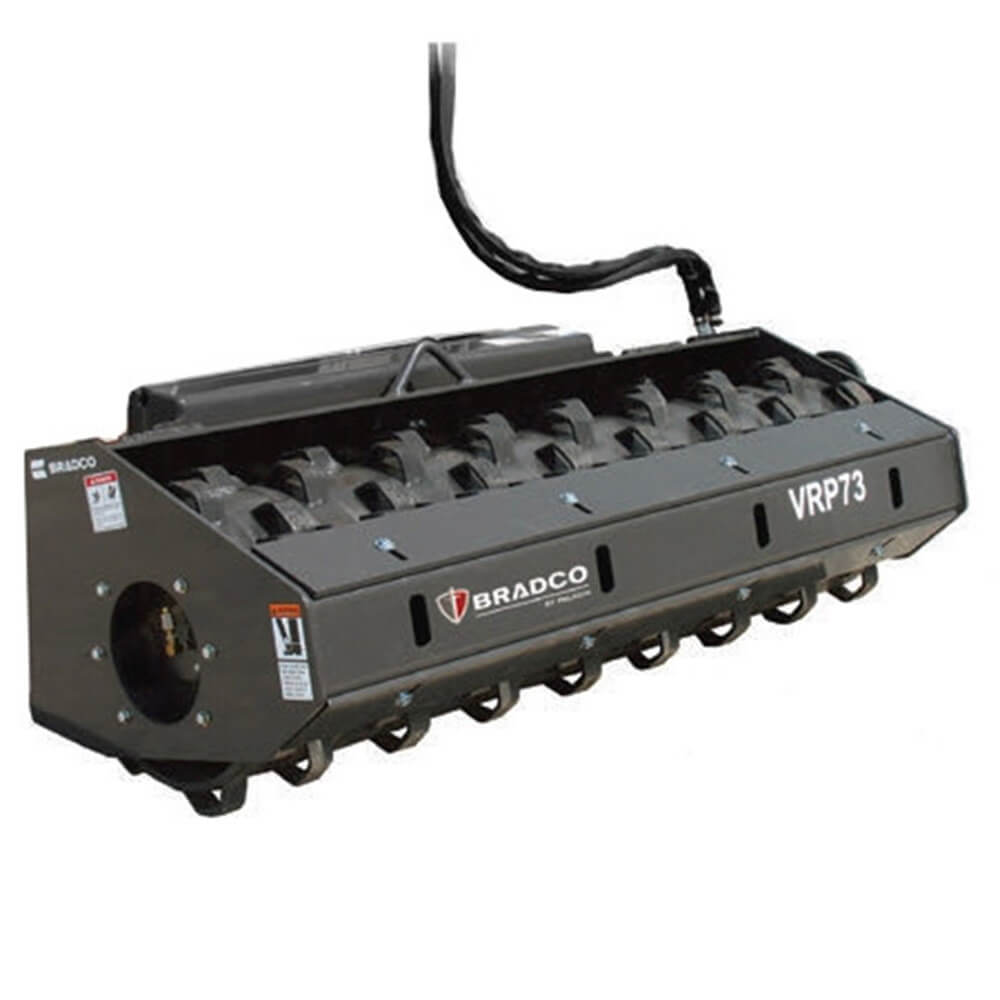

Vibratory Padded Drum Roller-Fits Skid Loaders

Bradco 105068 Vibratory Padded Drum Roller Specs

Model Information

• Model: 105068
• Manufacturer: Bradco / Paladin Attachments
• Type: Vibratory Padded Drum Roller
• Mounting: Universal Skid Steer Quick Attach
• Compatible With: Skid Steer Loaders and Compact Track Loaders
• Designed for compaction of cohesive soils, clay, and trench backfill applications

Drum Specifications

• Drum Type: Padded (Padfoot) Vibratory Drum
• Drum Width: 84 in
• Overall Width: 90 in
• Drum Diameter: 24 in
• Drum Oscillation/Tilt: 15°
• Heavy-duty steel drum construction with padfoot compaction lugs

Weight

• Operating Weight: 2,455 lb
• Vibrating Weight: 1,290 lb
• Shipping Weight: Approximately 2,455 lb

Dimensions

• Overall Length: 39 in
• Overall Height: 31 in
• Overall Width: 90 in
• Drum Width: 84 in

Compaction Performance

• Dynamic Force: 9,370 lb
• Vibrating Speed: 2,600 VPM
• Excellent for compacting:
  • Clay soils
  • Silt
  • Trench backfill
  • Embankments
  • Utility work
• Padfoot design penetrates loose material for deeper compaction

Hydraulic Requirements

• Maximum Hydraulic Flow: 25 GPM
• Compatible with standard-flow and high-flow skid steers meeting flow requirements
• Hydraulic motor-driven vibratory system
• Protected hydraulic drive components

Construction

• Heavy-duty welded steel frame
• Industrial-grade bearings
• Reinforced drum support structure
• Commercial-duty construction
• Built for rental fleets and contractor applications

Features

• Padded drum design for cohesive soil compaction
• Adjustable scraper blade between frame and drum
• Protected hydraulic drive system
• Universal skid steer mounting plate
• Hydraulic hoses and flat-face couplers typically included
• Plug-and-play attachment design

Applications

• Utility trench compaction
• Road construction
• Parking lot preparation
• Building pad compaction
• Pipeline projects
• Landfill and site work
• Landscaping and grading projects
• Bridge and roadway approaches

Safety Features

• Fully enclosed hydraulic drive system
• Heavy-duty drum guards
• Adjustable scraper system
• Secure quick-attach mounting
• Operator-controlled vibration engagement

Ideal Carrier Size

• Mid-size to large skid steer loaders
• Compact track loaders
• Machines capable of supplying up to 25 GPM hydraulic flow
• Construction and utility contractor fleets

Key Features

• 84" padded drum width
• 9,370 lb dynamic compaction force
• 2,600 VPM vibration frequency
• 2,455 lb operating weight
• Universal skid steer quick attach
• Hydraulic vibratory operation
• Adjustable scraper blade
• 15° drum oscillation
• Protected hydraulic drive
• Designed for clay and cohesive soil compaction

Quick Takeaway

The Bradco 105068 Vibratory Padded Drum Roller is the largest model in Bradco's padfoot roller lineup, featuring an 84-inch drum, 9,370 pounds of dynamic force, and a heavy-duty 2,455-pound operating weight. Designed specifically for compacting clay, silt, trench backfill, and other cohesive soils, it delivers professional-grade compaction performance while utilizing the versatility of a skid steer or compact track loader.
