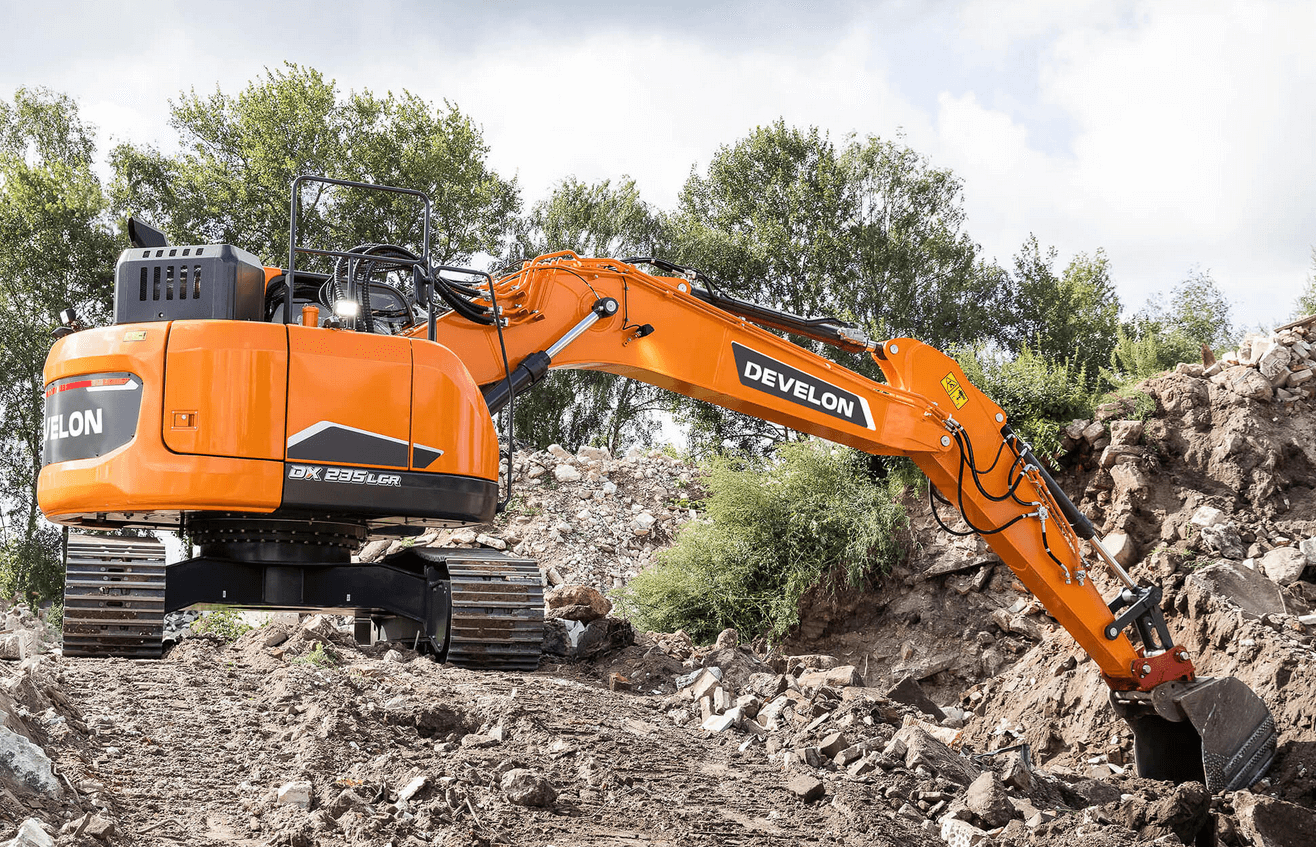

NEW Develon DX235LCR-7 Excavator-US20 Pkg-7.4 Ton CTW-PE3C

Excavator-US20 Pkg-7.4 Ton CTW-PE3C

• Model: Develon DX235LCR-7

• Machine Type: Reduced Tail Swing Hydraulic Excavator

• Package: US20 Pkg – 7.4 Ton Counterweight (CTW) – PE3C

• Operating Weight: Approx. 57,100 lbs (25,900 kg)

• Design: LCR (Limited Counterweight Radius / Reduced tail swing)

Engine

• Engine Model: Develon DL06V Diesel

• Emission Tier: EPA Tier 4 Final

• Gross Horsepower: Approx. 189 HP

• Net Horsepower: Approx. 170 HP

• Rated Speed: 1,900 rpm

• Fuel Type: Diesel (SCR/DEF equipped)

Hydraulic System

• Main Pumps: Dual variable displacement pumps

• Hydraulic Flow: Approx. 58.6 GPM per pump

• System Pressure: Approx. 4,978 psi (normal)

• Power Boost Pressure: Approx. 5,263 psi

• Operating Modes: Multiple power modes with power boost

Performance

• Max Digging Depth: Approx. 21 ft 10 in

• Max Reach at Ground Level: Approx. 32 ft

• Bucket Capacity: Approx. 1.2 cu yd (varies by configuration)

• Swing Speed: Approx. 11.5 rpm

• Gradeability: Approx. 70%

• Travel Speed: Approx. 2.0 – 3.6 mph

Boom & Arm

• Boom Length: Approx. 18 ft 8 in

• Arm Length: Approx. 9 ft 6 in

Undercarriage

• Track Shoe Width: Approx. 31.5 in (800 mm)

• Counterweight: 7.4 ton (US20 package)

Capacities

• Fuel Tank Capacity: Approx. 81 gallons

• Hydraulic Tank Capacity: Approx. 34 gallons

Dimensions

• Overall Length: Approx. 29 ft 5 in

• Overall Width: Approx. 10 ft 5 in

• Overall Height: Approx. 10 ft 2 in

Operator Features

• Cab: Enclosed cab with HVAC

• Controls: Advanced electronic control system

• Camera: Rearview camera standard

• Display: Digital operator monitor
