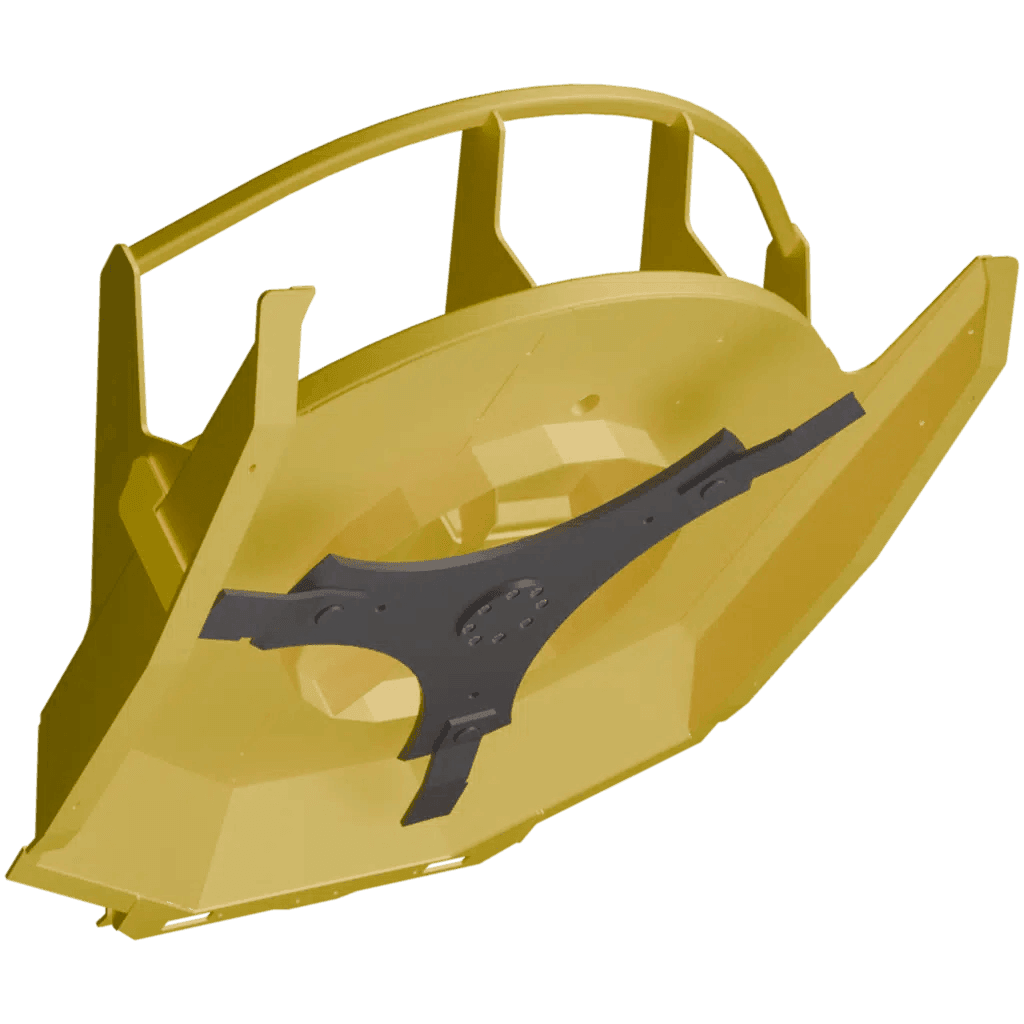

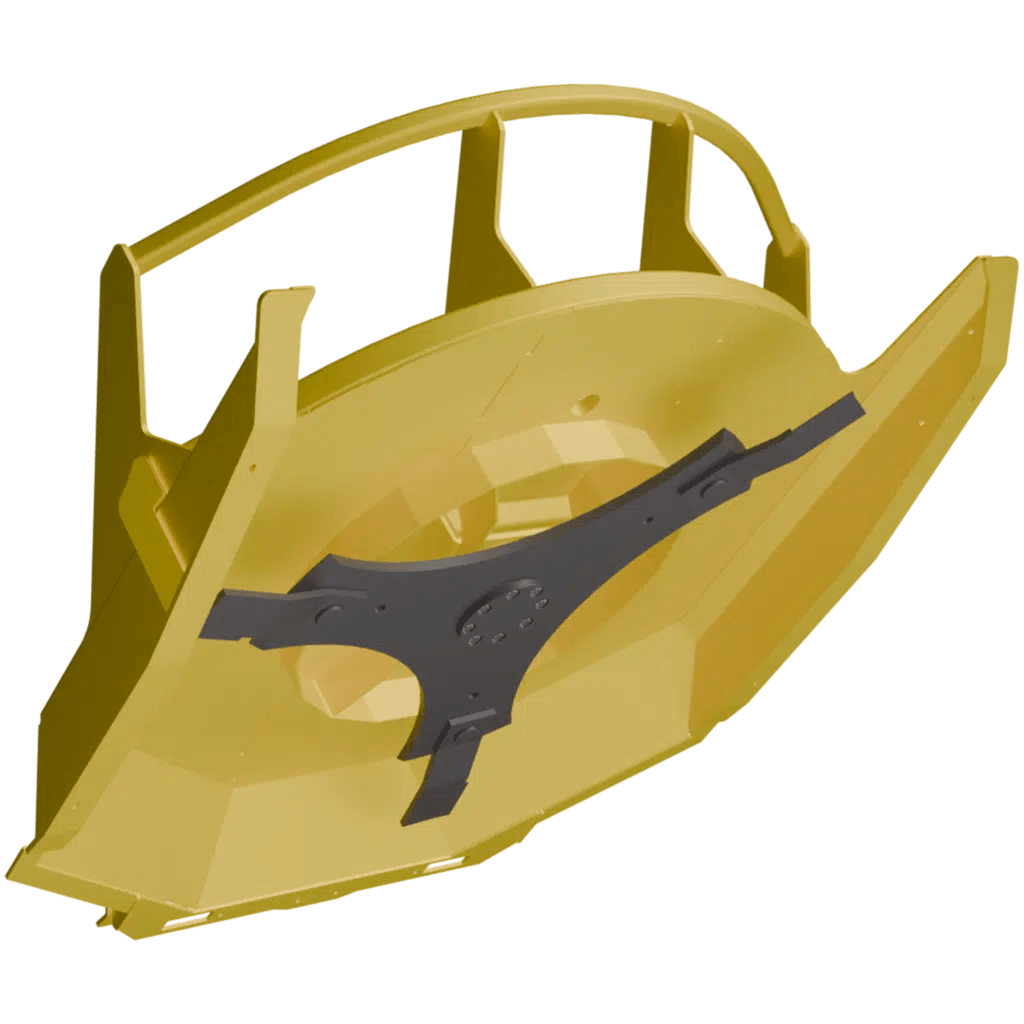

NEW Diamond Mowers DLR084 Mower-84" Pro X Rotary Cutter-32-41 Gpm-SSL/CTL

Mower-84" Pro X Rotary Cutter-32-41 Gpm-SSL/CTL


Diamond Mowers DLR084 Pro X Rotary Cutter Specs

Model: DLR084
Series: Pro X Rotary Cutter
Type: Hydraulic Rotary Brush Cutter for Skid Steers & Compact Track Loaders
Application: Land clearing, brush control, right-of-way maintenance, pasture reclamation, and site preparation
Compatibility: Skid Steers & Compact Track Loaders with 32–41 GPM High-Flow Hydraulics

Dimensions & Weight

• Cutting Width: 84 in
• Overall Width: 90 in
• Overall Depth: 87 in
• Overall Height: 23 in
• Approximate Weight: 1,800 lb

Cutting Performance

• Maximum Cutting Capacity: Up to 6 in diameter trees and brush
• Heavy-duty blade carrier (stump jumper) design
• High blade tip speed for superior cutting performance
• Efficiently handles dense brush, saplings, and thick vegetation
• Commercial-grade land-clearing capability

Hydraulic Requirements

• Hydraulic Flow Range: 32–41 GPM
• Maximum Operating Pressure: 4,000 psi
• High-torque hydraulic motor drive
• Optimized for high-flow skid steers and compact track loaders

Drive System

• Direct-drive hydraulic motor
• Gearbox-free design reduces maintenance
• Heavy-duty spindle and blade carrier assembly
• Efficient power transfer for demanding cutting applications

Construction Features

• Heavy-duty welded steel deck
• Reinforced deck structure for impact resistance
• Commercial-grade skid shoes
• Abrasion-resistant wear surfaces
• Powder-coated finish for corrosion resistance
• Built for continuous commercial use

Safety Features

• Front and rear chain shielding
• Debris containment system
• Reinforced guarding around cutting chamber
• Designed to minimize thrown-object hazards
• Commercial vegetation-management safety design

Mounting & Compatibility

• Universal Skid Steer Quick Attach (SSQA)
• Compatible with most high-flow skid steers and compact track loaders
• Works well with Bobcat, Kubota, Caterpillar, John Deere, CASE, New Holland, Takeuchi, and similar machines

Performance Features

• Wide cutting width increases productivity
• Excellent for large-acreage mowing and brush clearing
• Handles heavy vegetation and woody material
• Smooth operation with excellent material processing
• Designed for demanding professional applications

Common Uses

• Land clearing
• Pasture and field reclamation
• Utility right-of-way maintenance
• Roadside vegetation management
• Property development
• Farm and ranch maintenance
• Commercial vegetation control

Key Features

• 84" cutting width
• Cuts up to 6" trees and brush
• 32–41 GPM hydraulic requirement
• Approx. 1,800 lb operating weight
• Direct-drive hydraulic motor
• Heavy-duty stump jumper blade carrier
• Front and rear chain shielding
• Universal SSQA mounting
• Commercial-grade construction

Quick Takeaway

The Diamond Mowers DLR084 Pro X Rotary Cutter is a commercial-grade 84-inch brush cutter designed for high-flow skid steers and compact track loaders. With the ability to cut trees up to 6 inches in diameter, a rugged direct-drive hydraulic system, and a wide cutting path, it delivers exceptional productivity for professional land-clearing and vegetation-management operations.
