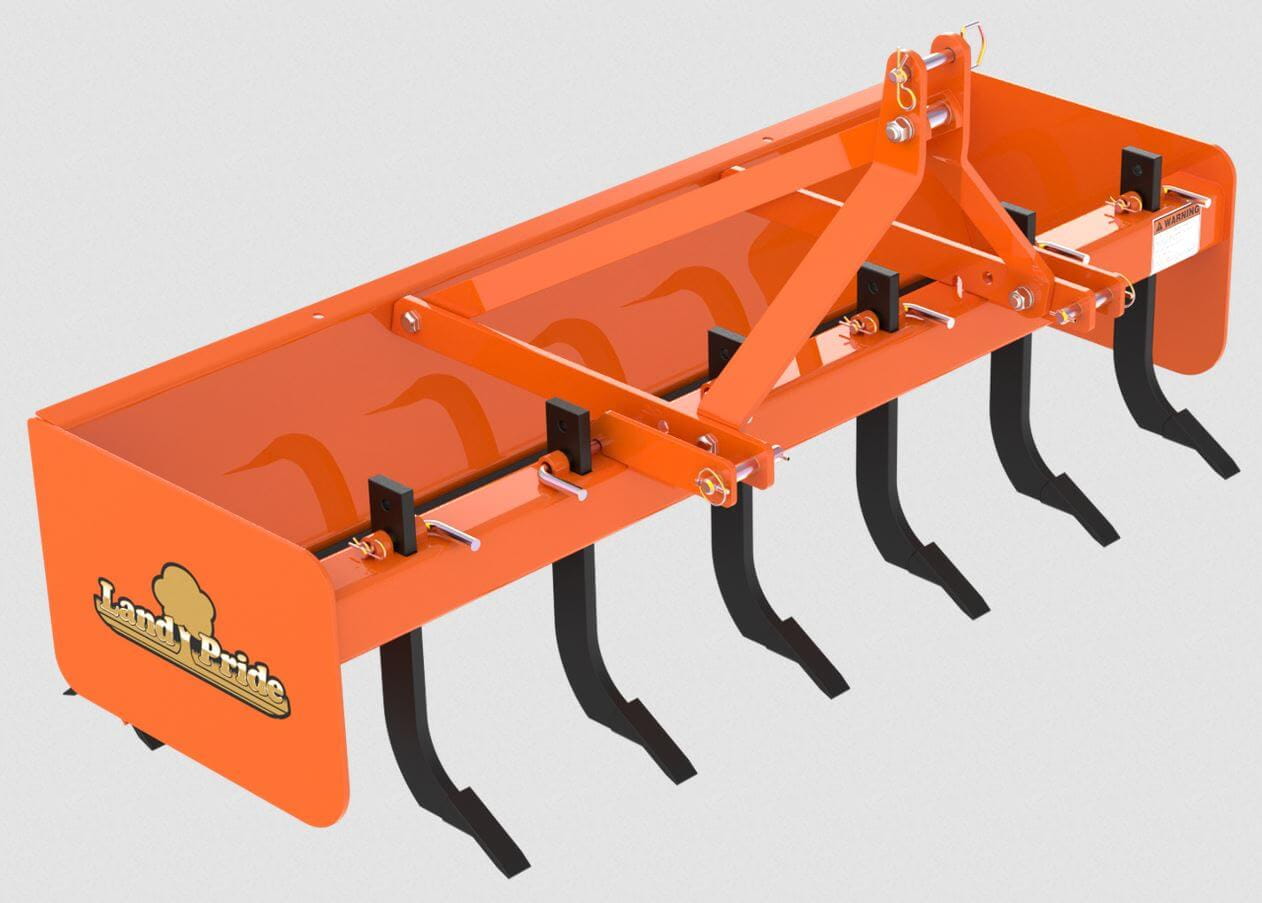

NEW Land Pride BB1560 Box Scraper-60 -3 Pt-Cat 1-Fits Tractors 17-40 hp

Box Scraper-60 -3 Pt-Cat 1-Fits Tractors 17-40 hp

Heavy side panels
Square tubing shank support Many competitors use angle iron. Box tubing is stronger.
Clevis -type lower 3-point hitch Much stronger than pin type hitch.
4 Position heat treated
spring steel shanks Offers flexibility for deep to shallow settings and Heat-treated for longevity.
Working widths
horsepower Range
Roll-formed moldboard Roll-formed moldboard keeps materials flowing which puts less drag on the Box
Scraper, resulting in lower horsepower requirements and faster working conditions.
17" (43 cm) Moldboard height High material capacity.
Moldboard Heavy moldboard with precise roll holds its shape under heavy loads.
Heat treated dimpled-on tips Easy to replace tips that are heat treated for toughness.
Heat-treated, reversible, and
replaceable cutting blades
Heat-treated for hardness. Reversible so both edges can be used before replacing the
cutting blades.
Rear backfill blade Rear backfill blade allows for backfilling trenches or foundations.
Warranty One year parts and labor.
Category 1 3-point hitch
with Quick Hitch capability
Fits a wide variety of tractors.
Quick Hitch capability allows for easy hook-up.
Heavy 4" x 4" X 5/16" front beam
with 5/16" x 1" shank hole
reinforcement
Reinforcement adds additional strength to shank tube right behind shank where
maximum pressure is applied.
Strong Bucket Reinforcement
BB15Series
BB25 Series
Two welded braces extending from front to rear of bucket help keep the Box Scraper
square under heavy loads.
Two welded braces extending from front to rear of bucket plus welded gussets
between the side panels and moldboard provide exceptional strength for keeping the
Box Scraper square under heavy loads.
15 Series: 60", 66" & 72" (152, 168,& 183 cm)
25 Series: 60", 66", 72", 84" & 96" (152, 168, 183, 213, & 244 cm)
15 Series: 17-40 horsepower (13-30 kW)
25 Series: 25-55 horsepower (19-41 kW)
5-16" & 3/8" (8 & 10 mm) Built heavy to handle the tough jobs.
