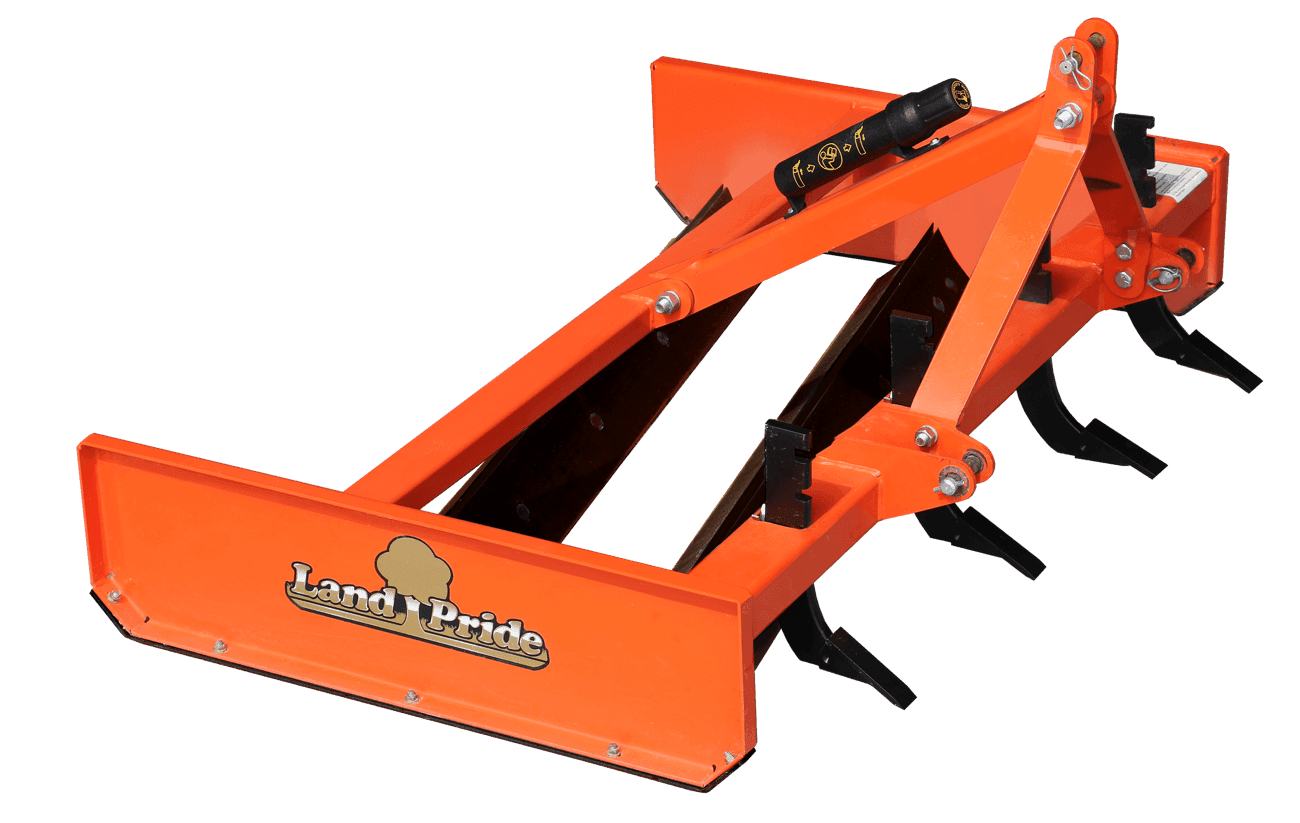

NEW Land Pride GS0560 Grading Scraper-60 -3 Pt-Fits 17-33 hp Tractor

Grading Scraper-60 -3 Pt-Fits 17-33 hp Tractor

Land Pride GS0560 Grading Scraper Specs (60")

Model: GS0560
Series: GS05 Series Grading Scraper
Type: 3-Point Hitch Land Grading Scraper
Application: Driveway maintenance, road grading, leveling ruts, filling low spots, and light property maintenance
Compatibility: Category I tractors (17–33 HP)

Dimensions

• Working width: 60 in (5 ft)
• Overall width: 63 3/8 in
• Overall length: 44 3/8 in
• Overall height: 31 1/8 in
• Approximate weight: 350 lb (scraper only)

Capacity & Working Features

• Scarifier shanks: 4 adjustable shanks
• Shank adjustment positions:
  • 3 3/4 in below grade
  • 1 1/2 in below grade
  • 1/2 in above grade
• Skid shoes: Full-length, reversible skid shoes
• Cutting blades: Dual reversible heat-treated high-carbon steel blades

Construction Features

• Heavy-duty frame construction
• Side panels: 3/16 in thick with formed edges
• Main beam: 4" x 3" heavy-wall steel tubing
• Rear beam: 3" x 2" heavy-wall steel tubing
• Heat-treated scarifier tips for durability
• Replaceable wear components (blades, skid shoes, tips)

Hitch & Mounting

• Hitch type: Category I 3-point hitch
• Quick hitch compatible: Yes
• Lower hitch: Clevis-style mounting for secure hookup

Performance Features

• Designed to level high spots and fill ruts in one pass
• Minimal tractor control adjustments required during use
• Scarifiers loosen compacted material for smoother grading
• Skid shoes maintain consistent working depth
• Ideal for light road and lane maintenance

Tractor Requirements

• Recommended horsepower: 17–33 HP
• Optimized for compact tractors (BX, B, LX series)

Common Uses

• Gravel driveway maintenance
• Rural road grading
• Lane and trail leveling
• Filling potholes and ruts
• Light landscaping and property upkeep

Key Features

• 60" working width
• 4 adjustable scarifier shanks
• Dual reversible cutting blades
• Full-length reversible skid shoes
• Heavy-duty 3/16" steel frame construction
• Category I quick hitch compatible
• Designed for 17–33 HP tractors

Quick Takeaway

The Land Pride GS0560 is a 60-inch Category I grading scraper designed for tractors in the 17–33 HP range. With adjustable scarifiers, reversible cutting blades, and skid shoes for consistent depth control, it is built for simple, effective maintenance of driveways, lanes, and light-duty grading surfaces.
