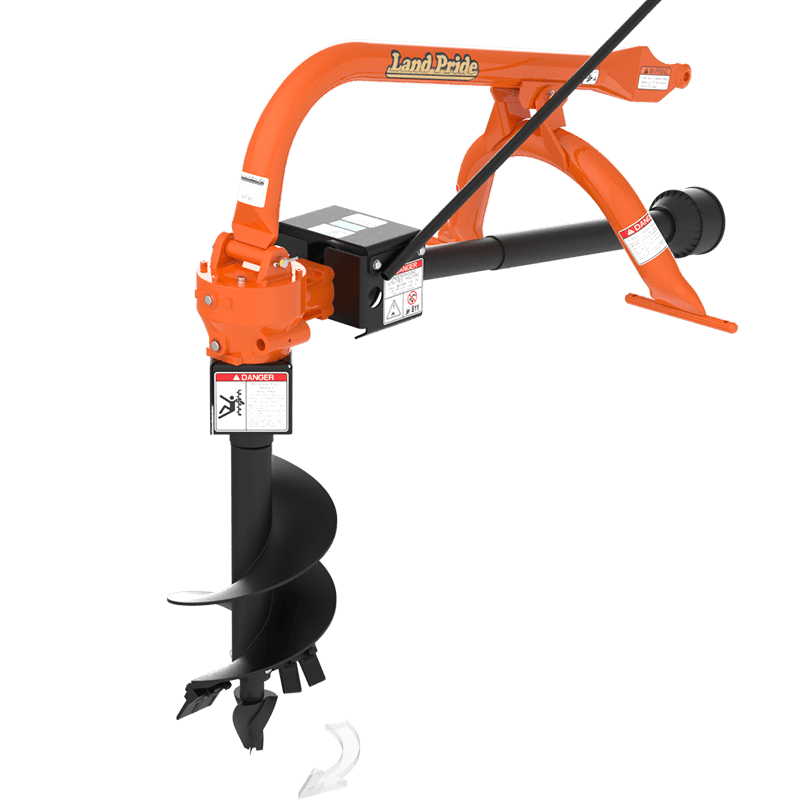

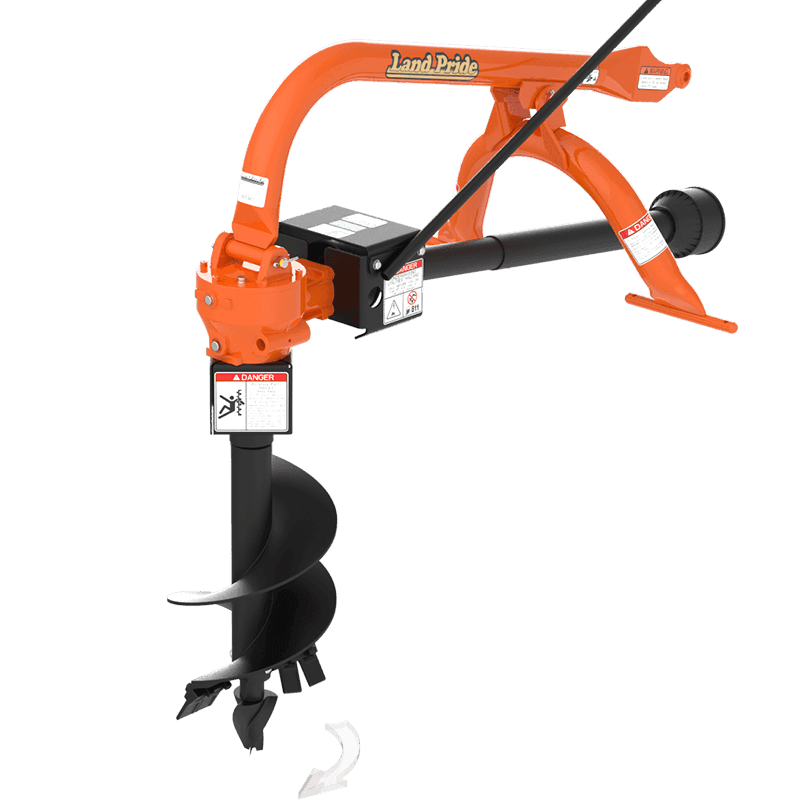

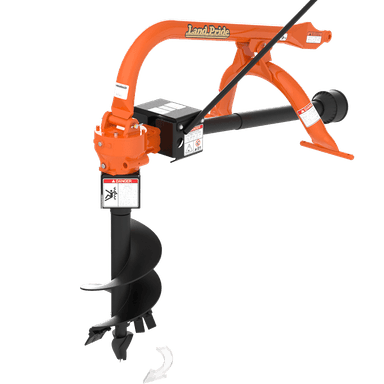

NEW Land Pride PD10 Post Hole Digger-3 Pt Mount-Cat 1-30 hp Gear Box

Post Hole Digger-3 Pt Mount-Cat 1-30 hp Gear Box

Land Pride PD10 Post Hole Digger Specs

Model: PD10
Series: PD10 Series Post Hole Digger
Type: 3-Point Hitch PTO Post Hole Digger
Application: Fence installation, tree planting, sign posts, deck footings, and general drilling applications
Compatibility: Category I tractors (up to 30 HP)

Dimensions & Weight

• Overall height: 78 in
• Overall width: 41 in
• Overall length: 22 in
• Approximate weight (without auger): 170 lb

PTO & Driveline

• PTO speed: 540 RPM
• PTO driveline included: Yes
• Shear bolt protected driveline
• Recommended tractor horsepower: Up to 30 HP

Gearbox

• Heavy-duty cast gearbox
• Gear reduction ratio: 3:1
• Output shaft: 2" round
• Auger connection: 2" gearbox output shaft
• Oil-bath lubricated gearbox for long service life

Hitch & Mounting

• Hitch type: Category I 3-point hitch
• Quick hitch compatible: Yes
• Designed for compact and utility tractors

Auger Compatibility

• Compatible auger sizes:
  • 6 in
  • 9 in
  • 12 in
  • 15 in
  • 18 in
• Augers sold separately
• Replaceable cutting teeth and pilot points available

Construction Features

• Heavy-duty tubular steel boom
• Reinforced A-frame construction
• Adjustable boom positioning
• Durable powder-coated finish
• Designed for rugged agricultural and property maintenance use

Performance Features

• Efficient one-person post hole digging
• Ideal for fencing, landscaping, and construction projects
• Shear bolt protection helps protect drivetrain components
• Handles a variety of soil conditions
• Compatible with multiple auger diameters

Common Uses

• Fence post installation
• Tree and shrub planting
• Sign post installation
• Deck and building footings
• Agricultural construction projects
• Property maintenance and landscaping

Key Features

• Category I 3-point hitch
• Fits tractors up to 30 HP
• 540 RPM PTO driven
• Heavy-duty 3:1 reduction gearbox
• Shear bolt driveline protection
• Accepts 6"–18" augers
• Approximate weight: 170 lb
• Quick hitch compatible

Quick Takeaway

The Land Pride PD10 is a Category I PTO-driven post hole digger designed for tractors up to 30 HP. Featuring a heavy-duty 3:1 reduction gearbox, shear-bolt driveline protection, and compatibility with augers from 6" to 18", it is an ideal attachment for fencing, planting, and general property improvement projects.
