Forward Till-74 -3 Pt-Cat l-25-60 hp Tractors

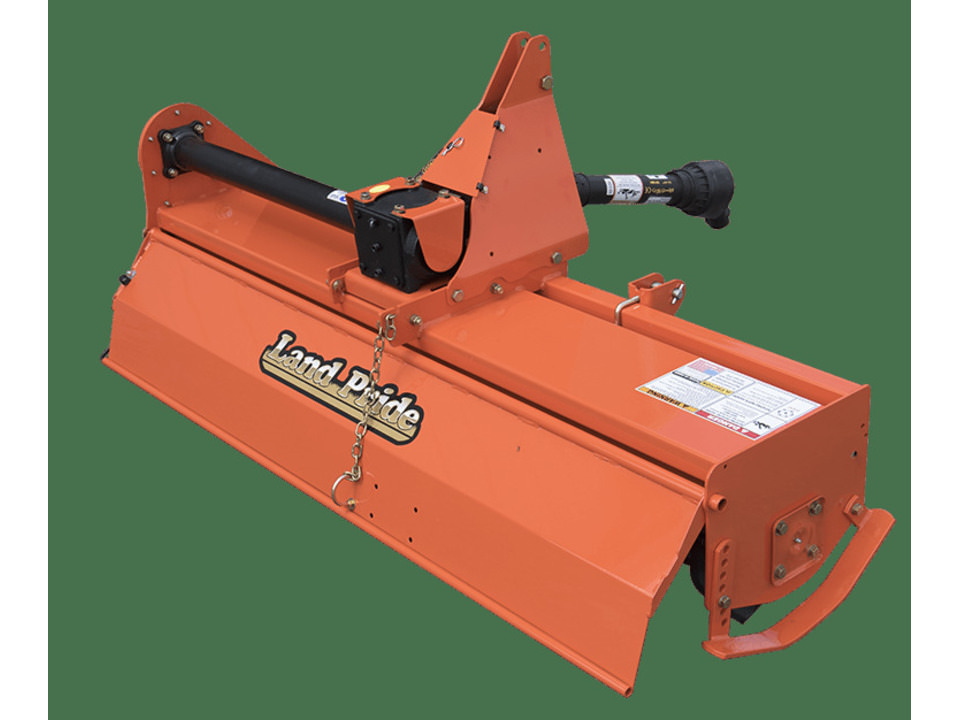

Land Pride RTA1274 Forward Rotation Rotary Tiller Specs (74")
Model: RTA1274
Series: RTA12 Series Forward Rotation Rotary Tiller
Type: 3-Point Hitch Rotary Tiller (Forward Rotation)
Application: Seedbed preparation, garden tilling, food plots, landscaping, and soil conditioning
Compatibility: Category I tractors (25–60 HP)
Dimensions & Weight
- Tilling width: 74 in (6.17 ft)
- Overall width: ~79 3/8 in
- Approximate weight: ~515 lb
- Rotor swing diameter: 15 in
- Maximum tilling depth: Up to 6.5 in
Tilling Performance
- Rotor rotation: Forward rotation
- Tine type: Heat-treated C-shaped tines
- Number of flanges: 9
- Tines per flange: 4
- Total number of tines: 36
- Fine soil pulverization and seedbed preparation
- Adjustable skid shoes for precise depth control
PTO & Drivetrain
- PTO speed: 540 RPM
- Recommended tractor horsepower: 25–60 HP
- Driveline: Category 4 PTO shaft with slip clutch
- Drive system: #80 roller chain in oil bath
- Heavy-duty cast iron gearbox
- Slip clutch protection helps prevent driveline damage
Construction Features
- Heavy-duty welded steel frame
- Reinforced upper hitch assembly
- Adjustable rear tailgate for soil finishing
- Front deflector shield for operator protection
- Sealed rotor bearings for long service life
- Durable powder-coated finish
Hitch & Mounting
- Hitch type: Category I 3-point hitch
- Quick hitch compatible: Yes
- Adjustable lower hitch points for easier hookup
Performance Features
- Forward rotation aggressively mixes and pulverizes soil
- Creates smooth, level seedbeds in fewer passes
- Adjustable tailgate controls soil finish quality
- Ideal for gardens, food plots, landscaping, and acreage maintenance
- Suitable for previously worked and moderately compacted soils
Common Uses
- Garden preparation
- Food plot establishment
- Lawn renovation
- Seedbed preparation
- Landscaping projects
- Soil amendment incorporation
Key Features
- 74" tilling width
- 25–60 HP tractor range
- Up to 6.5" tilling depth
- 9-flange rotor with 36 tines
- Forward rotation design
- 540 RPM PTO
- Oil-bath chain drive
- Slip clutch protection
- Category I quick hitch compatible
- Approx. 515 lb operating weight
Quick Takeaway
The Land Pride RTA1274 is a 74-inch forward-rotation rotary tiller designed for 25–60 HP tractors. Featuring a 36-tine rotor, oil-bath chain drive, slip-clutch protection, and adjustable tailgate, it delivers excellent soil preparation and seedbed finishing performance for gardens, food plots, landscaping projects, and small farm applications.
