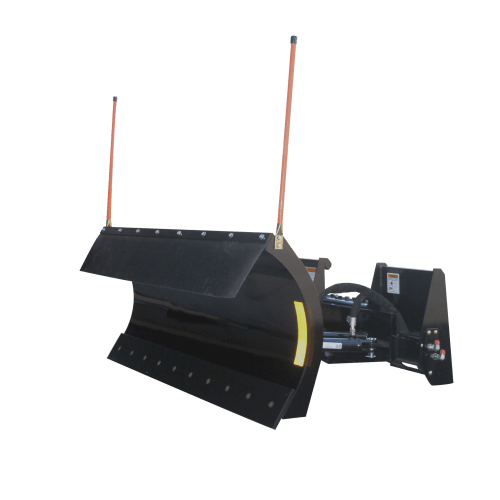

NEW Land Pride STB1584 Snow Trip Blade-84 -Hyd Angle-Fit 30-70 hp Tractor

Snow Trip Blade-84 -Hyd Angle-Fit 30-70 hp Tractor

Land Pride STB1584 Snow Trip Blade Specs (84")

Model: STB1584
Series: STB15 Series Snow Trip Blade
Type: Loader-Mounted Hydraulic Trip Blade (Snow/Light Material)
Application: Snow removal, light grading, and surface cleanup for driveways, parking lots, and commercial/residential properties
Compatibility: Compact & utility tractors 30–70 HP

Dimensions & Weight

• Blade Width (Maximum): 84 in
• Cutting Width @ 30° Angle: ~73 in
• Moldboard Height: 27 in
• Moldboard Thickness: 10-gauge steel
• Approximate Weight: ~648 lb (steel edge)

Blade Movement & Performance

• Hydraulic angle: 30° left / 30° right
• Dual hydraulic angle cylinders (standard)
• Trip-edge spring protection system
• Trip release force: ~1,200 lb
• Side float capability for ground contour following
• Cushion valve system for impact protection

Hydraulic System

• Cylinder size: 2" bore x 6" stroke
• Maximum hydraulic pressure: 3,000 psi
• Requires loader auxiliary hydraulics
• Smooth hydraulic angling for windrowing snow or material

Cutting Edge & Ground Contact

• Replaceable and reversible cutting edge
• Edge size: 1/2" x 6" steel or poly
• AR400 skid shoes for wear resistance
• Adjustable skid shoes to control cutting depth
• Designed to protect paved and gravel surfaces

Mounting & Compatibility

• Universal Skid Steer Quick Attach (SSQA)
• Loader-mounted front implement
• Compatible with Kubota L, MX, and M series tractors
• Designed for quick attachment/detachment

Construction Features

• Reinforced 10-gauge moldboard
• Heavy-duty welded frame construction
• High-visibility blade markers
• Durable powder-coated finish
• Built for frequent commercial use

Performance Features

• Trip-edge absorbs impacts from hidden obstacles
• Hydraulic angling improves snow windrowing efficiency
• Side float allows smooth contour following
• Excellent for snow removal and light grading tasks
• Optional rubber deflector reduces snow spillover

Common Uses

• Driveway snow removal
• Parking lot clearing
• Light grading and leveling
• Farm lane maintenance
• Commercial property snow control
• Gravel and paved surface scraping

Key Features

• 84" working width
• ~73" angled cutting width
• 30–70 HP tractor compatibility
• Hydraulic 30° left/right angling
• Trip-edge spring protection system
• Dual hydraulic cylinders
• 10-gauge reinforced moldboard
• AR400 skid shoes
• Universal SSQA mounting
• Approx. 648 lb operating weight

Quick Takeaway

The Land Pride STB1584 is a heavy-duty 84-inch hydraulic trip blade designed for 30–70 HP tractors. With dual hydraulic angling cylinders, a spring-trip edge system, and a reinforced 10-gauge moldboard, it delivers strong performance for snow removal and light grading while protecting both the machine and surface being worked.
