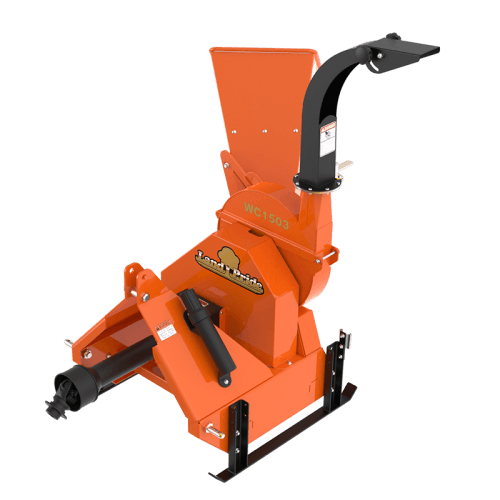

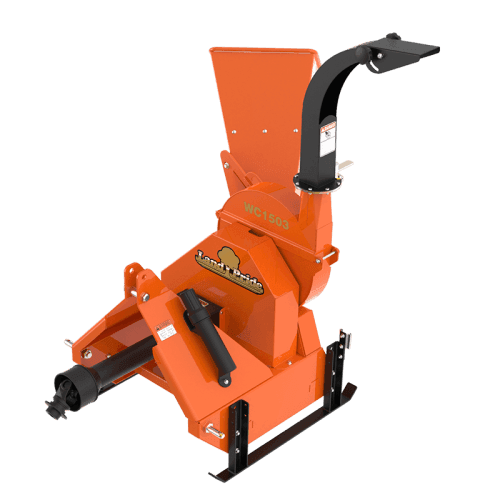

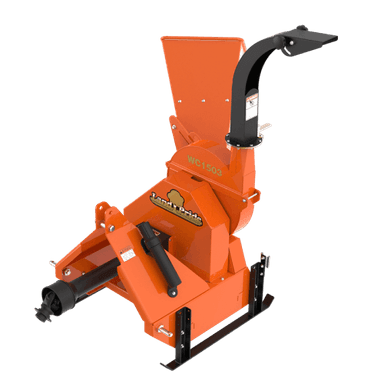

NEW Land Pride WC1503 Wood Chipper-3 Pt-Cat l-3 Cap-12-30 hp

Wood Chipper-3 Pt-Cat l-3 Cap-12-30 hp

Land Pride WC1503 Wood Chipper Specs

Model: WC1503
Series: WC15 Series Wood Chipper
Type: 3-Point Hitch PTO Wood Chipper
Application: Chipping branches for mulch, composting, and debris reduction for landscaping, farms, and property maintenance
Compatibility: Category I 3-Point Hitch tractors (12–30 HP, optimal performance ~25 HP+)

Chipping Capacity & Performance

• Maximum Chipping Capacity: Up to 3 in (7.6 cm) diameter
• Self-feeding design pulls material into chipper
• Knife speed: ~9,090 FPM (feet per minute)
• Rotor speed: ~1,984 RPM
• Efficient for limbs, branches, and brush processing

Dimensions & Weight

• Feed opening (infeed chute): 14 in x 15 in
• Chipper throat opening: 6 in x 3 in
• Discharge chute opening: 3.25 in square
• Feed height: ~35 in (adjustable skid positions vary)
• Approximate weight: ~370–378 lb

Tractor Requirements

• PTO speed: 540 RPM
• Horsepower range: 12–30 HP (25 HP minimum for full capacity use)
• Hitch type: Category I 3-point hitch
• Quick Hitch compatible: Yes

Cutting System

• Number of knives: 2 reversible hardened steel knives
• Knife size: 2.5 in x 2 in x 1/4 in
• Each knife has two cutting edges (rotatable for longer life)
• Hardened steel construction for durability and sharp cutting performance

Drive System

• Driveline category: Cat. II shear-bolt protected PTO driveline
• Drive system: Dual B-section belts
• Spring-loaded belt tensioning system
• Heavy-duty pulley system for smooth power transfer

Chute & Feed System

• Self-feeding system reduces operator effort
• Adjustable 270° rotating discharge chute
• Adjustable deflector for chip direction and distance control
• Built-in chute rotation stops for operator safety

Construction Features

• Heavy-duty steel frame and rotor housing (3/16" thickness)
• Reinforced upper hitch plate (1/4")
• Adjustable support stands for proper driveline alignment
• Powder-coated finish for corrosion resistance
• Designed for long-term farm and property use

Performance Features

• Turns brush and branches into usable mulch quickly
• Reduces yard waste volume for easier disposal or composting
• Ideal for storm cleanup, pruning debris, and land maintenance
• Stable PTO-powered operation for consistent chip quality
• Compact design suitable for subcompact tractors

Common Uses

• Tree limb and brush chipping
• Landscaping cleanup
• Orchard maintenance
• Farm and acreage debris management
• Compost and mulch production
• Storm damage cleanup

Key Features

• 3" max chipping capacity
• 12–30 HP tractor requirement
• 540 PTO operation
• 2 reversible hardened steel knives
• Self-feeding chipper design
• 270° adjustable discharge chute
• ~370–378 lb operating weight
• Quick Hitch compatible
• Cat. I 3-point hitch mount

Quick Takeaway

The Land Pride WC1503 is a compact 3-point PTO wood chipper designed for tractors in the 12–30 HP range. With a 3-inch chipping capacity, reversible hardened steel knives, self-feeding operation, and a 270° adjustable discharge chute, it is ideal for efficiently processing branches and brush into mulch for residential, farm, and landscaping use.
