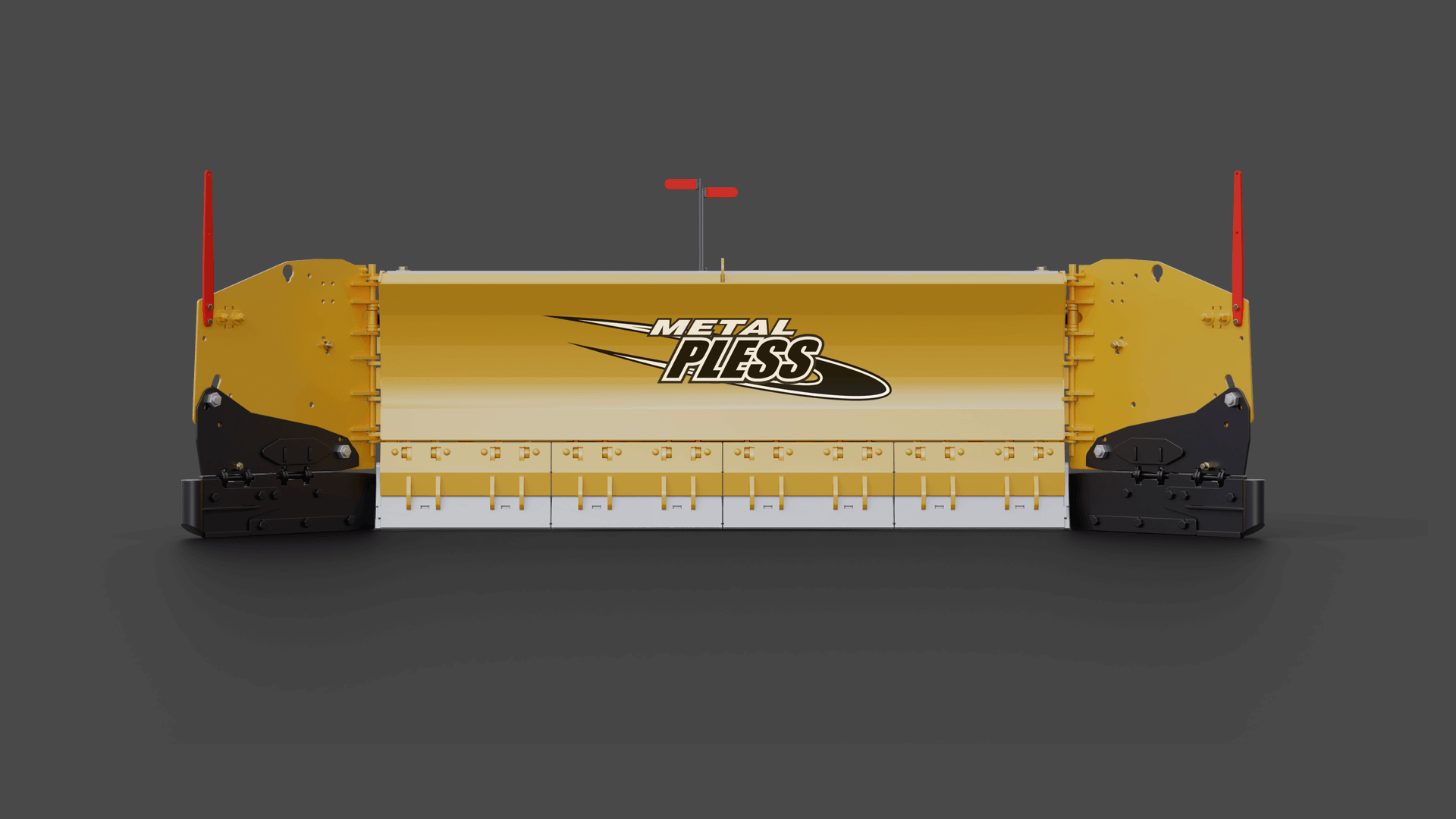

NEW Metal Pless PlowMaxx PLSM0830-13LEL 8' Center Moldboard-(2) 30 Wing-30 Tall-LiveEdge

8' Center Moldboard-(2) 30 Wing-30 Tall-LiveEdge

Metal Pless PlowMaxx PLSM0830-13LEL Snow Plow Specs

Model: Metal Pless PLSM0830-13LEL
Series: PlowMaxx LiveEdge® Snow Plow
Configuration: 8' center moldboard with (2) 30" hydraulic wings
Type: Expandable wing snow plow
Application: Commercial, municipal, agricultural, and contractor snow-removal operations
Compatibility: Loaders, tractors, and tool carriers (mount dependent)

Dimensions

• Center moldboard width: 8 ft (96 in)
• Wing size: 30 in per wing
• Maximum clearing width: 13 ft (156 in)
• Moldboard height: 30 in
• Approximate overall depth: 40–60 in
• Approximate operating weight: 1,500–2,500 lb (depending on mount and options)

Moldboard Specifications

• 8' center moldboard
• Dual hydraulic wing design
• Expandable clearing width up to 13'
• 30" tall moldboard profile
• Designed for snow containment, windrowing, and wide-area clearing
• Heavy-duty commercial snow plow construction

LiveEdge® Cutting System

• Metal Pless LiveEdge® segmented cutting-edge technology
• Independent cutting-edge sections follow uneven surfaces
• Superior scraping performance on pavement and concrete
• Reduces shock loads from curbs, obstacles, and surface irregularities
• Helps extend cutting-edge service life
• Improves snow and ice removal compared to rigid-edge plows

Wing Features

• Two hydraulic wings, 30" each
• Independent wing adjustment capability
• Multiple plowing configurations:
  • Straight blade
  • Scoop/containment mode
  • Windrow mode
  • Expanded-width clearing mode
• Increased snow-carrying capacity with wings forward
• Improved productivity in large snow-removal areas

Hydraulic Features

• Hydraulic wing adjustment
• In-cab operator wing control
• Protected hydraulic hose routing
• Fast wing positioning for changing snow conditions
• Designed for loader and tractor hydraulic systems

Construction Features

• Heavy-duty welded steel moldboard
• Reinforced wing pivot assemblies
• Commercial-grade structural frame
• Heavy-wall steel construction
• Reinforced push structure
• Corrosion-resistant finish
• Built for professional winter-maintenance fleets

Performance Design

• Expands from compact transport width to 13' clearing width
• Excellent snow containment in scoop position
• Wide clearing path reduces required passes
• Designed for parking lots, roads, and commercial properties
• Effective in both light and heavy snow conditions
• High-productivity snow-moving capability

Compatibility

Designed for:

• Wheel loaders
• Utility tractors
• Municipal snow-removal equipment
• Tool carriers
• Commercial snow-removal fleets
• Custom quick-coupler mounting systems

Common Uses

• Commercial parking lots
• Municipal road maintenance
• Industrial facilities
• Farm and acreage snow removal
• Contractor snow operations
• Large-property winter maintenance

Key Features

• 8' center moldboard
• Two 30" hydraulic wings
• 13' maximum clearing width
• 30" moldboard height
• LiveEdge® segmented cutting-edge system
• Scoop, windrow, and straight-blade operation
• Heavy-duty commercial construction

Quick Takeaway

The Metal Pless PlowMaxx PLSM0830-13LEL is a high-efficiency expandable snow plow that combines an 8-foot center moldboard with dual 30-inch hydraulic wings for up to 13 feet of clearing width. Its LiveEdge® technology delivers excellent scraping performance, while the adjustable wing system provides superior snow containment and productivity for commercial, municipal, and agricultural snow-removal operations.
