Trailer-FDGH DT 25+5-Gooseneck-D/O-Elec/Hyd Brakes

Moritz FDGH DT 25+5 Gooseneck Trailer Specs

Model Information

• Model: FDGH DT 25+5
• Manufacturer: Moritz International
• Type: Deck-Over Gooseneck Equipment Trailer
• Configuration: 25' Main Deck + 5' Dovetail
• Hitch Type: Gooseneck
• Brake Type: Electric/Hydraulic Brakes
• Trailer Style: Deck-Over Equipment Hauler

Capacity & Ratings

• GVWR: 24,000–25,900 lb (depending on axle configuration)
• Payload Capacity: Approximately 18,000–20,000 lb
• Axle Rating: Dual 12,000 lb axles
• Number of Axles: 2
• Heavy-duty commercial hauling design

Dimensions

• Main Deck Length: 25 ft
• Dovetail Length: 5 ft
• Total Deck Length: 30 ft
• Deck Width: 102 in
• Deck Height: Approximately 34–36 in
• Wide deck-over design for equipment transport

Trailer Weight

• Empty Weight: Approximately 5,500–6,500 lb
• Weight varies based on options and ramp configuration

Frame Construction

• Heavy-duty fabricated steel frame
• Full-length I-beam main frame
• Reinforced crossmembers
• Deck-over construction
• Durable powder-coat finish

Deck Features

• Pressure-treated wood deck
• Full-width loading surface
• Rub rail and stake pockets
• Multiple tie-down locations
• Heavy-duty dovetail for loading equipment

Suspension & Running Gear

• Tandem axle configuration
• Heavy-duty slipper spring suspension
• Oil-bath axle hubs
• Commercial-grade running gear
• Highway-rated tires

Brake System

• Electric-over-Hydraulic (EOH) brakes
• Brakes on both axles
• Breakaway safety system
• Sealed wiring harness
• DOT-compliant lighting package

Tires & Wheels

• Heavy-duty 17.5" commercial tires
• Dual tandem axle configuration
• 8-lug steel wheels
• Highway-speed rated tires

Hitch & Tongue

• Adjustable gooseneck coupler
• Heavy-duty gooseneck frame
• Safety chains included
• Dual-speed landing gear jacks
• Reinforced neck structure

Loading Features

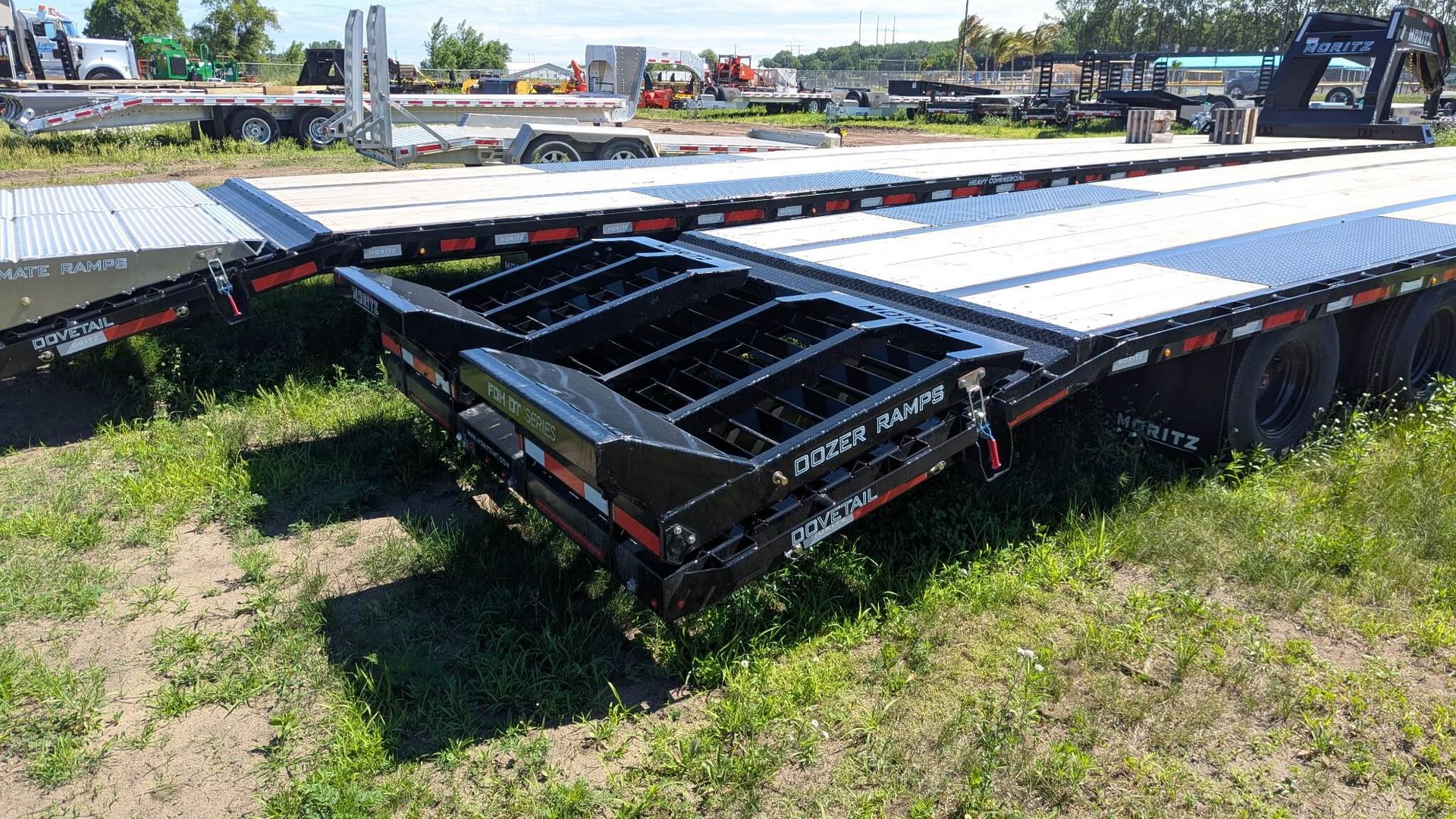

• 5' self-cleaning dovetail
• Heavy-duty flip-over ramps
• Spring-assisted ramp operation
• Full-width equipment loading capability
• Suitable for tracked and wheeled equipment

Ideal Applications

• Skid steers
• Compact track loaders
• Mini excavators
• Full-size excavators
• Tractors
• Telehandlers
• Construction equipment
• Agricultural equipment

Safety Features

• Electric-over-hydraulic braking system
• Breakaway battery kit
• DOT-approved LED lighting
• Reflective conspicuity tape
• Heavy-duty safety chains
• Secure tie-down system

Key Features

• 25' deck plus 5' dovetail
• Gooseneck hitch design
• Deck-over configuration
• 24,000–25,900 lb GVWR
• Tandem 12K axles
• Electric-over-hydraulic brakes
• Pressure-treated wood deck
• Full-width loading area
• Heavy-duty I-beam frame
• Commercial-grade construction

Quick Takeaway

The Moritz FDGH DT 25+5 is a heavy-duty deck-over gooseneck trailer built for hauling large construction and agricultural equipment. Featuring a 25-foot deck, 5-foot dovetail, tandem 12K axles, electric-over-hydraulic brakes, and a rugged I-beam frame, it delivers the capacity, durability, and towing stability needed for demanding commercial hauling applications.
