NEW Virnig BSRGV66-O Grapple-V40 Steel Open Skeleton Rock-SSL/CTL

Grapple-V40 Steel-66 Open Skeleton Rock-SSL/CTL

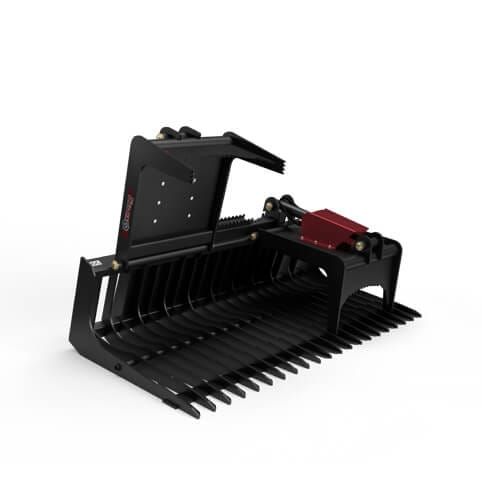

Virnig BSRGV66-O V40 Skeleton Rock Grapple (Open-Side) Specs

Model: Virnig BSRGV66-O
Series: V40 Skeleton Rock Grapple (Open-Side configuration)
Type: Open skeleton rock / brush grapple
Application: Rock handling, brush clearing, land clearing, storm cleanup, and debris separation

Grapple Specifications

• Overall width: 67.6 in
• Overall height: 26.5 in
• Bucket height: 20.0 in
• Overall depth: 39.9 in
• Number of tines (with sides): 21
• Tine spacing: 2.9 in
• Tine thickness: 0.375 in
• Grapple jaw opening: 35.2 in
• Approximate weight: ~925 lb
• Recommended loader capacity: Less than 2,400 lb ROC

Construction Features

• One-piece formed steel tines for maximum strength
• Heavy-duty Grade 50 steel tine and side plate construction
• Open skeleton / open-side design allows dirt and fines to fall through
• Rock dam and notch near tine tips help secure irregular rock loads
• Serrated / reinforced tine profile improves grip on material
• NitroSteel® cylinder rods for corrosion resistance
• Teflon® coated bushings on pivot points reduce wear and maintenance

Hydraulic System

• Cylinder bore/stroke: 2.0 in × 8.375 in
• Cylinder pin diameter: 1.25 in
• Hinge pin diameter: 1.25 in
• Dual-cylinder grapple clamp system for even pressure distribution

Performance Design

• Open design improves material separation (rocks stay, dirt falls out)
• Optimized for uneven and heavy debris loads
• Strong clamping force for logs, stumps, and rock piles
• Compact width improves maneuverability in tight areas
• Built for high-abuse land clearing and cleanup work

Compatibility

Designed for:

• Skid steer loaders
• Compact track loaders
• Universal quick attach systems
• Machines under ~2,400 lb rated operating capacity class

Common Uses

• Rock and boulder handling
• Brush and tree clearing
• Fence line cleanup
• Storm debris removal
• Land and pasture clearing
• Light demolition cleanup

Key Features

• 66" class open skeleton rock grapple
• Tight 2.9" tine spacing for rock retention
• Heavy-duty 3/8" steel tines
• Open-side design for cleaner material separation
• Industrial-grade hydraulic grapple system

Quick Takeaway

The Virnig BSRGV66-O is built for:

• Rock-heavy land clearing where dirt separation matters
• Brush and debris cleanup with minimal material carryover
• Tight-area maneuverability with strong clamp force
• Durable V40 skid steer and CTL operation in demanding conditions
