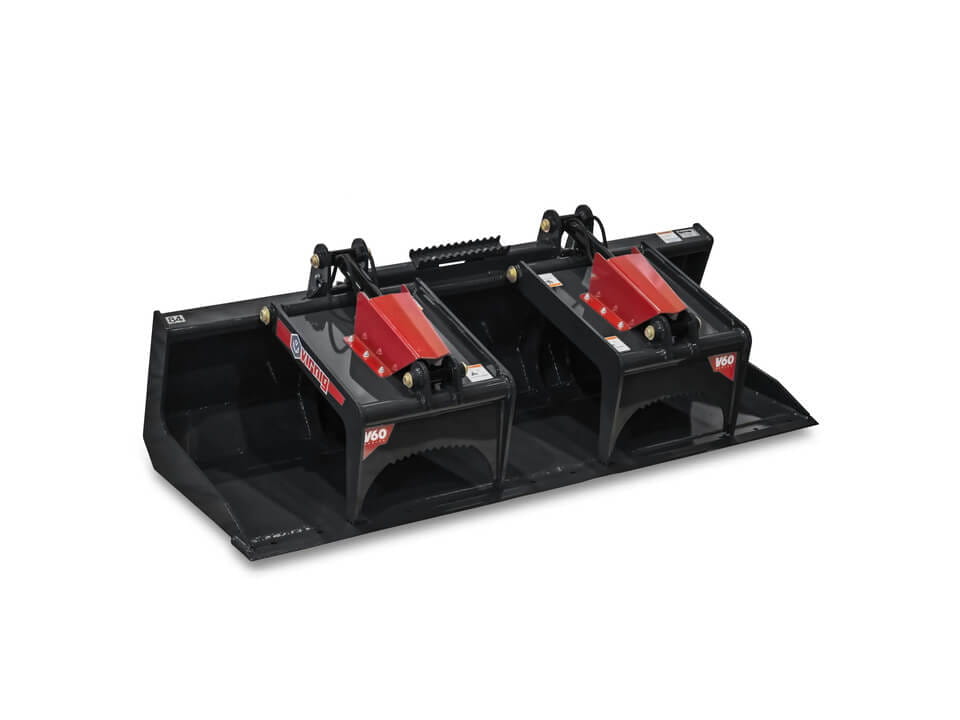

NEW Virnig ISG72 V60 Scrap Grapple

VIRNIG 72 V60 SCRAP GRAPPLE

Virnig ISG72 V60 Scrap Grapple Specs

Model: Virnig ISG72
Series: V60 Scrap Grapple (Industrial Solid Bottom Grapple)
Type: Solid-bottom grapple bucket (scrap / debris handling)
Application: Construction debris, demolition cleanup, bulky material handling, rock and mixed waste
Compatibility: Skid steer loaders (SSL) and compact track loaders (CTL)

Grapple Specifications

• Overall width: 73.5 in
• Overall height: 29.0 in (overall) / 22.5 in (bucket)
• Overall depth: 35.5 in
• Number of vertical structural braces: 4
• Wear bars under bucket: 1/2" x 4" (4 bars)
• Grapple jaw opening: 38.8 in
• Cylinder bore/stroke: 2.0 in × 8.375 in
• Cylinder pin diameter: 1.25 in
• Hinge pin diameter: 1.563 in
• Approximate weight: ~1,080 lb
• Recommended loader capacity: Greater than 2,400 lb ROC

Construction Features

• Heavy-duty V60 industrial-grade frame construction
• Solid bottom bucket design for scooping loose and bulky debris
• Extra internal brace plate for added structural strength
• 1/2" vertical internal bucket braces for rigidity
• 3/4" x 6" weld-on cutting edge
• NitroSteel® hydraulic cylinder rods resist corrosion and wear
• Teflon® coated bushings at all pivot points for reduced maintenance
• Standard cylinder guards for hydraulic protection

Hydraulic System

• Dual hydraulic cylinders for independent clamping force
• High-strength pinned pivot system for durability
• Hydraulic design optimized for heavy scrap handling
• Protected hose routing to reduce damage risk

Performance Design

• Solid-bottom bucket allows efficient scooping of loose and bulky material
• Strong clamping grapple holds irregular scrap securely
• Designed for heavy-duty demolition and cleanup work
• Reinforced structure supports high-impact loading
• Excellent for loading trucks, dumpsters, and stockpiles

Compatibility

Designed for:

• Skid steer loaders
• Compact track loaders
• Universal quick attach systems
• Machines rated above 2,400 lb ROC

Common Uses

• Demolition and construction cleanup
• Scrap and waste handling
• Rock and rubble loading
• Storm debris removal
• Industrial material sorting
• Site cleanup and hauling

Key Features

• 73.5" V60 heavy-duty scrap grapple width
• Solid-bottom bucket for scooping loose material
• Dual-cylinder hydraulic grapple system
• Reinforced internal brace structure (4 vertical braces)
• 3/4" heavy-duty weld-on cutting edge
• Built for extreme-duty commercial use

Quick Takeaway

The Virnig ISG72 V60 Scrap Grapple is built for:

• Heavy demolition and scrap handling
• Scooping and securing bulky, loose debris
• High-strength industrial skid steer operation
• Maximum durability in abusive jobsite conditions
