NEW Virnig PFHG4840 Hex Guard Fork Frame w/48" Tines-4000 lb Cap

VIRNIG PFHG4840-LANO PALLET FORKS, 4000 LB CAP

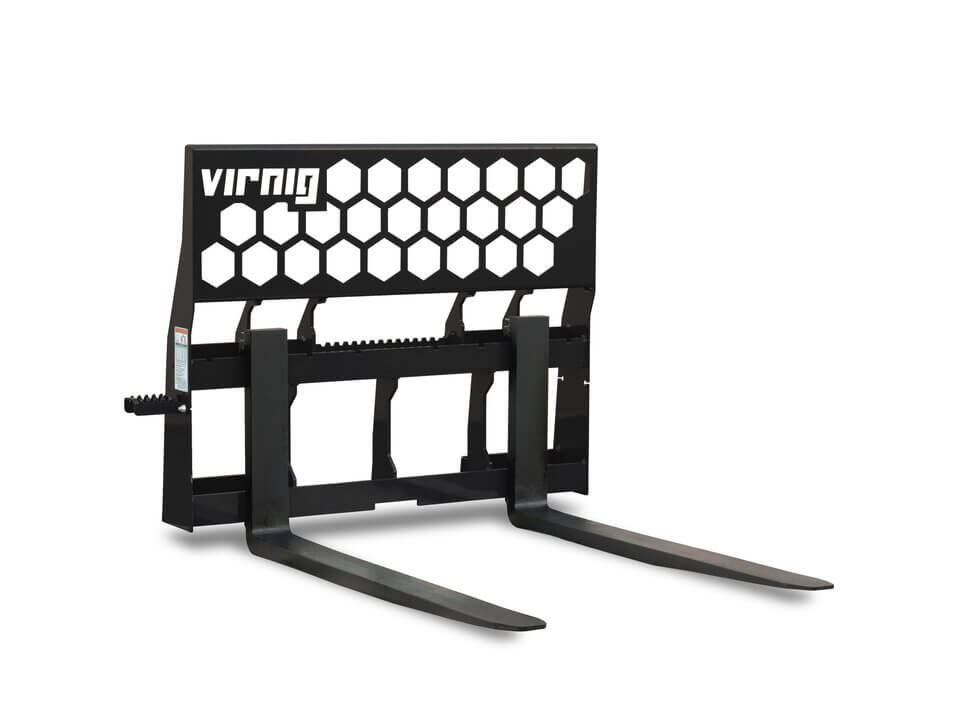

Virnig PFHG4840 Hex Guard Fork Frame Specs

Model: Virnig PFHG4840
Series: Hex Guard Rail Pallet Fork Frame
Type: Heavy-duty skid steer pallet fork frame
Application: Pallet handling, lumber, construction materials, and general material transport
Compatibility: Skid steer loaders (SSL) and compact track loaders (CTL)

Fork Specifications

• Fork tine length: 48.0 in
• Fork tine width: 4.0 in
• Fork tine thickness: 1.375 in
• Rated capacity: 4,000 lb
• Tine spacing range: 8.8 in – 40.9 in
• Approximate weight: ~365 lb
• Frame height: 37.0 in
• Frame width: ~45.5 in (frame) / ~50.5 in (overall with step)

Construction Features

• Heavy-duty 3/4 in beveled rail design
• 3/16 in Hex Guard (brickguard) protection system
• Brickguard sits flush with tines for improved load stability
• Adjustable ITA Class II forged steel fork tines
• Bolt-on step can be installed on either side
• Centered bracing on quick-attach frame for easier hookup
• Built for high durability in daily industrial use

Performance Design

• High-visibility fork carriage improves operator control
• Smooth rail adjustment for fast tine positioning
• Designed for stable lifting of pallets and uneven loads
• Reinforced frame reduces flex under heavy loads
• Balanced design for skid steer and CTL handling

Compatibility

Designed for:

• Skid steer loaders
• Compact track loaders
• Universal quick attach systems
• Machines rated for ~4,000 lb fork capacity class

Common Uses

• Pallet handling
• Construction material transport
• Lumber and pipe movement
• Feed, seed, and agricultural supplies
• Warehouse and jobsite loading/unloading

Key Features

• 48" forged ITA Class II fork tines
• 4,000 lb rated capacity
• Hex Guard protective brickguard system
• Adjustable tine spacing (wide range)
• Heavy-duty rail-style fork carriage
• Bolt-on step for operator access

Quick Takeaway

The Virnig PFHG4840 Hex Guard Fork Frame is built for:

• Reliable 4,000 lb pallet handling
• Heavy-duty skid steer and CTL material transport
• Fast adjustable fork spacing for varied loads
• Durable construction for construction and industrial use
