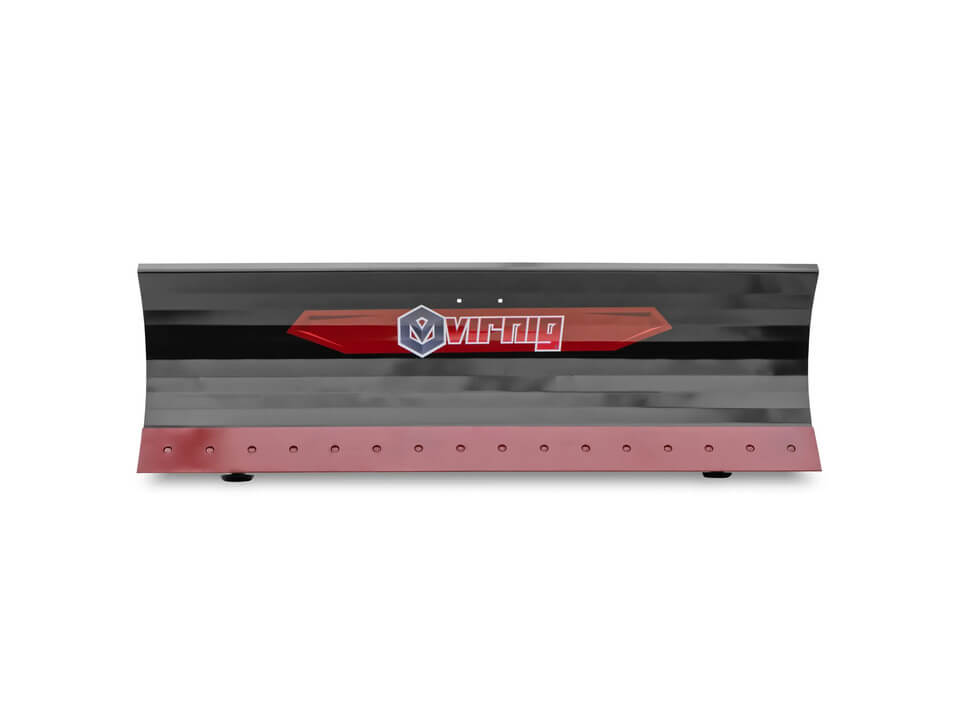

NEW Virnig SBS84-LD V50 Hydraulic Angle Snow Blade-Rev Steel Edge

VIRNIG 84 V50 HYD ANGLE SNOW BLADE

Virnig SBS84-LD V50 Hydraulic Angle Snow Blade Specs

Model: Virnig SBS84-LD
Series: V50 Light-Duty Angle Snow Blade
Type: Hydraulic angle snow blade
Application: Residential and light commercial snow removal, parking lots, sidewalks, and light material pushing

Blade Specifications

• Overall width (straight): 86 in
• Width at full angle: 74 in
• Blade height: ~29–31 in (V50 LD profile)
• Overall depth (straight): 37.1 in
• Blade angle: ±30° hydraulic angle
• Blade oscillation: ±4°
• Moldboard thickness: 0.19 in
• Cutting edge: 5/8" × 8" reversible bolt-on steel edge

Hydraulic System

• One-cylinder hydraulic angle system
• In-cab hydraulic control for left/right angling
• Cylinder bore/stroke: 2.0 in × 8.375 in
• Cylinder pin diameter: 1.25 in
• Hinge pin diameter: 1.563 in
• NitroSteel® rod for corrosion resistance and durability

Construction Features

• Light-duty V50 commercial frame design
• Reinforced moldboard for snow impact resistance
• Trip-edge protection system for obstacles and curbs
• Oscillating blade frame improves ground contact on uneven surfaces
• Replaceable bolt-on cutting edge for extended wear life
• Hydraulic crossover relief protection (impact safety feature)

Performance Design

• 84" class blade optimized for compact loaders
• Hydraulic angling improves snow windrowing efficiency
• Oscillation helps maintain consistent scraping on uneven pavement
• Trip edge protects machine and operator from damage
• Lightweight design suited for smaller skid steers and CTLs

Weight & Loader Requirements

• Approximate weight: ~900 lb
• Recommended loader capacity: Less than 1,800 lb ROC

Compatibility

Designed for:

• Skid steer loaders
• Compact track loaders
• Standard auxiliary hydraulic systems

Common Uses

• Residential snow removal
• Driveways and sidewalks
• Parking lot maintenance
• Light commercial snow clearing
• Property maintenance and cleanup

Key Features

• 84" wide hydraulic angle blade
• ±30° in-cab hydraulic angling
• ±4° oscillation for uneven terrain
• Trip-edge protection system
• Reversible bolt-on cutting edge
• Lightweight V50 LD design for smaller machines

Quick Takeaway

The Virnig SBS84-LD V50 is built for:

• Efficient residential and light commercial snow removal
• Compact skid steer and CTL operation
• Smooth hydraulic windrowing control
• Durable but lightweight winter performance
