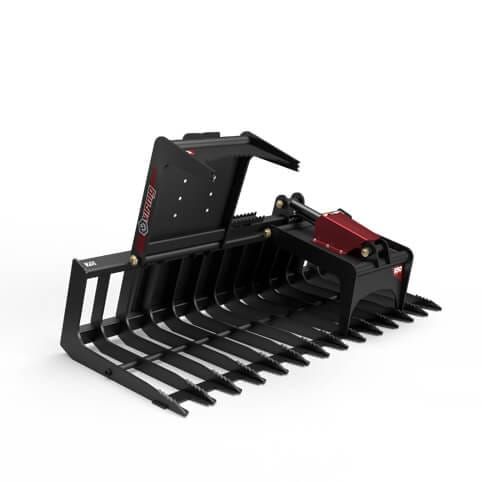

NEW Virnig SGV78 Grapple-V50 Steel-78 Skeleton-Fits SSL/CTL

Grapple-V50 Steel-78 Skeleton-Fits SSL/CTL

Virnig SGV78 V50 Skeleton Grapple Specs

Model: Virnig SGV78
Series: V50 Skeleton Grapple (Dual Independent Jaw Design)
Type: Heavy-duty skeleton rock & brush grapple
Application: Rock handling, brush clearing, land clearing, storm cleanup, demolition debris sorting
Compatibility: Skid steer loaders (SSL) and compact track loaders (CTL)

Grapple Specifications

• Overall width: 79.5 in
• Overall height: 27.8 in (overall) / 21.3 in (bucket)
• Overall depth: 39.9 in
• Number of tines (with sides): 14
• Tine spacing: 5.5 in
• Tine thickness: 0.5 in (Grade 80 steel)
• Grapple jaw opening: 36.1 in
• Approximate weight: ~920 lb
• Recommended loader capacity: Greater than 1,500 lb ROC

Construction Features

• Heavy-duty V50 Grade 80 steel construction
• One-piece formed steel tines for maximum strength and rigidity
• Dual independent jaws for secure gripping of uneven loads
• Open-bottom skeleton design allows dirt and fines to fall through
• Serrated tine design improves grip on rocks, brush, and logs
• NitroSteel® hydraulic cylinder rods for corrosion resistance and durability
• Teflon® coated bushings reduce friction and wear
• Cylinder guards included for added protection

Hydraulic System

• Dual hydraulic cylinders (independent jaw control)
• Cylinder bore/stroke: 2.0 in × 8.375 in
• Cylinder pin diameter: 1.25 in
• Hinge pin diameter: 1.563 in
• High-force clamping system for uneven and bulky loads

Performance Design

• Independent jaws improve control of irregular-shaped material
• 5.5" tine spacing balances rock retention and debris sifting
• Open skeleton frame improves visibility and reduces carried soil
• Strong clamping force for logs, brush, stumps, and rock piles
• Built for efficient land clearing and material sorting

Compatibility

Designed for:

• Skid steer loaders
• Compact track loaders
• Universal quick attach systems
• Machines rated > 1,500 lb ROC

Common Uses

• Rock and boulder handling
• Brush and storm cleanup
• Fence line clearing
• Land clearing and grading prep
• Light demolition cleanup
• Material sorting and piling

Key Features

• 78" V50 skeleton grapple width
• 14-tine rock and debris design
• Dual independent jaw system
• 1/2" Grade 80 steel construction
• Open-bottom design for dirt separation
• Industrial skid steer/CTL durability

Quick Takeaway

The Virnig SGV78 V50 Skeleton Grapple is built for:

• Controlled handling of uneven rock and brush loads
• Efficient dirt separation during cleanup
• High-productivity land clearing on SSL/CTL machines
• Durable commercial-grade grappling performance
