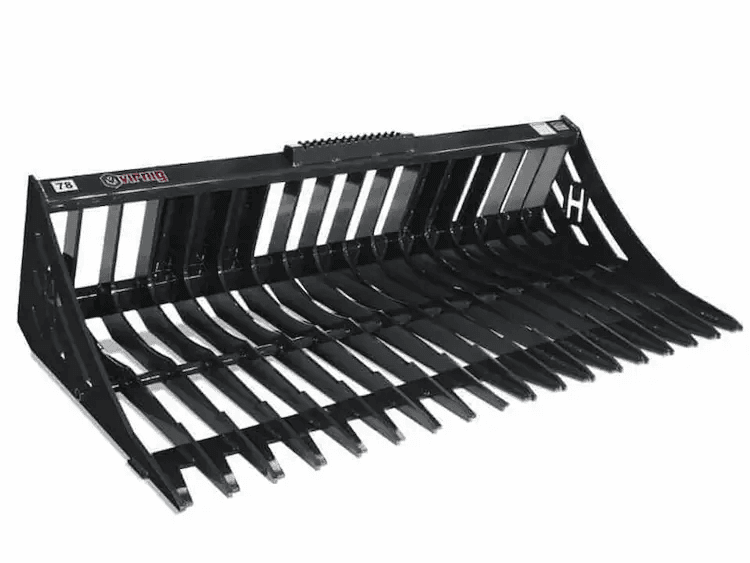

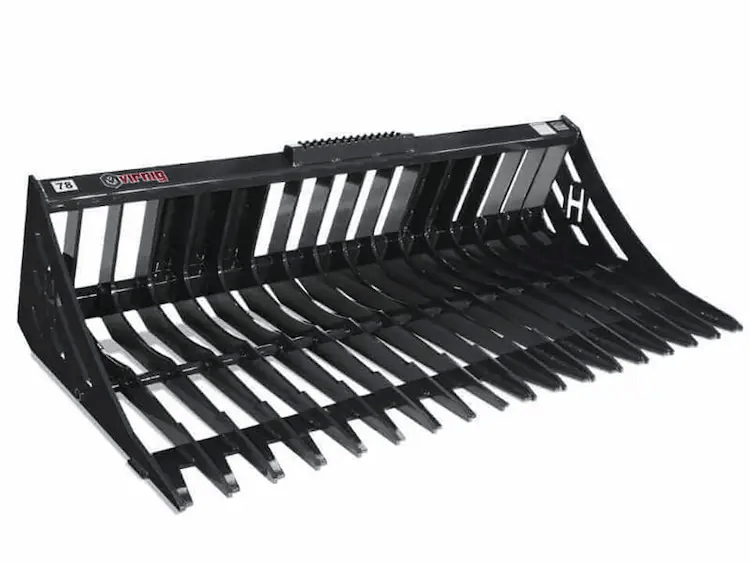

NEW Virnig SRV78 V50 Skeleton Rock Bucket-Fits SSL/CTL

SRV78-V50 Skeleton Rock Bucket-Fits SSL/CTL

Virnig SRV78 V50 Skeleton Rock Bucket Specs

Model: Virnig SRV78
Series: V50 Skeleton Rock Bucket
Type: Skid steer skeleton / rock bucket
Application: Rock removal, debris separation, land clearing, and site cleanup

Bucket Specifications

• Overall width: 80.9 in
• Inside width: 79.2 in
• Overall height: 21.5 in
• Overall depth: 42.9 in
• Inside depth: 37.6 in
• Number of tines (with sides): 25
• Space between tines: 2.9 in
• Tine thickness: 0.375 in
• Tine material: Grade 80 steel plate (80,000 PSI minimum yield strength)

Construction Features

• Every tine constructed from one continuous piece of steel for maximum rigidity
• Fully gusseted tine tips for added strength and reduced bending
• Raised rock dam and tine notch design improve rock retention
• Open bottom and back design allows dirt to sift through efficiently
• Heavy-duty fabricated steel construction
• Reinforced tine structure designed for aggressive ground engagement

Performance Design

• Designed to separate rocks while leaving soil behind
• Open-frame construction improves material screening efficiency
• Deep bucket profile increases capacity and leverage
• Excellent operator visibility during cleanup work
• Suitable for root and brush removal applications

Weight & Loader Requirements

• Approximate weight: 675 lb
• Recommended loader capacity: Greater than 1,500 lb ROC

Compatibility

Designed for:

• Skid steer loaders
• Compact track loaders
• Mid-size construction and landscaping machines

Common Uses

• Rock picking and field cleanup
• Soil sifting and screening
• Brush and root removal
• Construction site cleanup
• Landscaping and land clearing
• Backdragging and debris removal

Key Features

• 78" working width for increased coverage and productivity
• 2.9" tine spacing for efficient dirt separation
• Grade 80 steel tines for added durability
• Rock dam and tine notch improve material retention
• Heavy-duty V50 design for demanding applications

Quick Takeaway

The Virnig SRV78 V50 Skeleton Rock Bucket is built for:

• Efficient rock and debris separation
• Heavy-duty land clearing and cleanup work
• Improved visibility and material screening
• Durable performance on skid steer and compact track loaders
